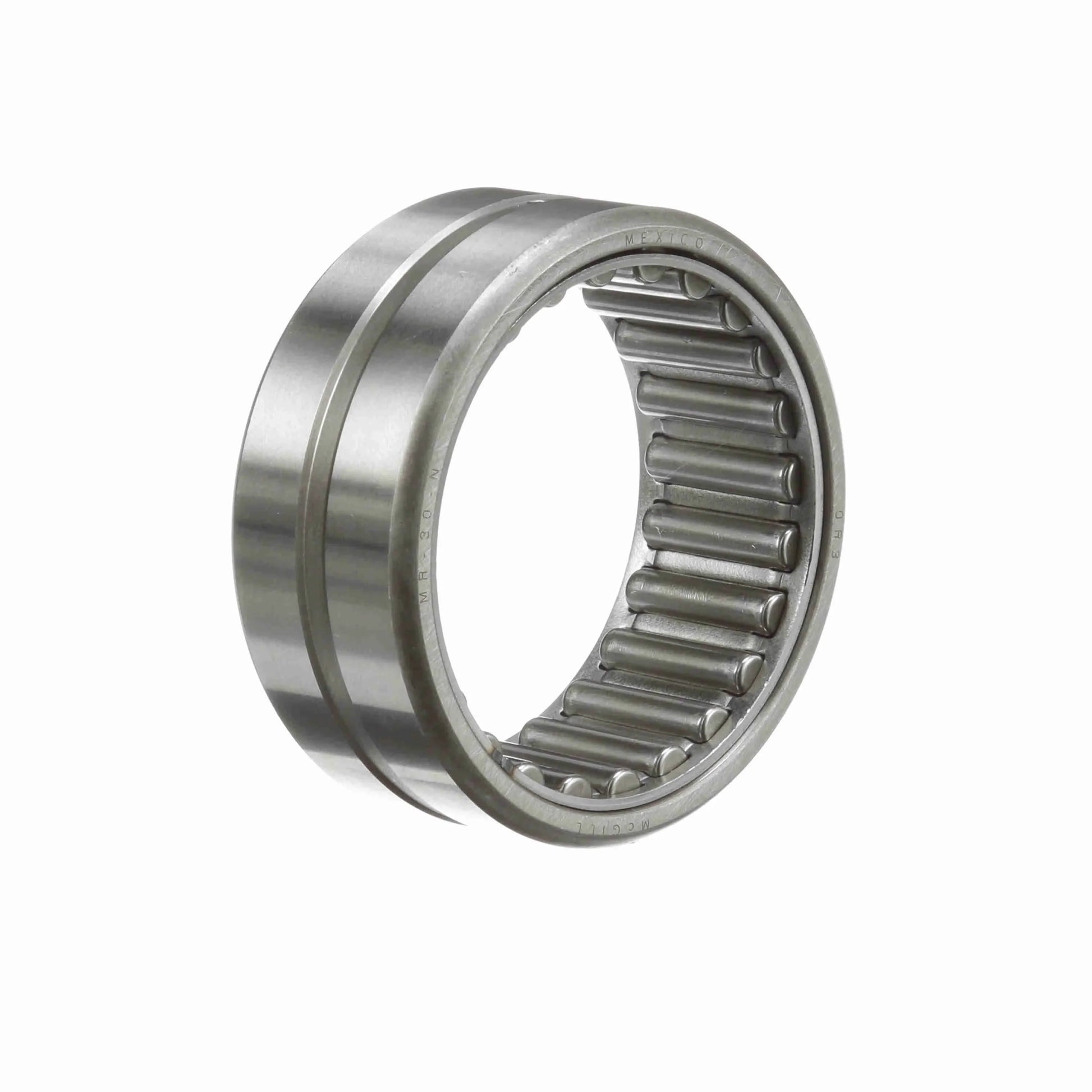

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 30 N
General Specifications
| UPC: | 726166067090 | Weight: | 0.40 LB |
| Packaged Length: | 2.62 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 1.8750 in |
| Outside Diameter - Inch: | 2.4375 in | Housing & Shaft Fillet (in): | 0.06 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Series: | Narrow | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 19,000 lb |
| Dynamic Load Rating: | 11,400 | Full Complement/Caged: | Caged |
| Sealed: | None | Speed (Max) Oil: | 6,400 |
| Speed (Max) Grease: | 3,200 | Duplexing: | No |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Operating Temperature Range: | -20 to 250 °F |
| Standard Met: | ABMA, ISO | Enclosure: | Open |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | Yes |
