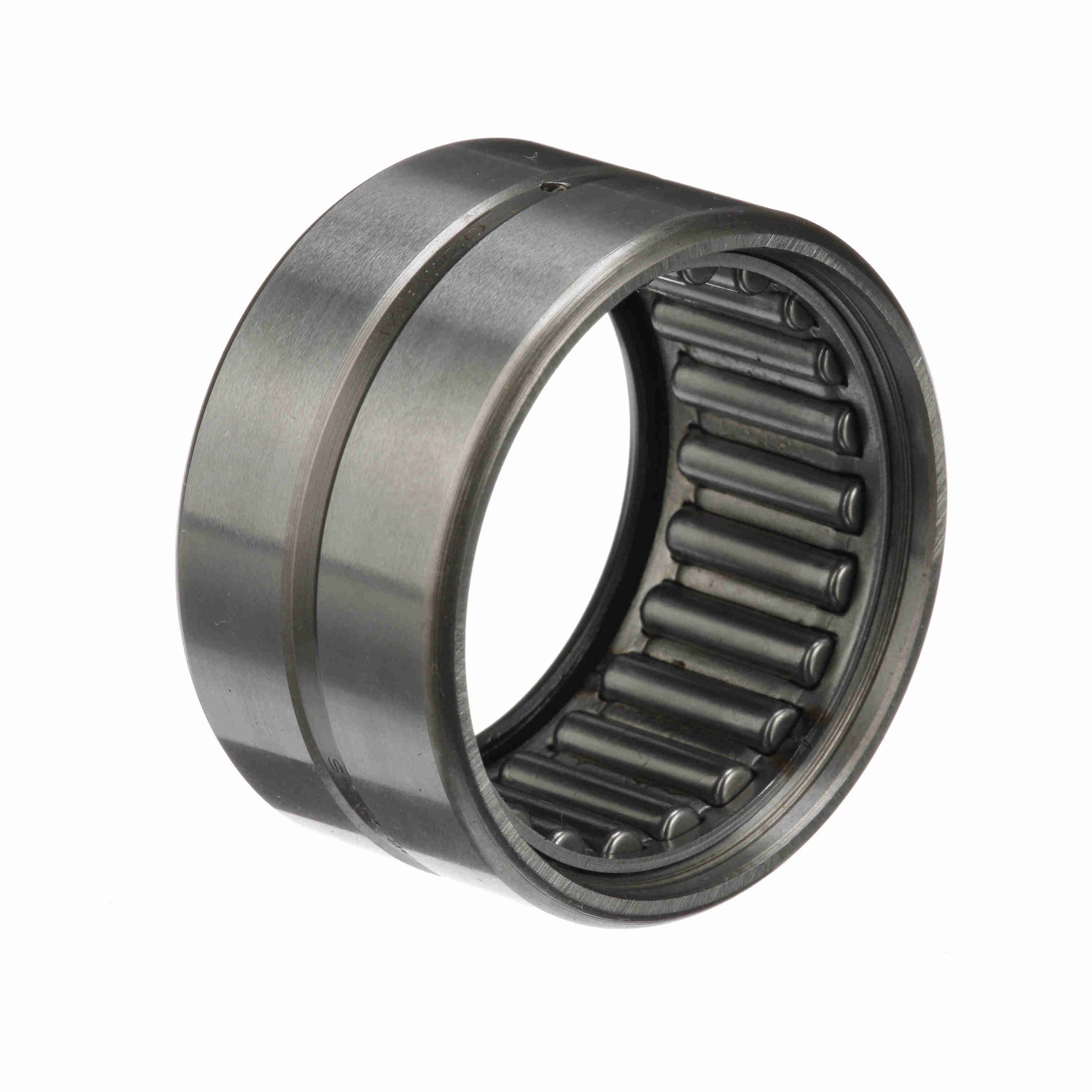

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 28 S
General Specifications
| UPC: | 726166066772 | Weight: | 0.48 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Housing & Shaft Fillet (in): | 0.06 in |
| Hole Diameter: | 0.094 | Bore Size - Inch: | 1.7500 in |
| Outside Diameter - Inch: | 2.3125 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Duplexing: | No | Dynamic Load Rating: | 11,200 |
| Platform: | Cagerol Bearing | Speed (Max) Grease: | 1,500 |
| Sealed: | Sealed - One Side | Speed (Max) Oil: | 3,050 |
| Static Load Rating (lb): | 18,100 lb | Full Complement/Caged: | Caged |
| Related Inner Ring: | MI 23, MI 24 | Precision Rating: | RBEC-1 |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication groove and hole |
| Flanges: | No flange | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Sealed One Side |
| Retainer: | Yes |
