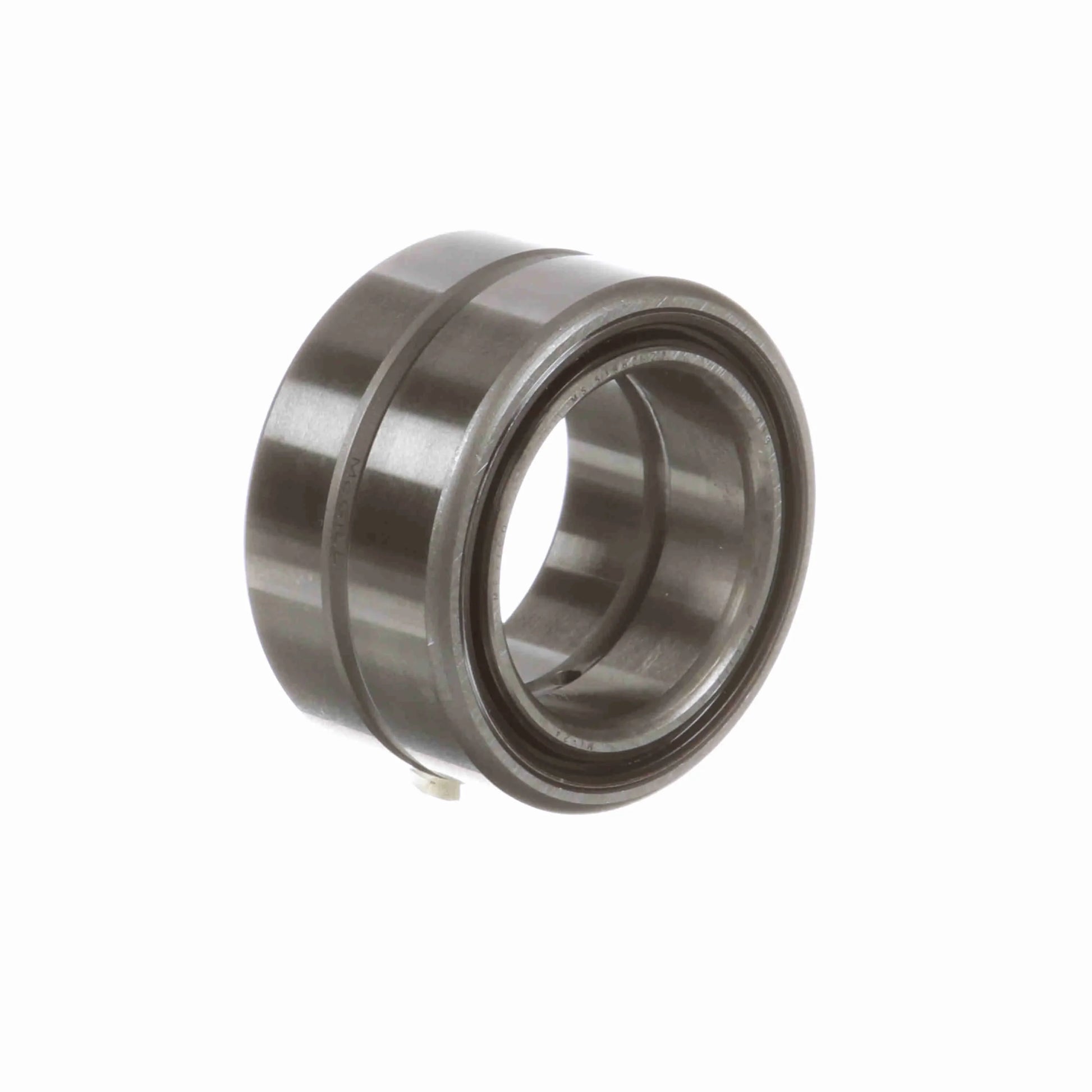

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (with inner) - Sealed - MR 28 RSS/MI 24
General Specifications
| UPC: | 726166066857 | Weight: | 0.67 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Inner Width: | 1.26 | Outer Width: | 1.25 |
| Bore Size - Inch: | 1.5000 in | Housing & Shaft Fillet (in): | 0.06 in |
| Hole Diameter: | 0.094 | Outside Diameter - Inch: | 2.3125 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | Yes | Cage Material: | Steel |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Duplexing: | No | Platform: | Cagerol Bearing |
| Speed (Max) Grease: | 2,180 | Static Load Rating (lb): | 18,100 lb |
| Full Complement/Caged: | Caged | Sealed: | Sealed - Both Sides |
| Dynamic Load Rating: | 11,200 | Operating Temperature Range: | -20F to 250 °F |
| Standard Met: | ABMA;ISO | Precision Rating: | Not Rated |
| Lubrication Hole Type: | Lubrication Groove & Hole | Component Type: | Outer race only |
| Separable: | Inner ring - both sides | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
