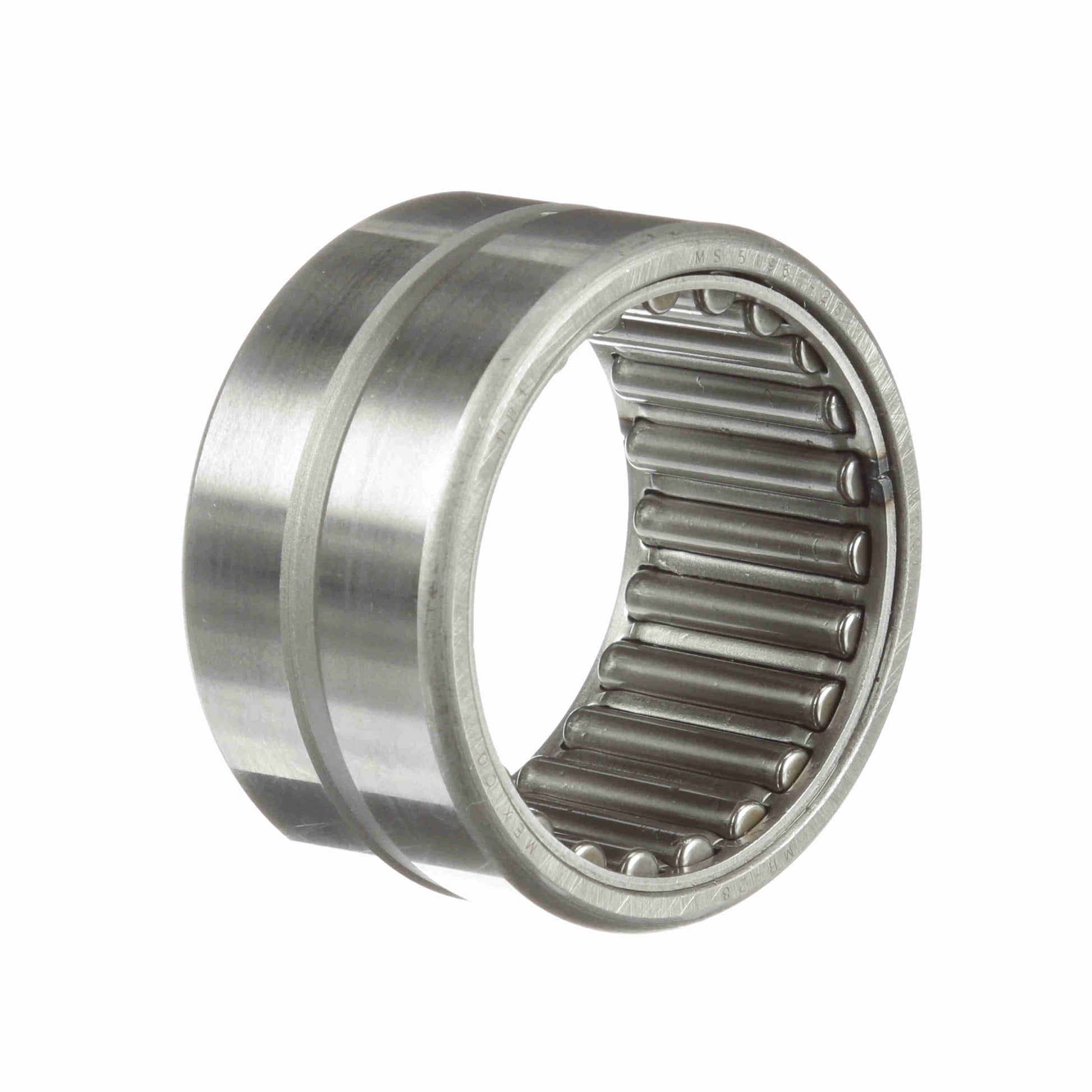

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 28
General Specifications
| UPC: | 726166066680 | Weight: | 0.48 LB |
| Packaged Length: | 2.4 Inches | Packaged Width: | 2.2 Inches |
| Packaged Height: | 1.5 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Housing & Shaft Fillet (in): | 0.06 in |
| Bore Size - Inch: | 1.7500 in | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 2.3125 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Number of Rows: | 1 | Misalignment: | No |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Speed (Max) Grease: | 3,400 | Speed (Max) Oil: | 6,850 |
| Duplexing: | No | Dynamic Load Rating: | 14,100 |
| Sealed: | None | Static Load Rating (lb): | 24,400 lb |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 23, MI 24 |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Operating Temperature Range: | -20 to 250 °F |
| Component Type: | Outer race only | Enclosure: | Open |
| Separable: | Nonseparable | Retainer: | Yes |
