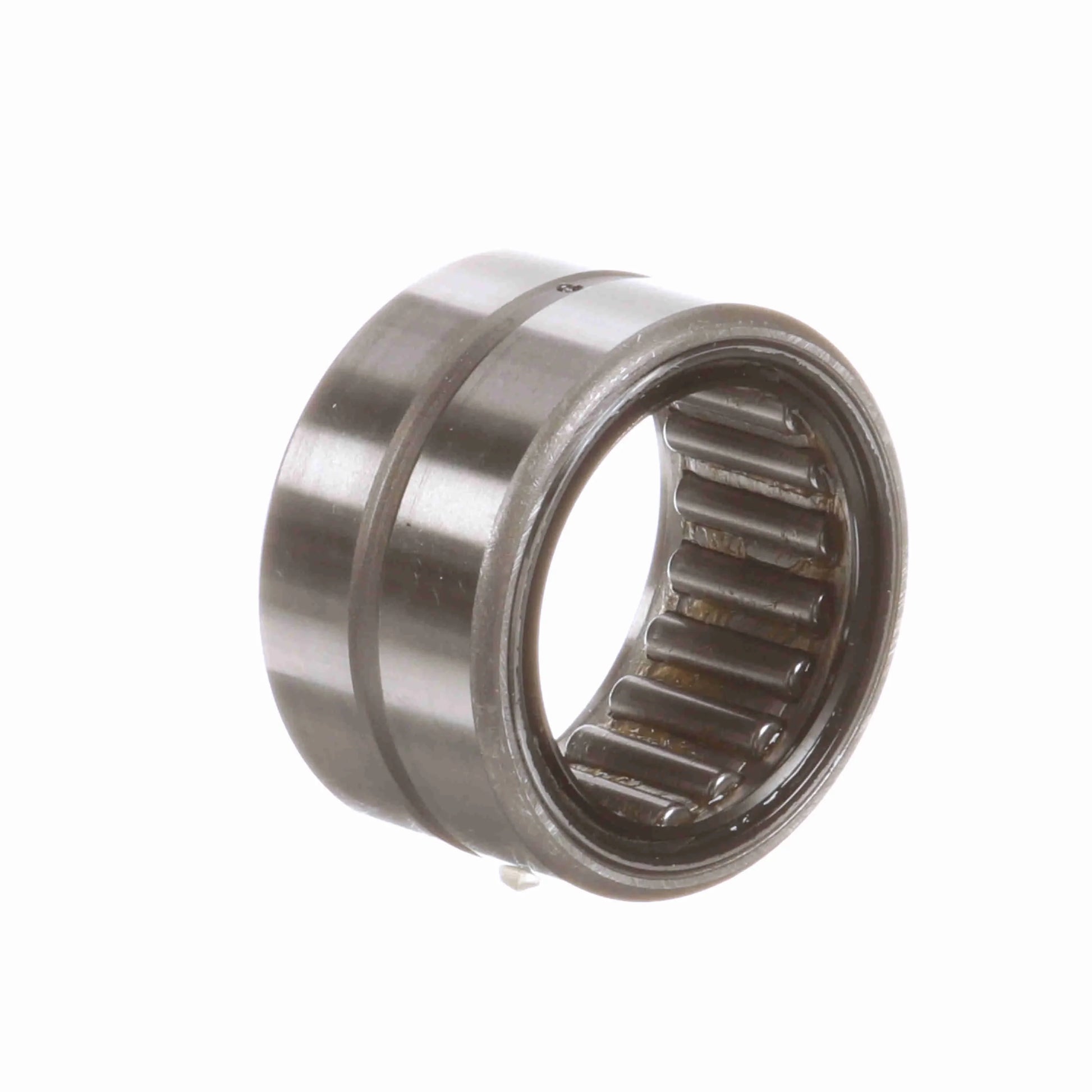

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 26 RS
General Specifications
| UPC: | 726166066598 | Weight: | 0.41 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 1.6250 in |
| Outside Diameter - Inch: | 2.1875 in | Housing & Shaft Fillet (in): | 0.06 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | Steel |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Bore Type: | Straight | Number of Rows: | 1 |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 16,400 lb |
| Speed (Max) Grease: | 2,350 | Sealed: | Sealed - One Side |
| Duplexing: | No | Dynamic Load Rating: | 10,600 |
| Full Complement/Caged: | Caged | Operating Temperature Range: | -20 to 250 °F |
| Standard Met: | ABMA, ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 21 | Separable: | Nonseparable |
| Enclosure: | Sealed One Side | Component Type: | Outer race only |
| Retainer: | Yes |
