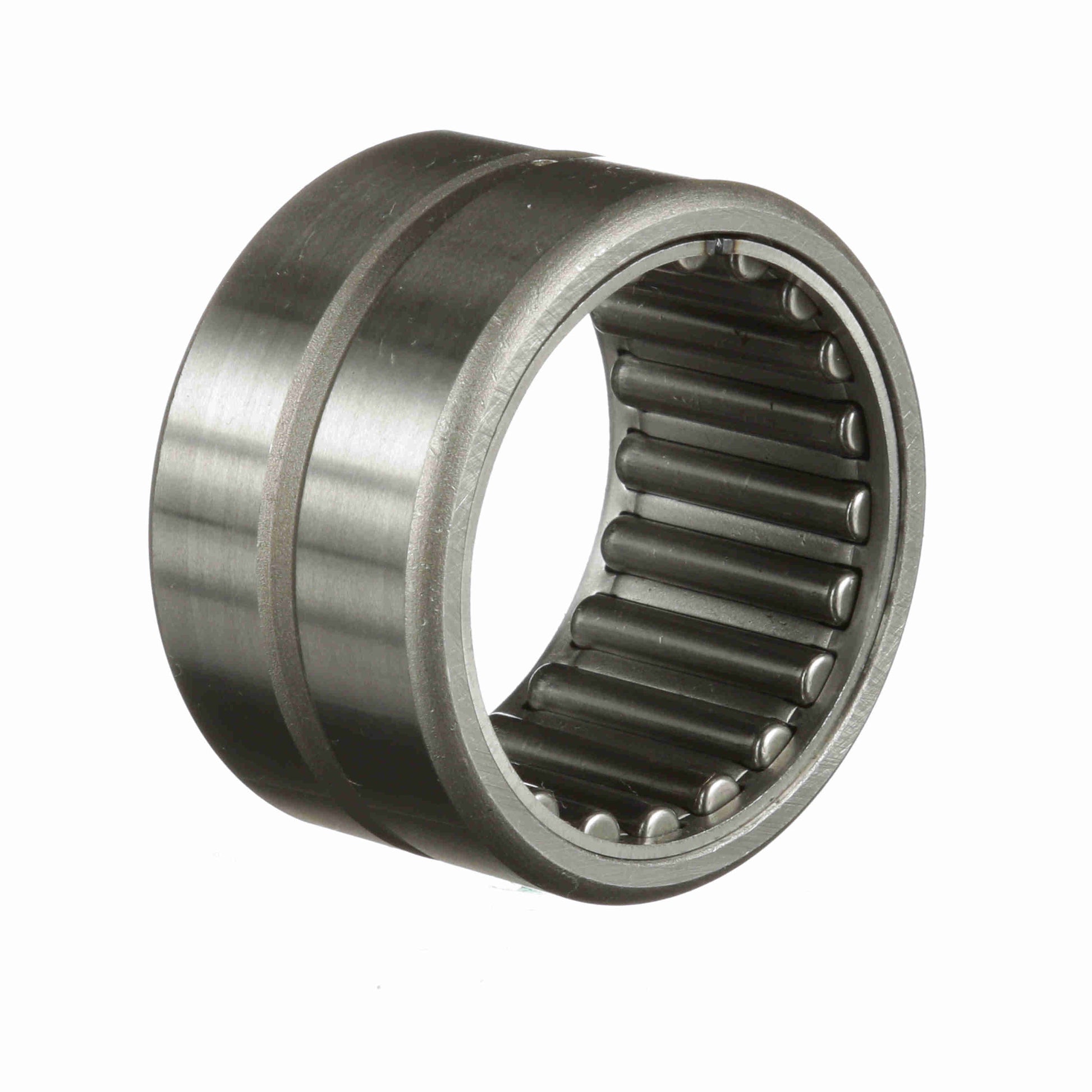

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 26
General Specifications
| UPC: | 726166066512 | Weight: | 0.42 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 2.1875 in |
| Hole Diameter: | 0.094 | Housing & Shaft Fillet (in): | 0.06 in |
| Bore Size - Inch: | 1.6250 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Full Complement/Caged: | Caged | Dynamic Load Rating: | 13,300 |
| Speed (Max) Grease: | 3,700 | Static Load Rating (lb): | 22,100 lb |
| Duplexing: | No | Sealed: | None |
| Speed (Max) Oil: | 7,400 | Platform: | Cagerol Bearing |
| Operating Temperature Range: | -20 to 250 °F | Flanges: | No flange |
| Standard Met: | ABMA, ISO, MS 51961-25 | Related Inner Ring: | MI 22 4S |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
