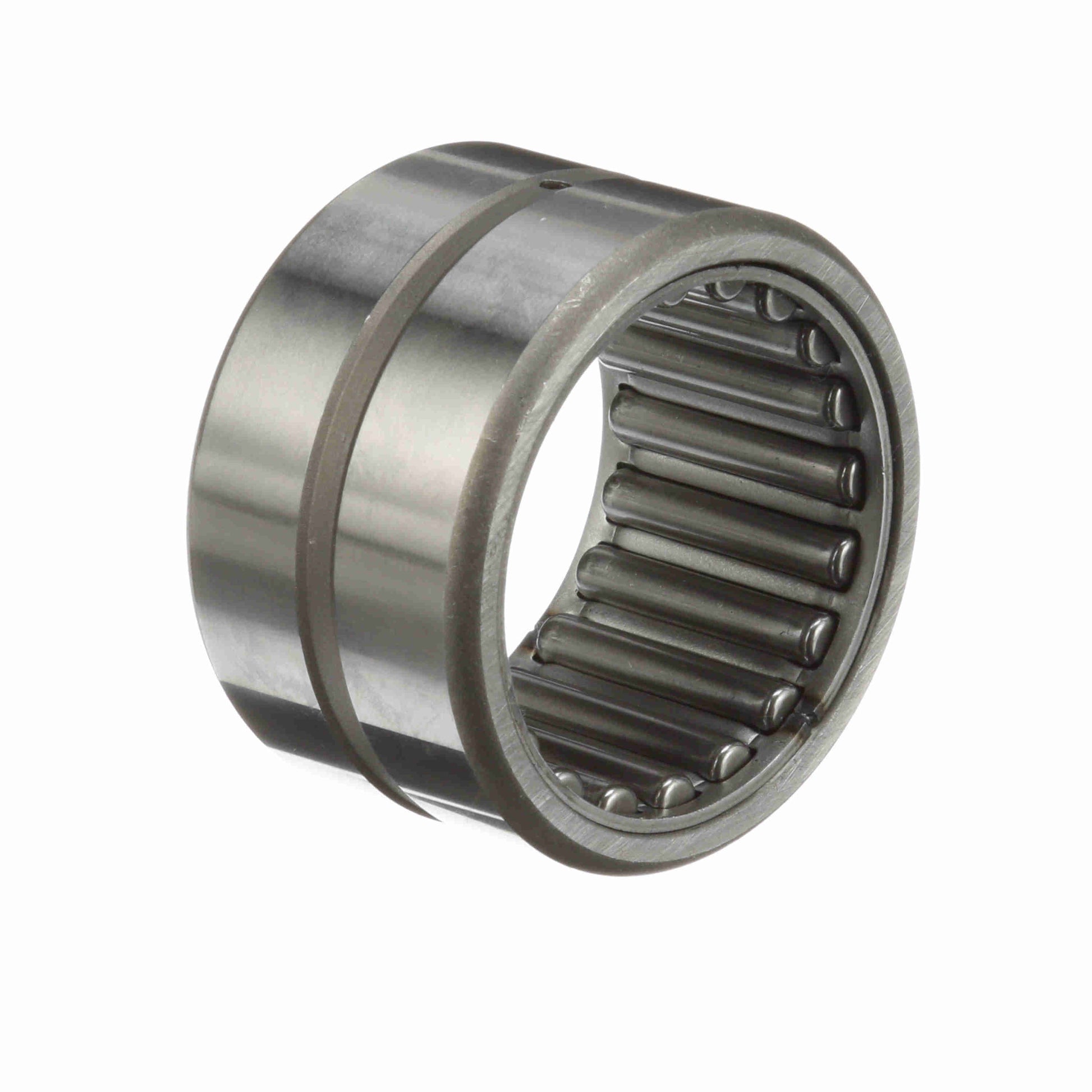

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 24
General Specifications
| UPC: | 726166066253 | Weight: | 0.42 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 2.0625 in |
| Housing & Shaft Fillet (in): | 0.06 in | Bore Size - Inch: | 1.5000 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Radial Clearance: | Normal | Misalignment: | No |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed (Max) Grease: | 4,000 |
| Sealed: | None | Speed (Max) Oil: | 8,000 |
| Static Load Rating (lb): | 20,800 lb | Dynamic Load Rating: | 13,000 |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Standard Met: | ABMA, ISO, MS 51961-22 | Flanges: | No flange |
| Lubrication Hole Type: | Lubrication groove and hole | Separable: | Nonseparable |
| Enclosure: | Open | Component Type: | Outer race only |
| Retainer: | Yes |
