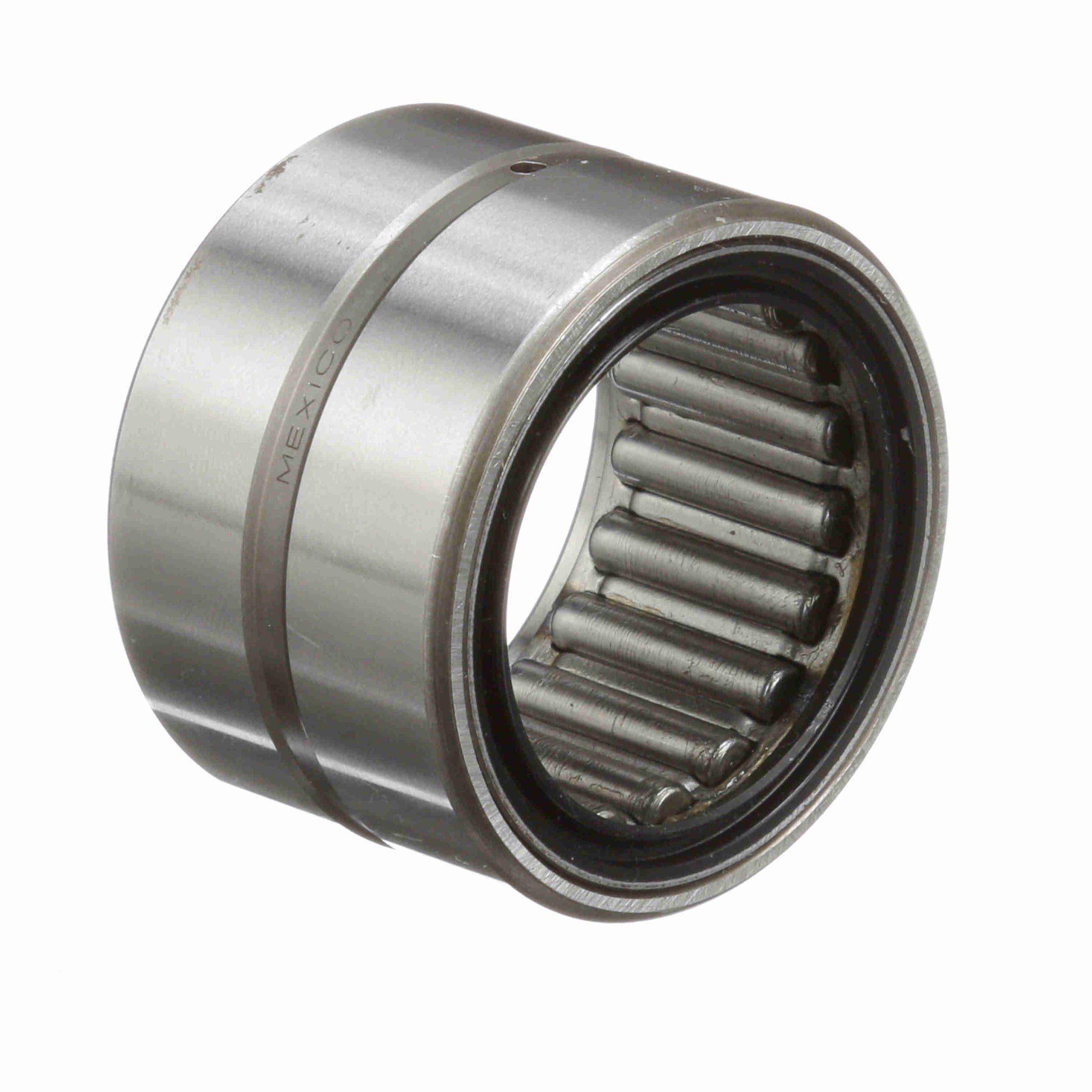

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 22 RS
General Specifications
| UPC: | 726166066123 | Weight: | 0.74 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 1.37 Inches |
| Packaged Height: | 2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.04 in | Bore Size - Inch: | 1.3750 in |
| Outside Diameter - Inch: | 1.875 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Number of Rows: | 1 | Seal Type: | Rubber Lip |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Duplexing: | No | Platform: | Cagerol Bearing |
| Speed (Max) Grease: | 2,800 | Sealed: | Sealed - One Side |
| Static Load Rating (lb): | 14,700 lb | Dynamic Load Rating: | 9,640 |
| Full Complement/Caged: | Caged | Related Inner Ring: | MI 17 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No Flanges | Enclosure: | Sealed One Side |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes |
