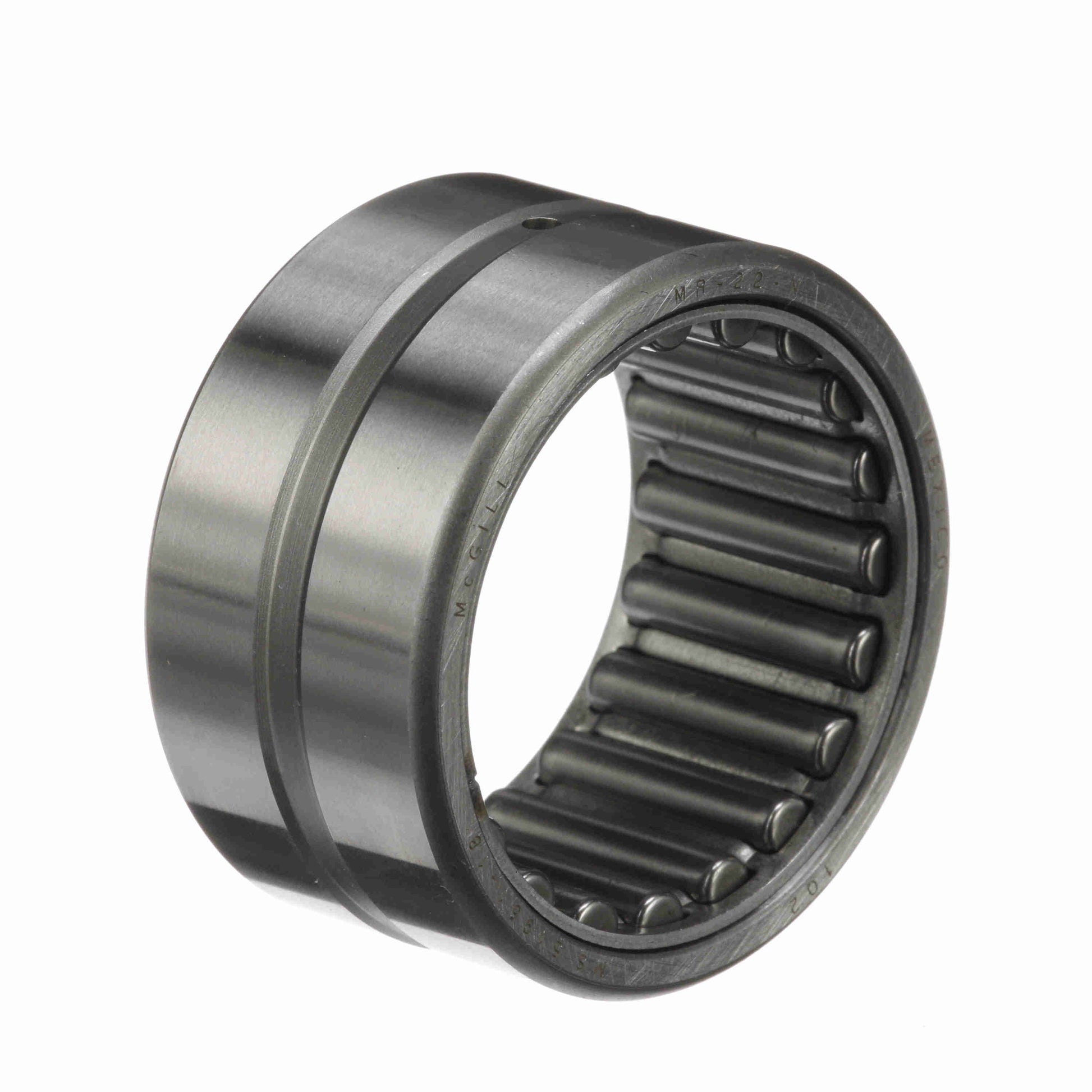

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 22 N
General Specifications
| UPC: | 726166066147 | Weight: | 0.27 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 1.37 Inches |
| Packaged Height: | 2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 1.875 in |
| Hole Diameter: | 0.094 | Bore Size - Inch: | 1.3750 in |
| Housing & Shaft Fillet (in): | 0.04 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Narrow |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Full Complement/Caged: | Caged | Sealed: | None |
| Platform: | Cagerol Bearing | Duplexing: | No |
| Static Load Rating (lb): | 14,700 lb | Speed (Max) Grease: | 4,370 |
| Dynamic Load Rating: | 9,640 | Speed (Max) Oil: | 8,750 |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 18 N |
| Standard Met: | ABMA, ISO | Precision Rating: | RBEC-1 |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
