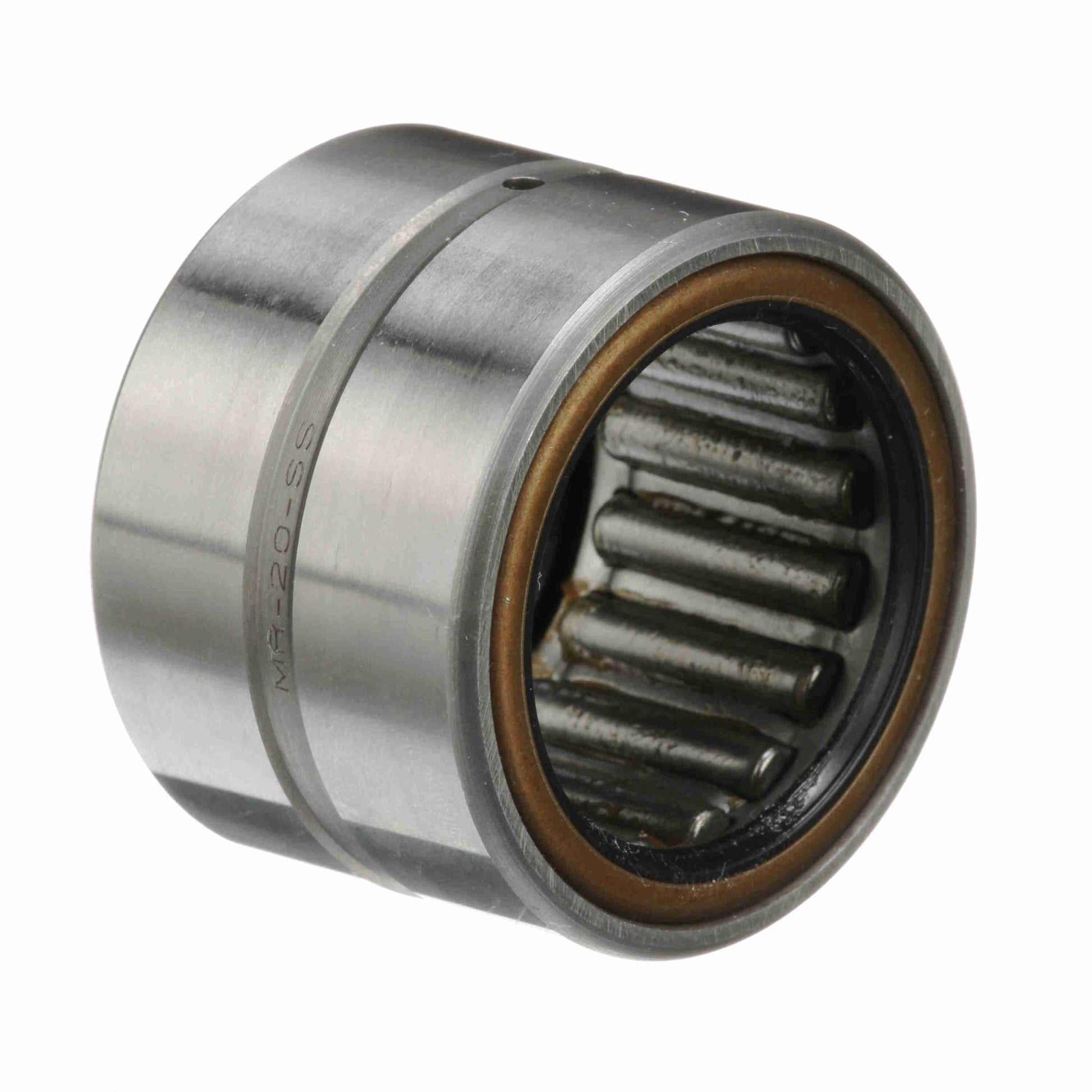

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 20 SS
General Specifications
| UPC: | 726166065881 | Weight: | 0.32 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Housing & Shaft Fillet (in): | 0.04 in |
| Outside Diameter - Inch: | 1.75 in | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.2500 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Misalignment: | No | Number of Rows: | 1 |
| Speed (Max) Oil: | 3,050 | Dynamic Load Rating: | 9,020 |
| Speed (Max) Grease: | 1,500 | Static Load Rating (lb): | 13,100 lb |
| Platform: | Cagerol Bearing | Sealed: | Sealed - Both Sides |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Flanges: | No flange | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication groove and hole | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 16 | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | Yes |
