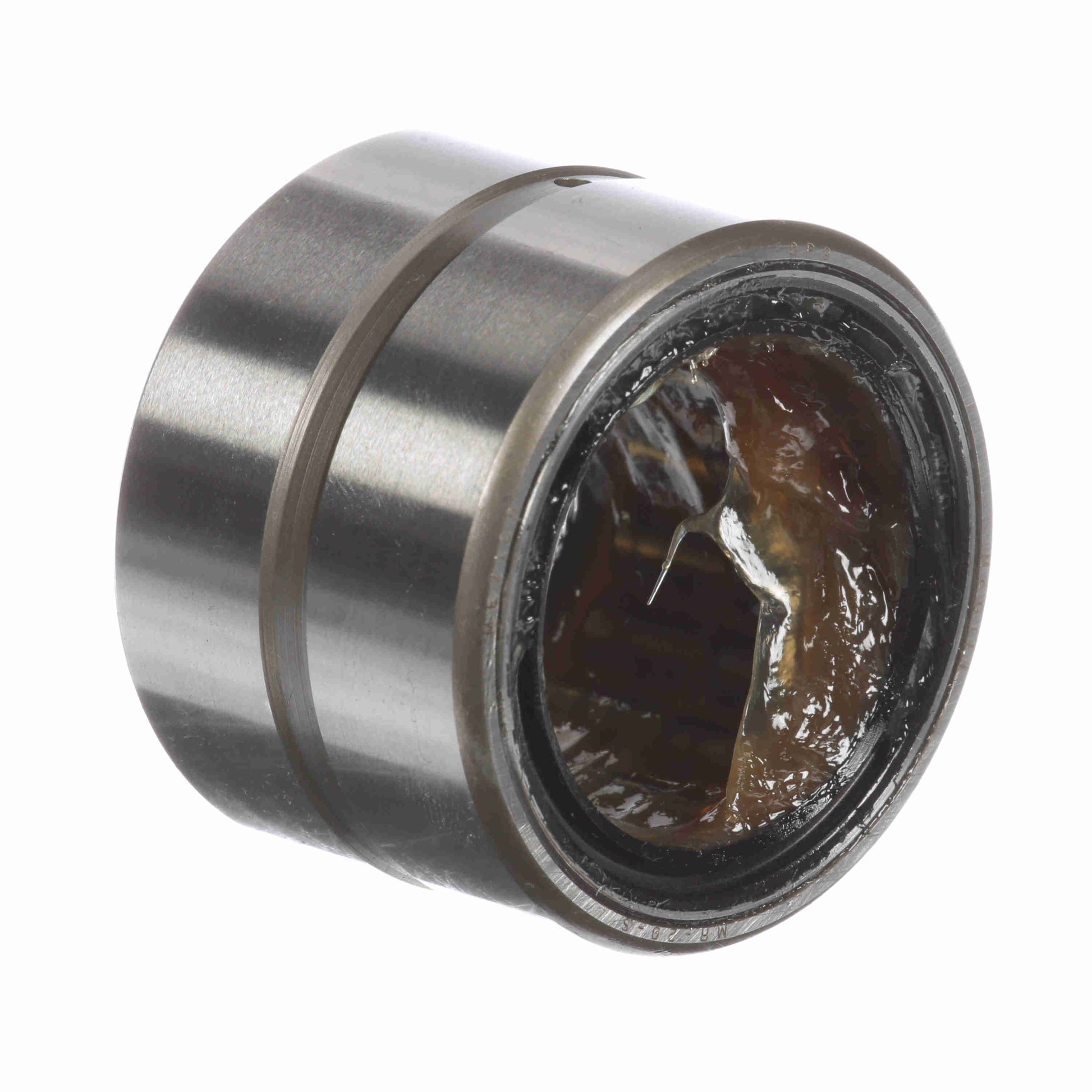

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 20 SRS
General Specifications
| UPC: | 726166065867 | Weight: | 0.29 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 1.2500 in |
| Housing & Shaft Fillet (in): | 0.04 in | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 1.75 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Bore Type: | Straight | Misalignment: | No |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Seal Type: | Rubber Lip |
| Sealed: | Sealed - Both Sides | Dynamic Load Rating: | 9,020 |
| Platform: | Cagerol Bearing | Duplexing: | No |
| Static Load Rating (lb): | 13,100 lb | Speed (Max) Grease: | 3,050 |
| Full Complement/Caged: | Caged | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 16 |
| Flanges: | No Flanges | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
