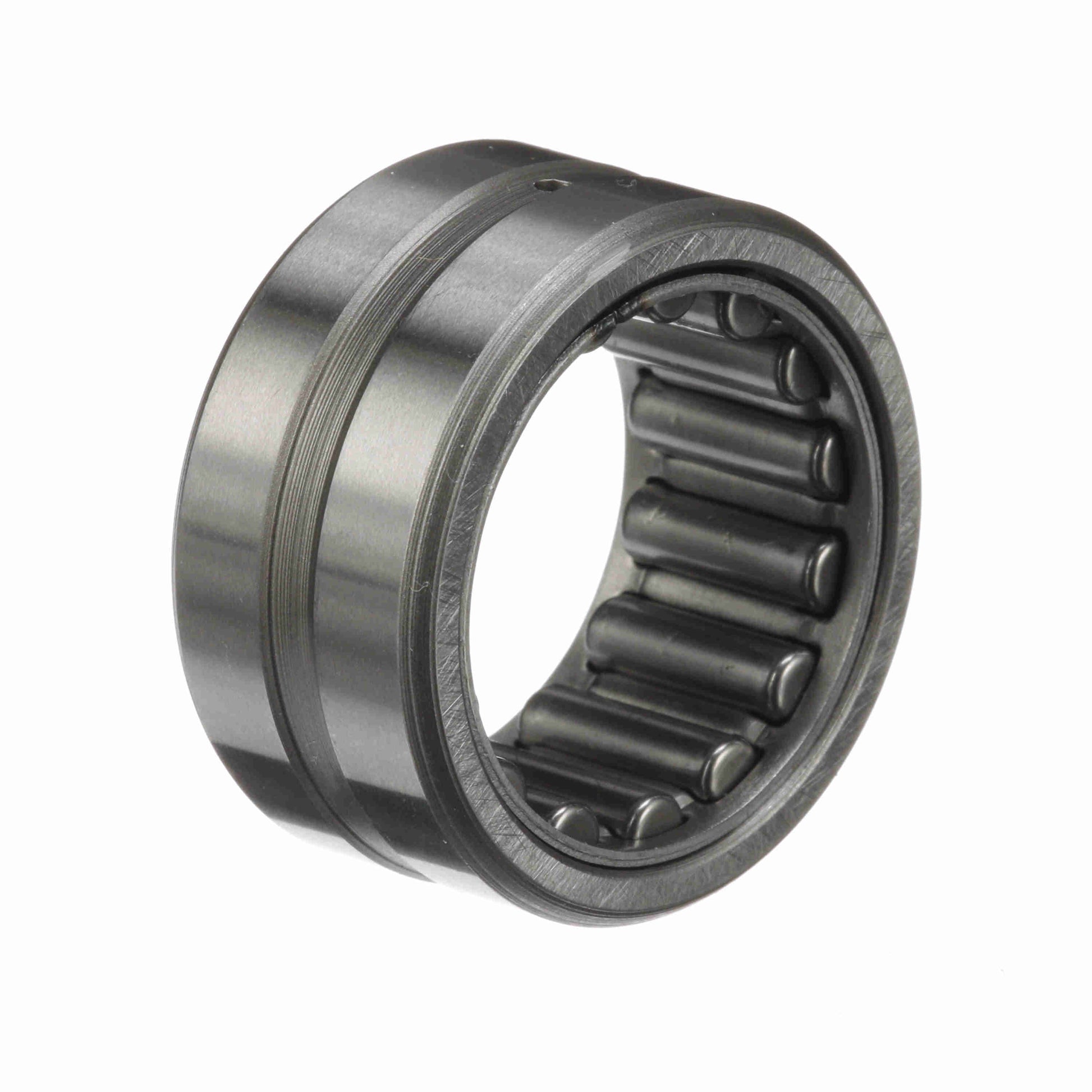

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 16 N
General Specifications
| UPC: | 726166065461 | Weight: | 0.16 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 0.75 | Outside Diameter - Inch: | 1.5 in |
| Bore Size - Inch: | 1 in | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.079 |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Narrow |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Number of Rows: | 1 | Bore Type: | Straight |
| Misalignment: | No | Radial Clearance: | Normal |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Static Load Rating (lb): | 7,100 lb | Duplexing: | No |
| Dynamic Load Rating: | 5,840 | Speed (Max) Oil: | 12,000 |
| Sealed: | None | Platform: | Cagerol Bearing |
| Speed (Max) Grease: | 6,000 | Full Complement/Caged: | Caged |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Flanges: | No flange | Lubrication Hole Type: | Lubrication groove and hole |
| Related Inner Ring: | MI 12 N, MI 13 N | Separable: | Nonseparable |
| Enclosure: | Open | Component Type: | Outer race only |
| Retainer: | Yes |
