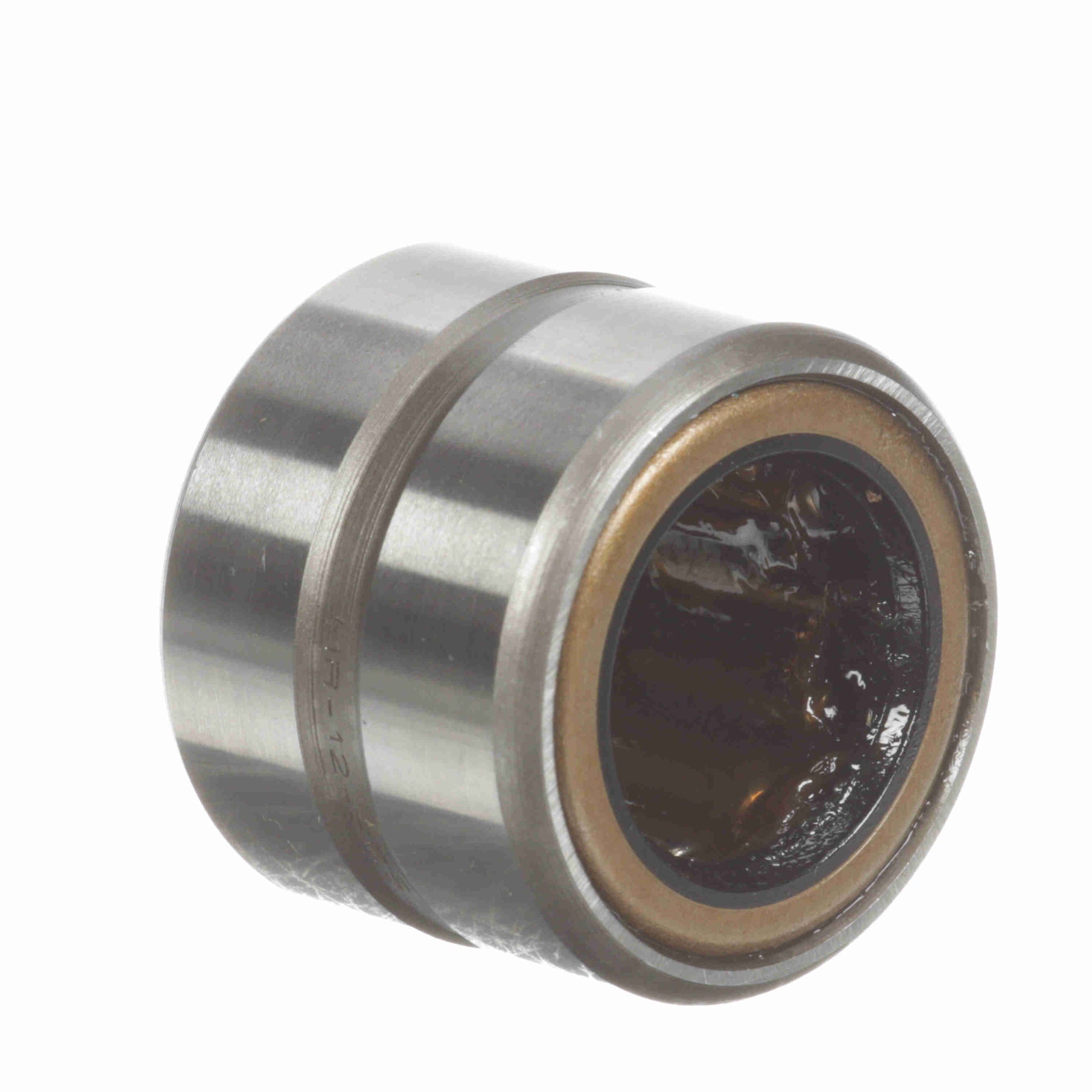

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 12 SRS
General Specifications
| UPC: | 726166065003 | Weight: | 0.15 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 1.25 in |
| Hole Diameter: | 0.079 | Bore Size - Inch: | 0.7500 in |
| Housing & Shaft Fillet (in): | 0.04 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Radial Clearance: | Normal | Misalignment: | No |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Speed (Max) Oil: | 5,100 | Platform: | Cagerol Bearing |
| Sealed: | Sealed - Both Sides | Speed (Max) Grease: | 2,550 |
| Dynamic Load Rating: | 4,990 | Static Load Rating (lb): | 5,400 lb |
| Flanges: | No flange | Lubrication Hole Type: | Lubrication groove and hole |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 8 |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
