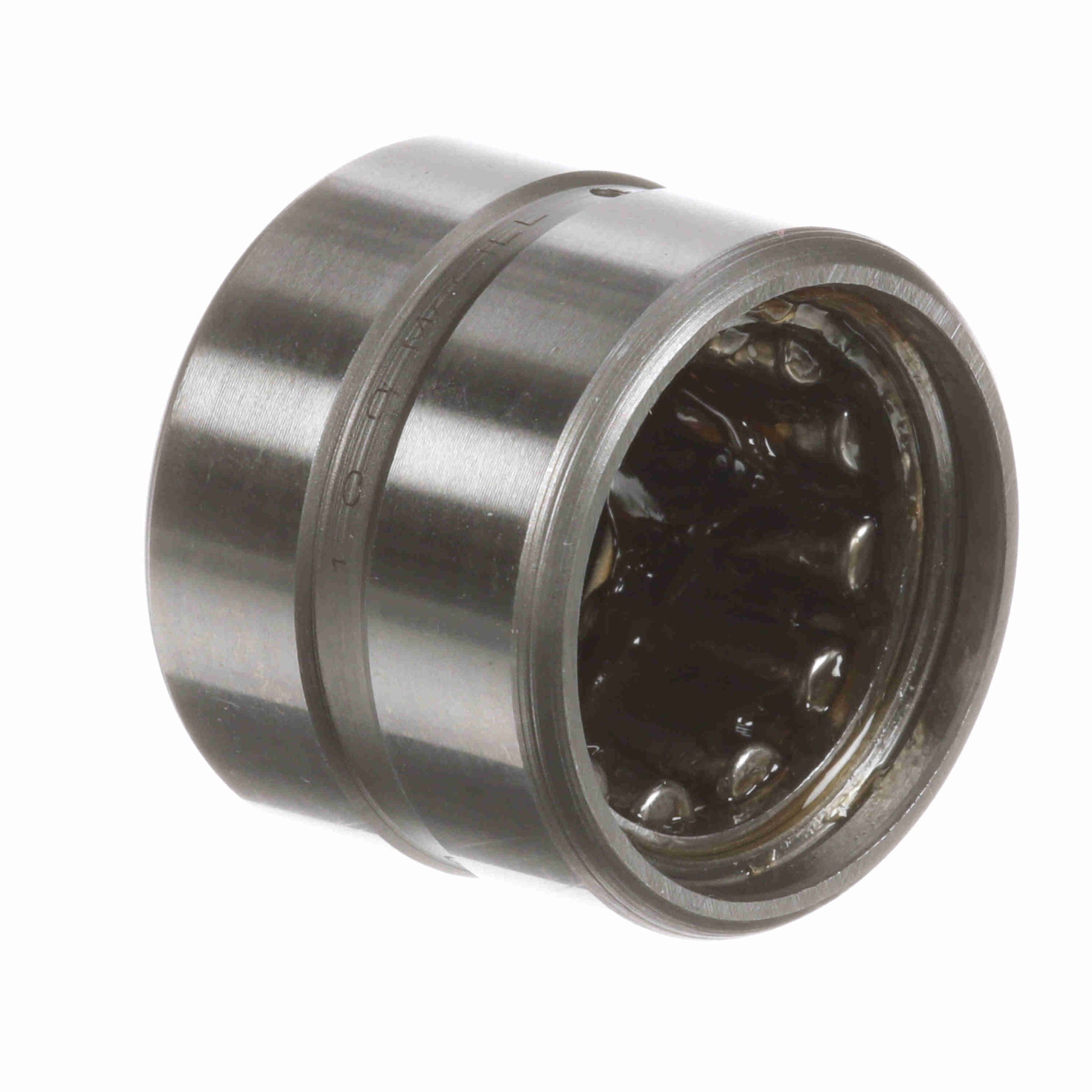

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 12 S
General Specifications
| UPC: | 726166064990 | Weight: | 0.15 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Housing & Shaft Fillet (in): | 0.04 in |
| Bore Size - Inch: | 0.7500 in | Hole Diameter: | 0.079 |
| Outside Diameter - Inch: | 1.25 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Misalignment: | No | Seal Type: | Rubber Lip |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 5,400 lb |
| Sealed: | Sealed - One Side | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed (Max) Grease: | 5,100 |
| Dynamic Load Rating: | 4,990 | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Related Inner Ring: | MI 8 | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Separable: | Nonseparable |
| Enclosure: | Sealed One Side | Component Type: | Outer race only |
| Retainer: | Yes |
