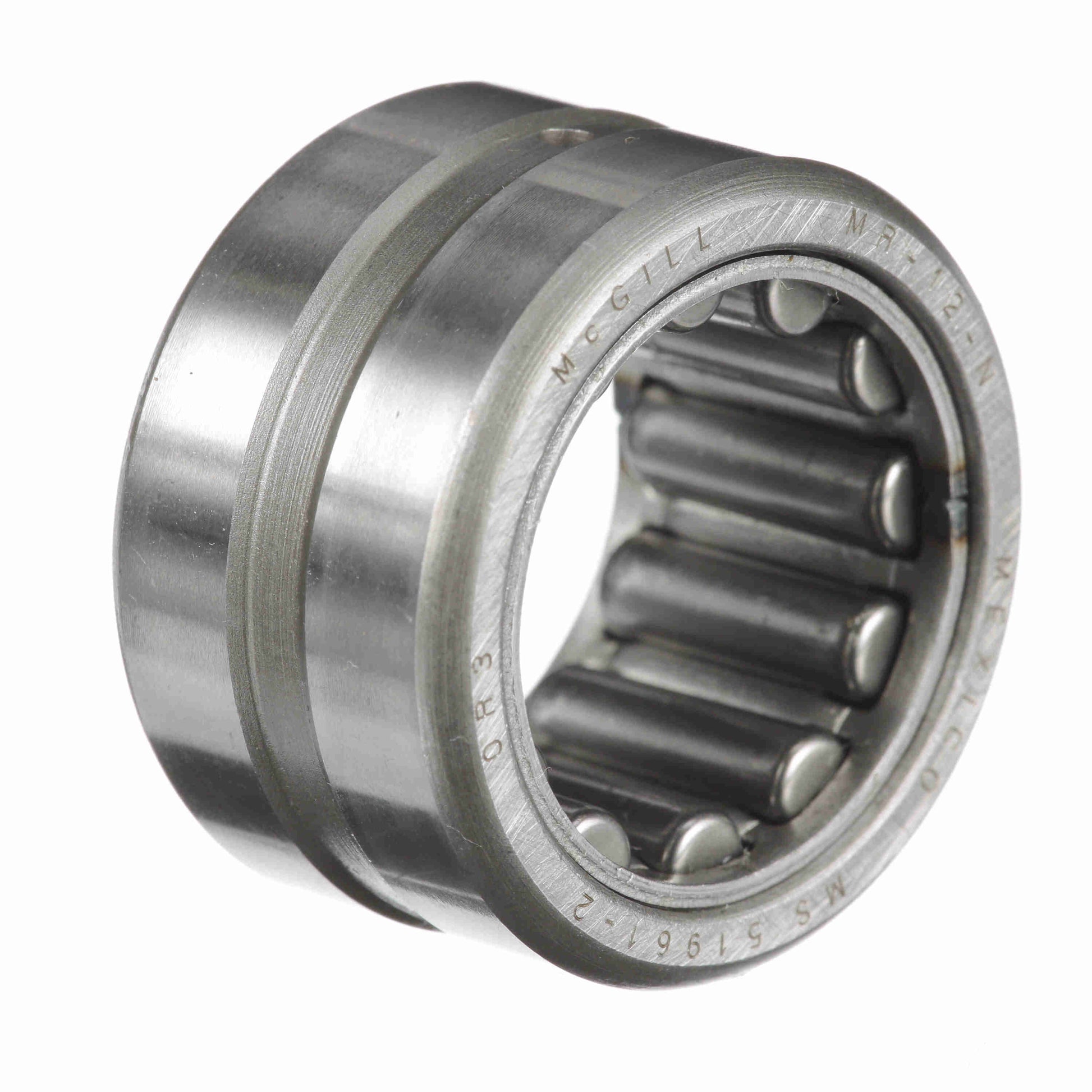

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 12 N
General Specifications
| UPC: | 726166065065 | Weight: | 0.13 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 0.75 | Hole Diameter: | 0.079 |
| Housing & Shaft Fillet (in): | 0.04 in | Bore Size - Inch: | 0.7500 in |
| Outside Diameter - Inch: | 1.25 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Narrow | Cage Material: | Steel |
| Seal Type: | Unsealed | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Bore Type: | Straight | Misalignment: | No |
| Static Load Rating (lb): | 5,400 lb | Full Complement/Caged: | Caged |
| Sealed: | None | Duplexing: | No |
| Dynamic Load Rating: | 4,990 | Speed (Max) Grease: | 13,000 |
| Speed (Max) Oil: | 16,000 | Platform: | Cagerol Bearing |
| Related Inner Ring: | MI 8 N, MI 9 N | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Standard Met: | ABMA, ISO, MS 51961-2 |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Open | Retainer: | Yes |
