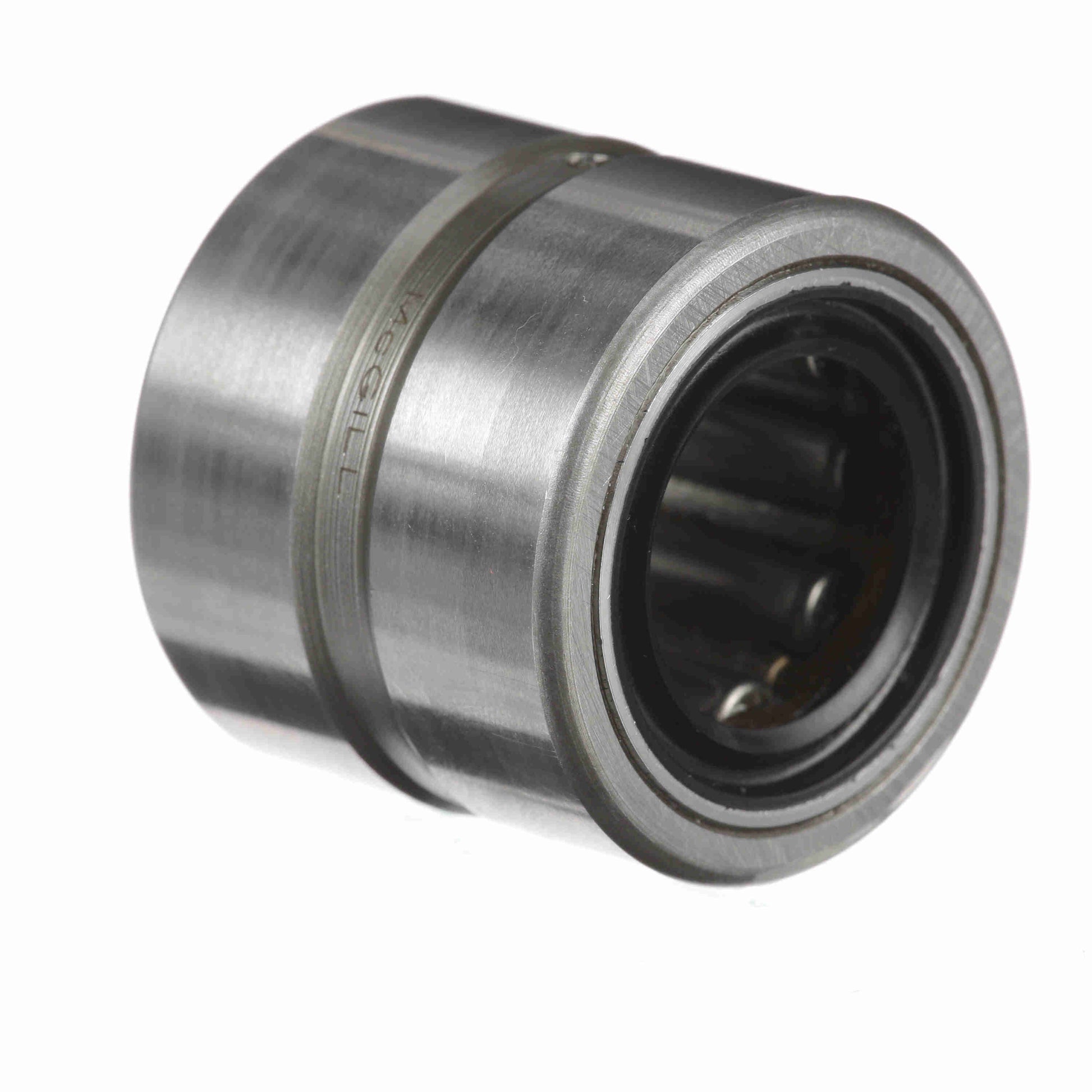

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 10 RSS
General Specifications
| UPC: | 726166064877 | Weight: | 0.16 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Hole Diameter: | 0.079 |
| Outside Diameter - Inch: | 1.125 in | Housing & Shaft Fillet (in): | 0.025 in |
| Bore Size - Inch: | 0.6250 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Misalignment: | No | Number of Rows: | 1 |
| Seal Type: | Rubber Lip | Radial Clearance: | Normal |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Dynamic Load Rating: | 4,320 | Duplexing: | No |
| Static Load Rating (lb): | 4,300 lb | Speed (Max) Grease: | 6,100 |
| Platform: | Cagerol Bearing | Sealed: | Sealed - Both Sides |
| Full Complement/Caged: | Caged | Related Inner Ring: | MI 6 |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | Yes |
