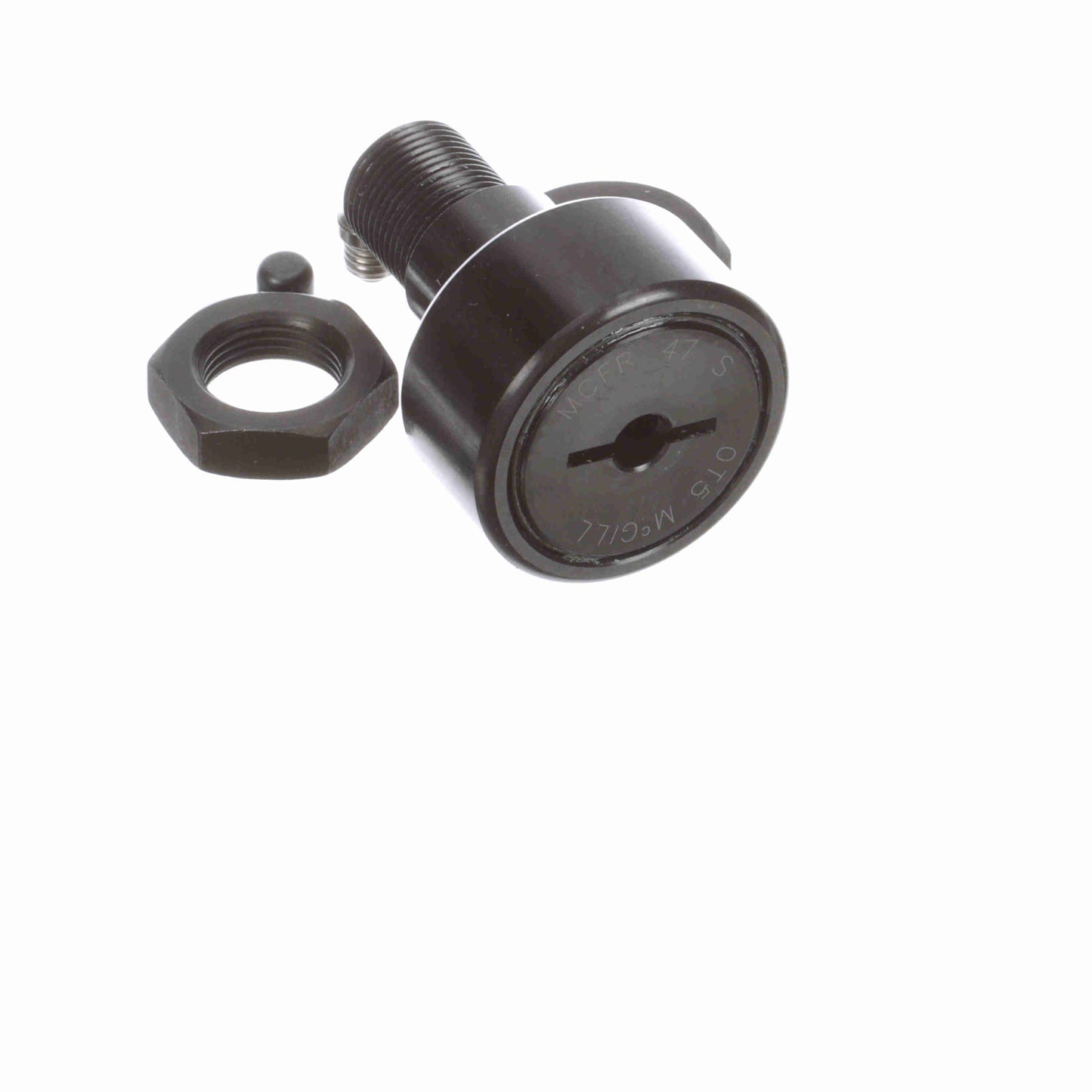

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFRE 47 S
General Specifications
| UPC: | 726166023270 | Weight: | 0.89 LB |
| Packaged Length: | 2.16 Inches | Packaged Width: | 2.16 Inches |
| Packaged Height: | 2.67 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
Dimensions
| Threads: | M20x1.5 | Roller Width - mm: | 24 mm |
| Stud Diameter - mm: | 20 mm | Bushing Length - mm: | 18 mm |
| Roller Diameter - mm: | 47 mm | Eccentricity - mm: | 1 mm |
| Minimum Thread Length: | 21 | Overall Length - mm: | 66 mm |
| Stud Length - mm: | 40.5 mm | Bushing Diameter - mm: | 24 mm |
| Reamed Hole - mm: | 8 mm | Lubrication Fitting Size - Metric: | 8 |
Technical Specifications
| Dynamic Radial Rating: | 3,991 | Adjustment: | Eccentric Bushing |
| Rolling Element: | Needle Roller - Caged | Sealing: | Sealed |
| O.D. Configuration: | Crowned | Hex/Slot: | Screwdriver Slot |
| Dynamic Track Roller Load Rating (N): | 17,750 N | Limiting Speed: | 3,900 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Industry Standard: | DIN |
| Clamping Torque - Nm: | 118 | Static Track Roller Load Rating: | 29,800 |
| Static Load Rating: | 29,800 | Dynamic Load Rating - N: | 21,280 |
| Stud Type: | Standard Stud with Eccentric Bushing | Roller Shape: | Crowned |
| Tolerance Class: | P0 Equivalent |
