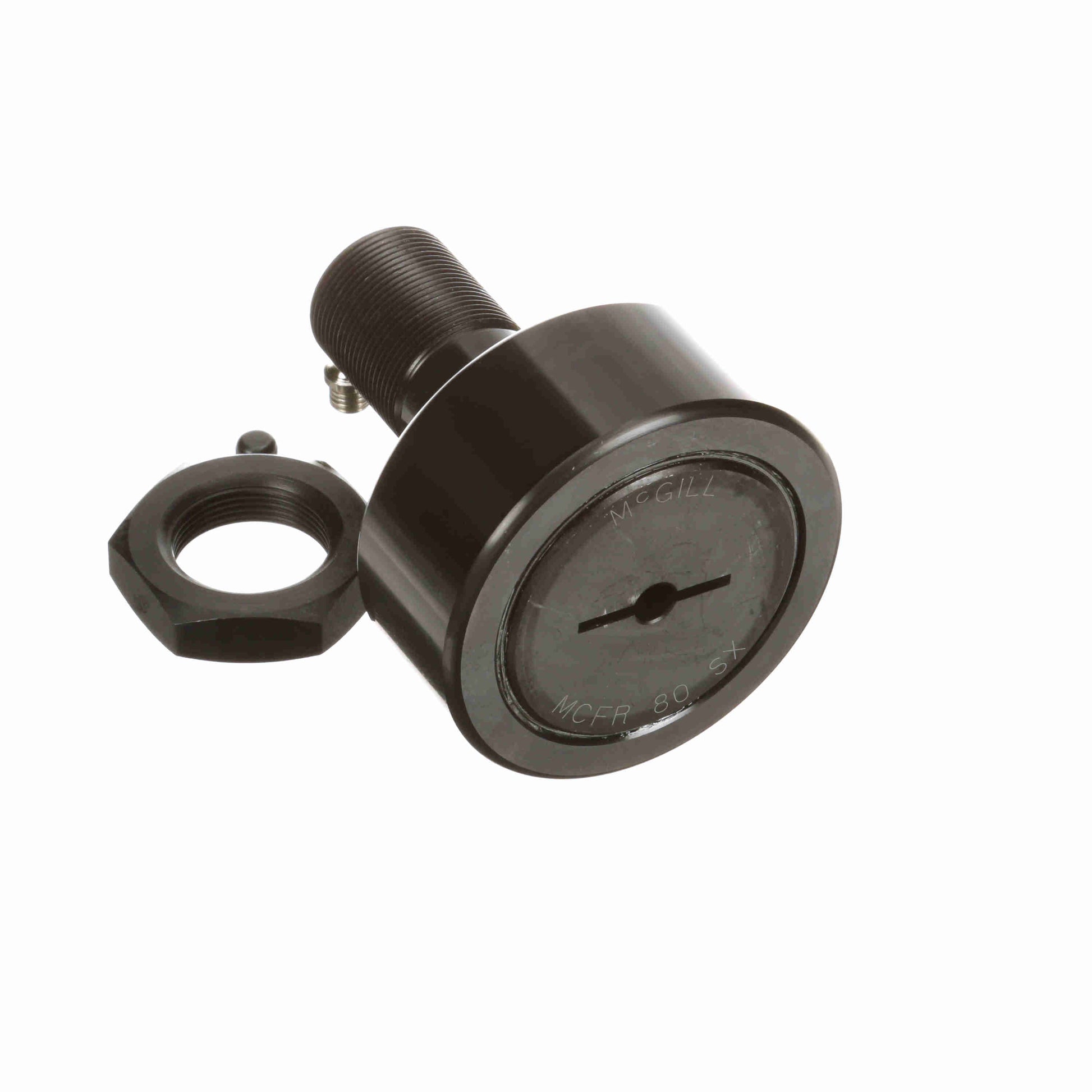

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFR 80 SX
General Specifications
| UPC: | 726166027667 | Weight: | 4.10 LB |
| Packaged Length: | 3.7 Inches | Packaged Width: | 3.9 Inches |
| Packaged Height: | 4.5 Inches | Country of Origin: | China |
Dimensions
| Threads: | M30x1.5 | Roller Width - mm: | 35 mm |
| Lubrication Fitting Size - Metric: | 8 | Stud Length - mm: | 63 mm |
| Stud Diameter - mm: | 30 mm | Oil Hole Center - mm: | 15 mm |
| Overall Length - mm: | 100 mm | Roller Diameter - mm: | 80 mm |
| Reamed Hole - mm: | 8 mm | Oil Hole Diameter - mm: | 4 mm |
| Minimum Thread Length: | 32 |
Technical Specifications
| O.D. Configuration: | Cylindrical | Rolling Element: | Needle Roller - Caged |
| Adjustment: | None | Dynamic Radial Rating: | 10,495 |
| Limiting Speed: | 2,200 | Sealing: | Sealed |
| Hex/Slot: | Screwdriver Slot | Dynamic Track Roller Load Rating (N): | 46,680 N |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Dynamic Load Rating - lb: | 2,460 | Static Track Roller Load Rating: | 87,600 |
| Dynamic Load Rating - N: | 56,000 | Platform: | CAMROL® |
| Stud Type: | Standard Stud | Static Load Rating: | 87,600 |
| Roller Shape: | Cylindrical | Tolerance Class: | P0 Equivalent |
| Clamping Torque - Nm: | 441 | Industry Standard: | DIN / JIS |
| Lubrication Hole Location: | Stud side |
