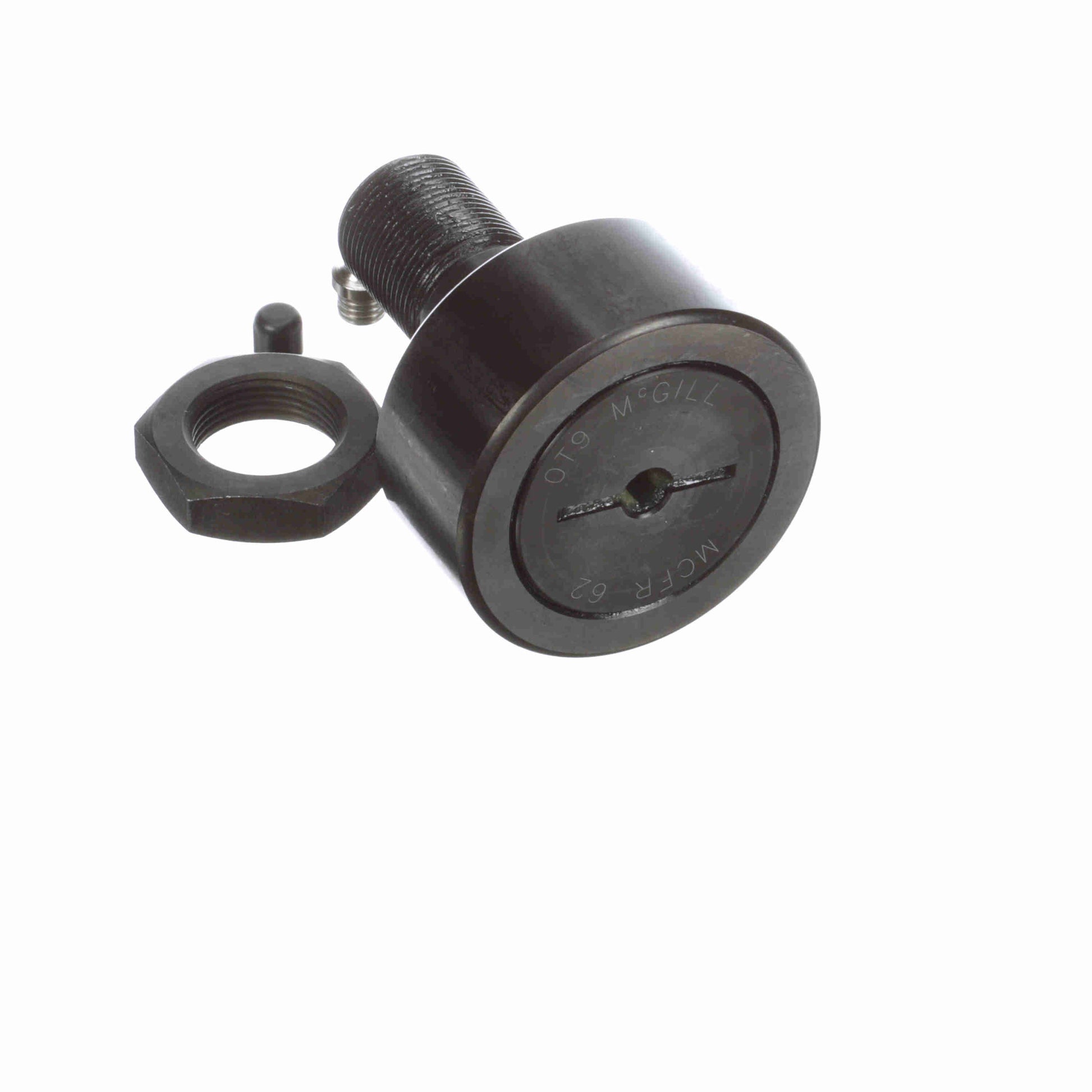

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCFR 62
General Specifications
| UPC: | 726166025236 | Weight: | 2.01 LB |
| Packaged Length: | 3.23 Inches | Packaged Width: | 2.64 Inches |
| Packaged Height: | 2.64 Inches | Country of Origin: | China |
Dimensions
| Threads: | M24x1.5 | Overall Length - mm: | 80 mm |
| Oil Hole Center - mm: | 11 mm | Lubrication Fitting Size - Metric: | 8 |
| Reamed Hole - mm: | 8 mm | Stud Length - mm: | 49.5 mm |
| Roller Diameter - mm: | 62 mm | Roller Width - mm: | 29 mm |
| Minimum Thread Length: | 25 | Stud Diameter - mm: | 24 mm |
| Oil Hole Diameter - mm: | 4 mm |
Technical Specifications
| Limiting Speed: | 3,100 | Dynamic Radial Rating: | 5,931 |
| O.D. Configuration: | Crowned | Hex/Slot: | Screwdriver Slot |
| Sealing: | Unsealed | Rolling Element: | Needle Roller - Caged |
| Adjustment: | None | Dynamic Track Roller Load Rating (N): | 26,380 N |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 46,300 | Platform: | CAMROL® |
| Roller Shape: | Crowned | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud | Industry Standard: | DIN |
| Clamping Torque - Nm: | 216 | Dynamic Load Rating - N: | 31,680 |
| Static Track Roller Load Rating: | 46,300 |
