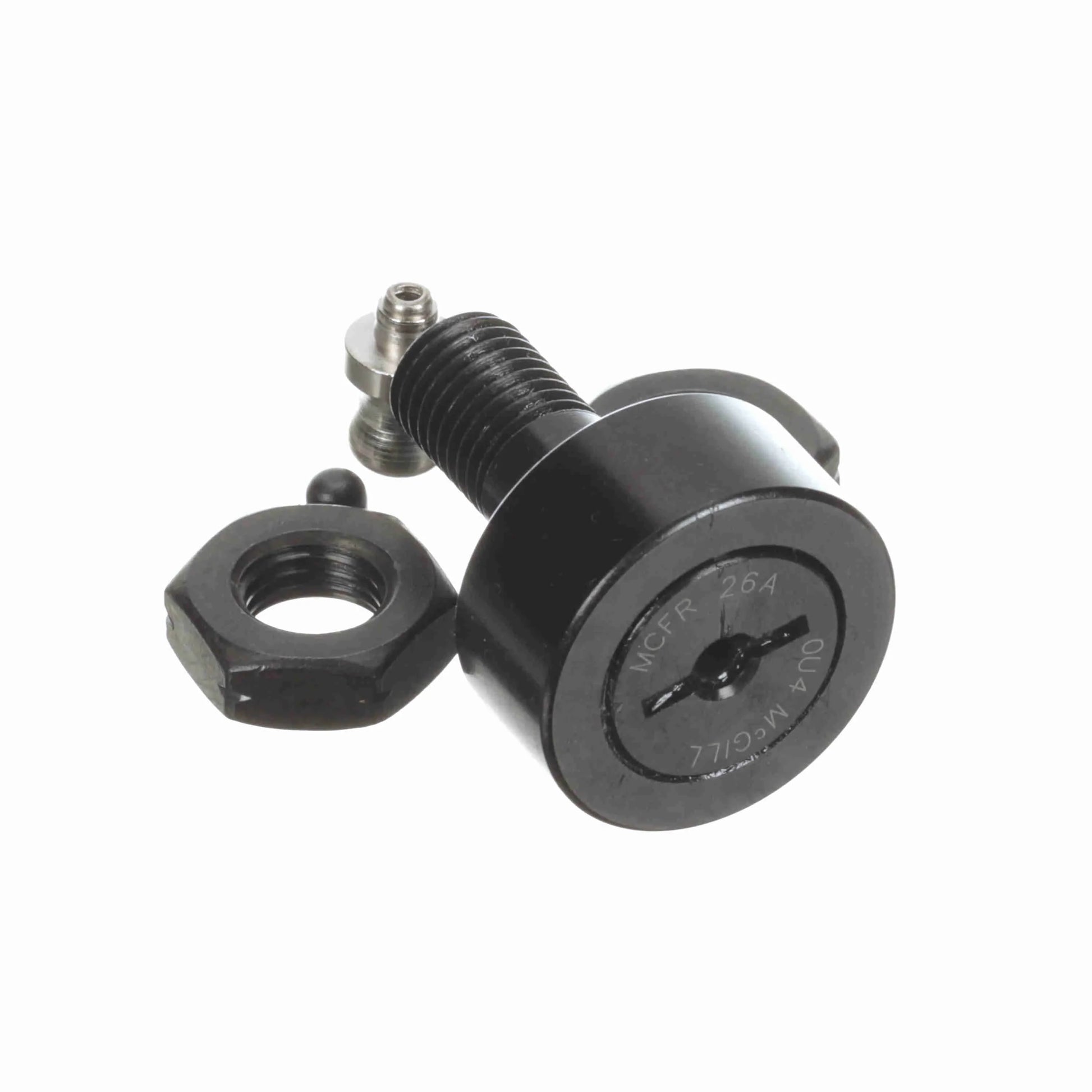

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCFR 26A
General Specifications
| UPC: | 726166017859 | Weight: | 0.18 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches |
Dimensions
| Threads: | M10x1.25 | Reamed Hole - mm: | 4 mm |
| Stud Diameter - mm: | 10 mm | Stud Length - mm: | 23 mm |
| Lubrication Fitting Size - Metric: | 4 | Roller Diameter - mm: | 26 mm |
| Overall Length - mm: | 36 mm | Minimum Thread Length: | 13 |
| Roller Width - mm: | 12 mm |
Technical Specifications
| Limiting Speed: | 13,500 | Dynamic Radial Rating: | 1,169 |
| Adjustment: | None | Dynamic Track Roller Load Rating (N): | 5,200 N |
| Hex/Slot: | Screwdriver Slot | Rolling Element: | Needle Roller - Full Complement |
| O.D. Configuration: | Cylindrical | Sealing: | Unsealed |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Clamping Torque - Nm: | 22 |
| Static Load Rating: | 1,360 | Roller Shape: | Crowned |
| Static Track Roller Load Rating: | 6,050 | Industry Standard: | JIS |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - N: | 6,280 |
| Stud Type: | Standard Stud |
