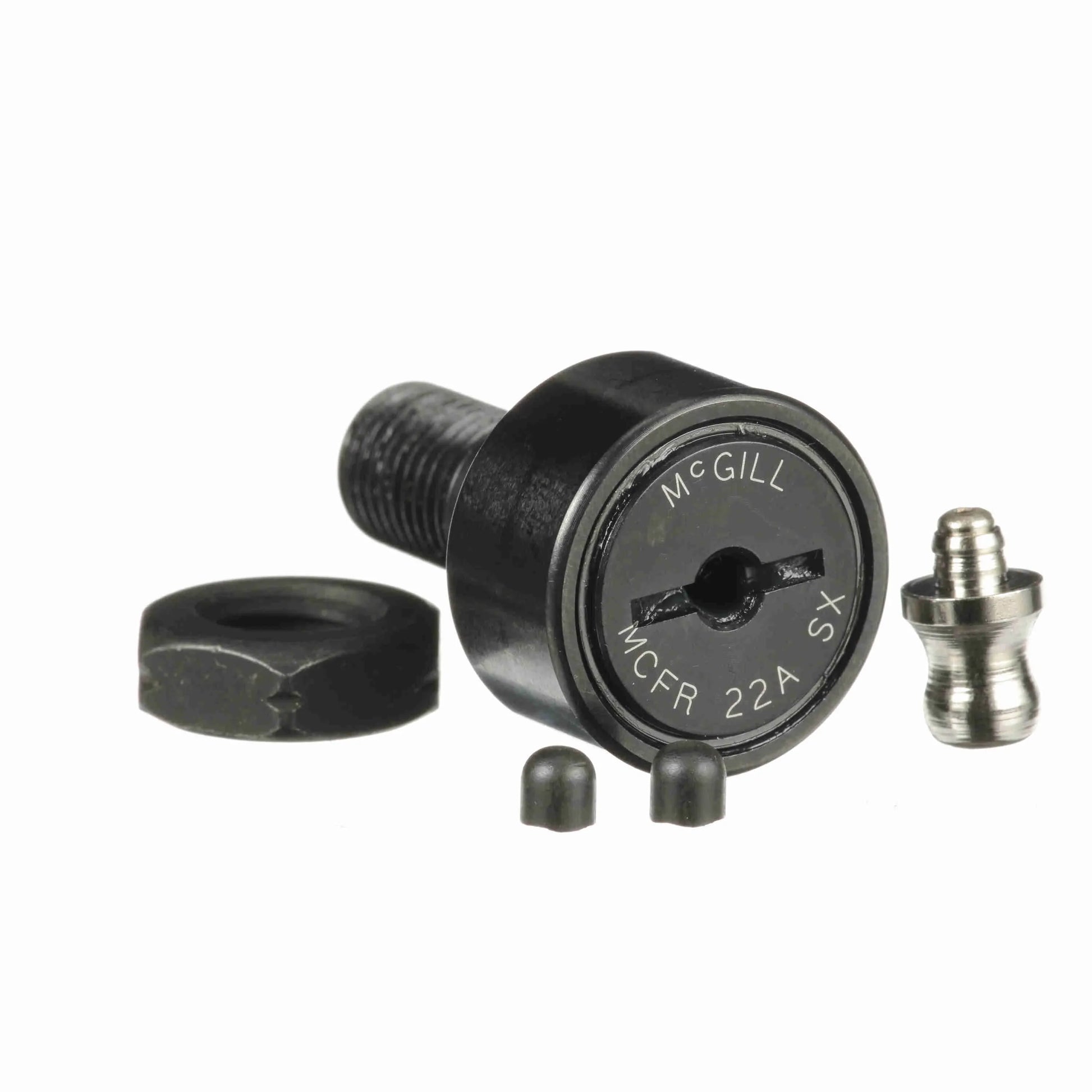

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFR 22A SX
General Specifications
| UPC: | 726166016708 | Weight: | 0.14 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.2 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1.25 | Stud Length - mm: | 23 mm |
| Roller Width - mm: | 12 mm | Stud Diameter - mm: | 10 mm |
| Lubrication Fitting Size - Metric: | 4 | Minimum Thread Length: | 13 |
| Overall Length - mm: | 36 mm | Roller Diameter - mm: | 22 mm |
| Reamed Hole - mm: | 4 mm |
Technical Specifications
| Limiting Speed: | 13,500 | Hex/Slot: | Screwdriver Slot |
| Rolling Element: | Needle Roller - Caged | Adjustment: | None |
| Dynamic Track Roller Load Rating (N): | 5,200 N | Sealing: | Sealed |
| Dynamic Radial Rating: | 1,169 | O.D. Configuration: | Cylindrical |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Static Track Roller Load Rating: | 6,050 |
| Stud Type: | Standard Stud | Industry Standard: | JIS |
| Roller Shape: | Cylindrical | Clamping Torque - Nm: | 15 |
| Static Load Rating: | 6,050 | Tolerance Class: | P0 Equivalent |
| Dynamic Load Rating - N: | 6,280 |
