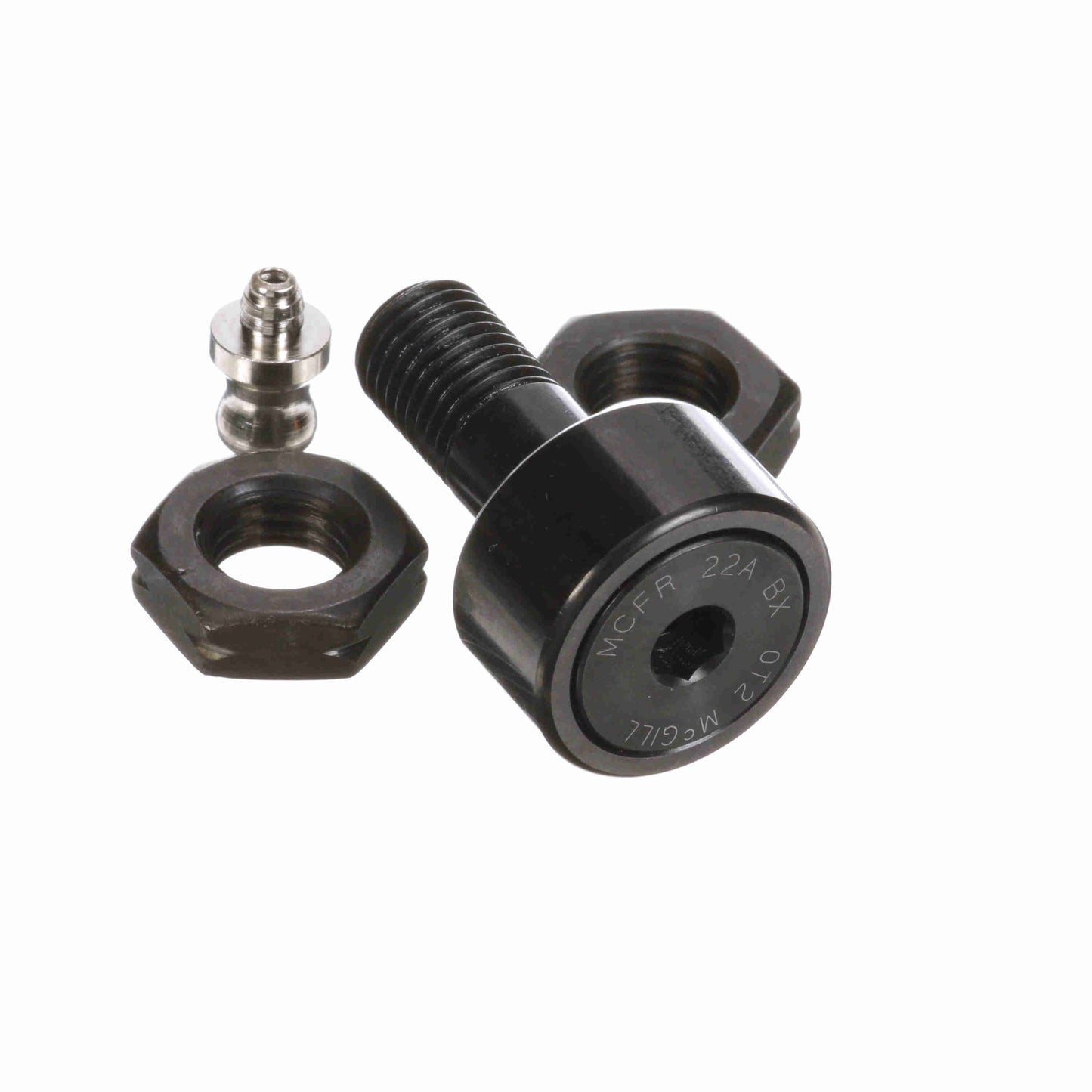

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Hex Hole - MCFR 22A BX
General Specifications
| UPC: | 726166016791 | Weight: | 0.14 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1.25 | Roller Diameter - mm: | 22 mm |
| Overall Length - mm: | 36 mm | Reamed Hole - mm: | 4 mm |
| Stud Diameter - mm: | 10 mm | Lubrication Fitting Size - Metric: | 4 |
| Hex Socket - mm: | 5 mm | Minimum Thread Length: | 13 |
| Roller Width - mm: | 12 mm | Stud Length - mm: | 23 mm |
Technical Specifications
| O.D. Configuration: | Cylindrical | Dynamic Radial Rating: | 1,169 |
| Hex/Slot: | Hex Hole | Limiting Speed: | 13,500 |
| Adjustment: | None | Sealing: | Unsealed |
| Dynamic Track Roller Load Rating (N): | 5,200 N | Rolling Element: | Needle Roller - Caged |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 6,050 | Industry Standard: | JIS |
| Tolerance Class: | P0 Equivalent | Stud Type: | Standard Stud |
| Platform: | CAMROL® | Dynamic Load Rating - N: | 6,280 |
| Roller Shape: | Cylindrical | Static Track Roller Load Rating: | 6,050 |
| Clamping Torque - Nm: | 15 |
