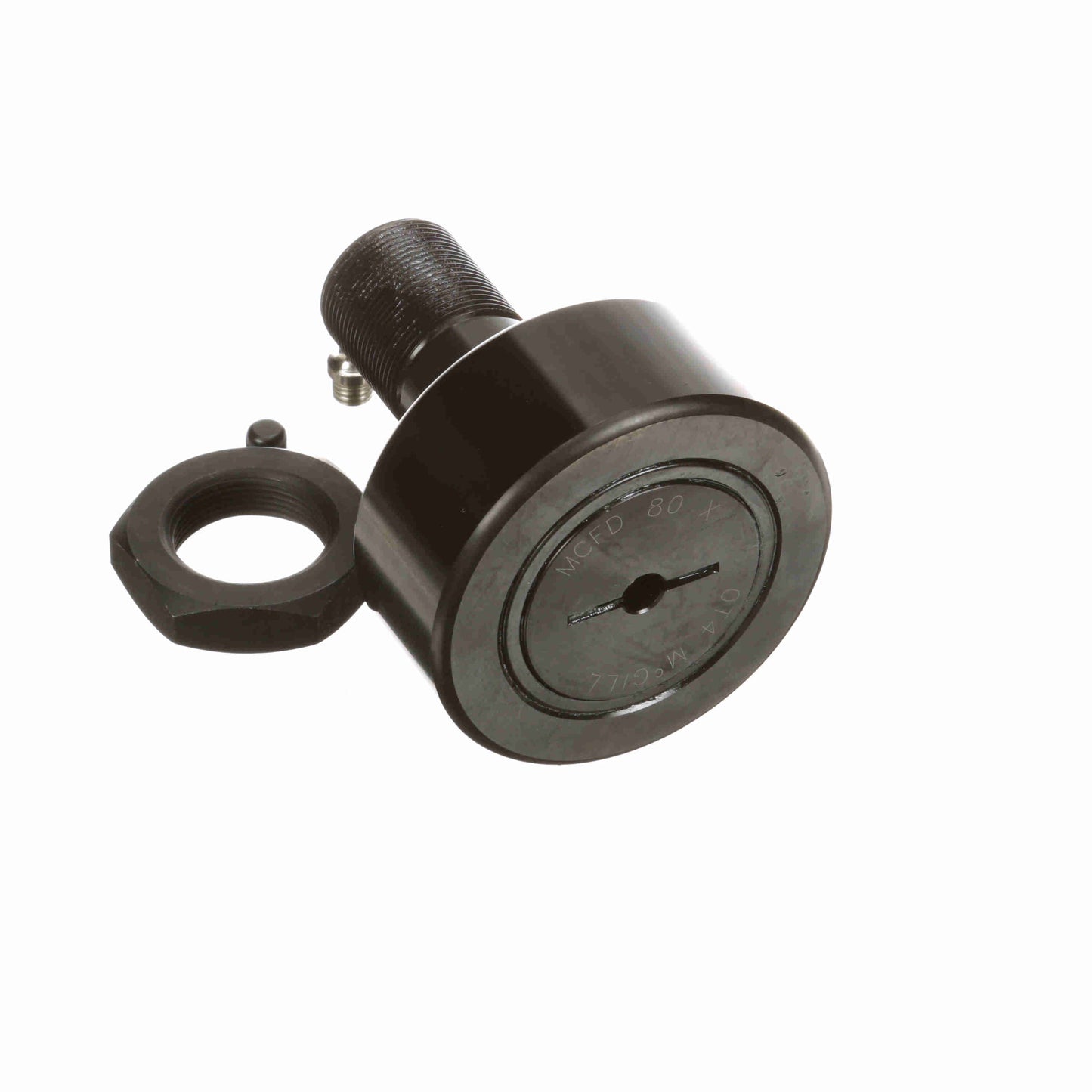

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Heavy Duty Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Shielded - MCFD 80 X
General Specifications
| UPC: | 726166027896 | Weight: | 4.05 LB |
| Packaged Length: | 4.41 Inches | Packaged Width: | 3.27 Inches |
| Packaged Height: | 3.27 Inches | Country of Origin: | China |
Dimensions
| Threads: | M30x1.5 | Lubrication Fitting Size - Metric: | 8 |
| Roller Width - mm: | 35 mm | Reamed Hole - mm: | 8 mm |
| Minimum Thread Length: | 32 | Overall Length - mm: | 100 mm |
| Oil Hole Center - mm: | 15 mm | Stud Length - mm: | 63 mm |
| Endplate Outer Diameter: | 47 | Oil Hole Diameter - mm: | 4 mm |
| Stud Diameter - mm: | 30 mm | Roller Diameter - mm: | 80 mm |
Technical Specifications
| O.D. Configuration: | Cylindrical | Dynamic Track Roller Load Rating (N): | 67,000 N |
| Rolling Element: | Cylindrical Roller | Hex/Slot: | Screwdriver Slot |
| Sealing: | Shielded | Adjustment: | None |
| Limiting Speed: | 1,800 | Dynamic Radial Rating: | 15,063 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Dynamic Load Rating - N: | 94,000 | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud | Static Load Rating: | 91,000 |
| Platform: | CAMROL® | Static Track Roller Load Rating: | 91,000 |
| Roller Shape: | Cylindrical | Clamping Torque - Nm: | 441 |
