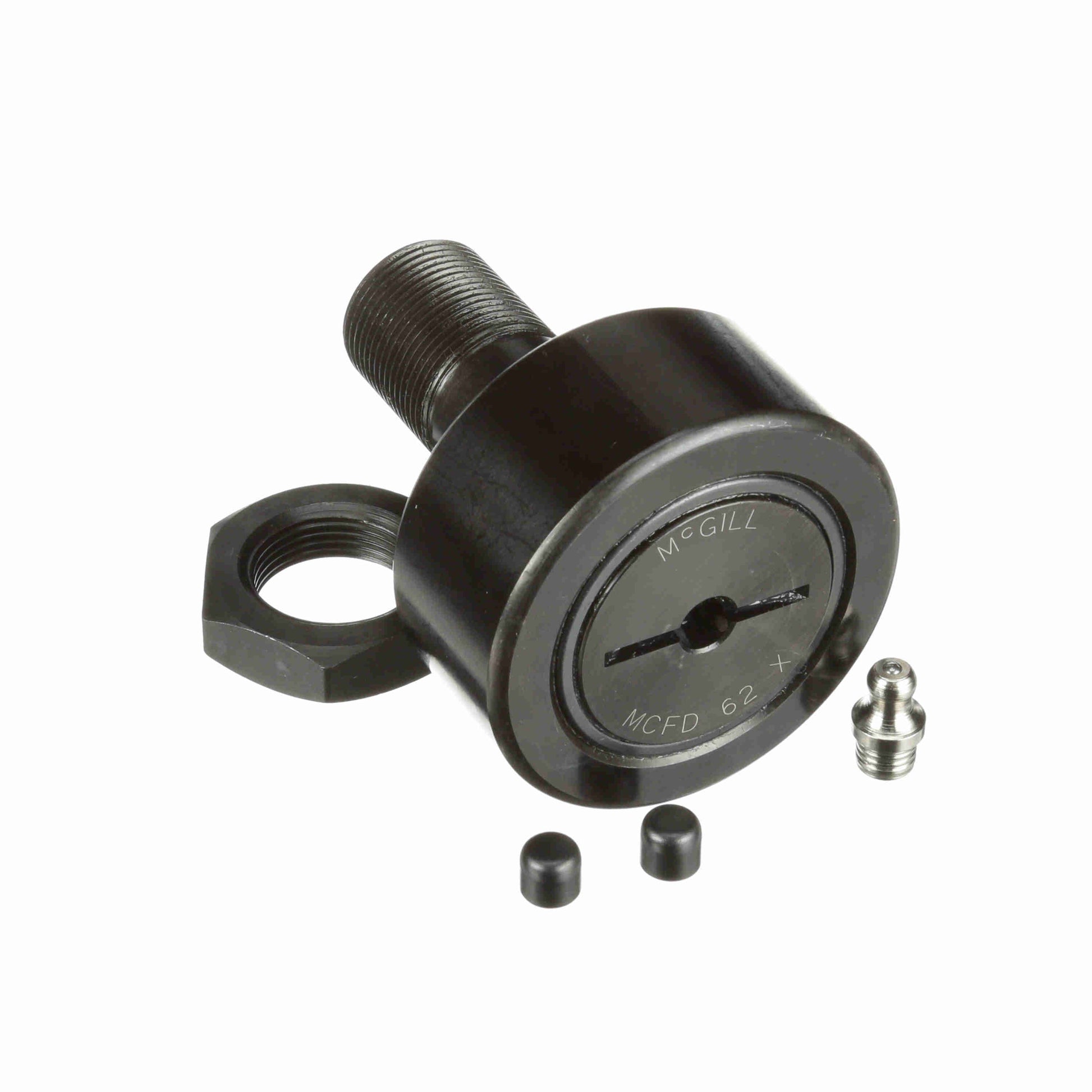

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Heavy Duty Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Shielded - MCFD 62 X
General Specifications
| UPC: | 726166025861 | Weight: | 2.02 LB |
| Packaged Length: | 2.8 Inches | Packaged Width: | 2.7 Inches |
| Packaged Height: | 3.3 Inches | Country of Origin: | China |
Dimensions
| Threads: | M24x1.5 | Minimum Thread Length: | 25 |
| Oil Hole Diameter - mm: | 4 mm | Roller Width - mm: | 29 mm |
| Roller Diameter - mm: | 62 mm | Oil Hole Center - mm: | 11 mm |
| Stud Diameter - mm: | 24 mm | Reamed Hole - mm: | 8 mm |
| Endplate Outer Diameter: | 38 | Stud Length - mm: | 49.5 mm |
| Overall Length - mm: | 80 mm | Lubrication Fitting Size - Metric: | 8 |
Technical Specifications
| Hex/Slot: | Screwdriver Slot | Limiting Speed: | 2,600 |
| Dynamic Track Roller Load Rating (N): | 41,000 N | Dynamic Radial Rating: | 9,218 |
| O.D. Configuration: | Cylindrical | Sealing: | Shielded |
| Rolling Element: | Cylindrical Roller | Adjustment: | None |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Clamping Torque - Nm: | 216 |
| Stud Type: | Standard Stud | Static Track Roller Load Rating: | 48,000 |
| Platform: | CAMROL® | Dynamic Load Rating - N: | 58,000 |
| Roller Shape: | Cylindrical | Static Load Rating: | 48,000 |
