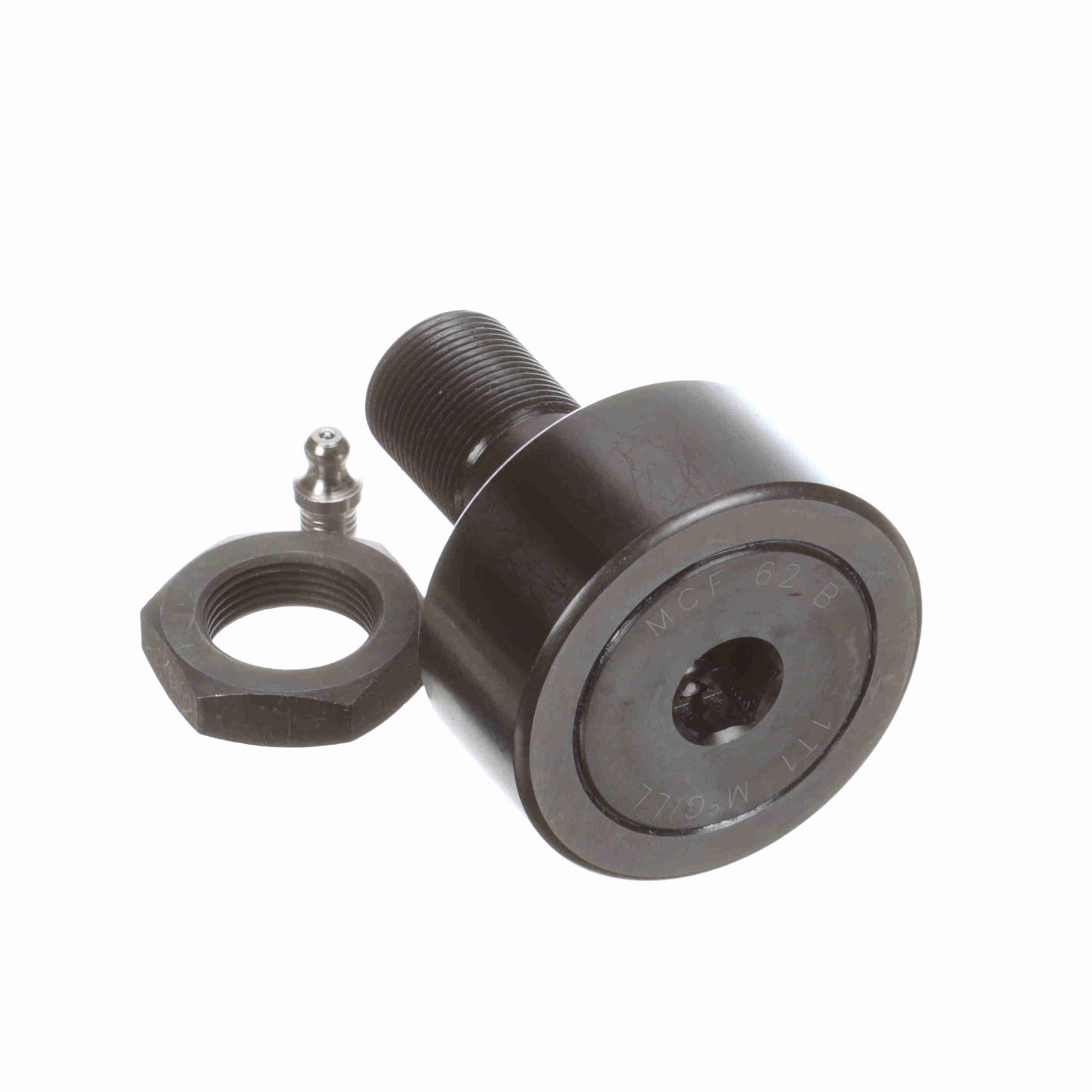

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Hex Hole - MCF 62 B
General Specifications
| UPC: | 726166025106 | Weight: | 2.03 LB |
| Packaged Length: | 3.23 Inches | Packaged Width: | 2.64 Inches |
| Packaged Height: | 2.64 Inches |
Dimensions
| Threads: | M24x1.5 | Lubrication Fitting Size - Metric: | 8 |
| Roller Diameter - mm: | 62 mm | Minimum Thread Length: | 25 |
| Overall Length - mm: | 80 mm | Endplate Outer Diameter: | 44 |
| Hex Socket - mm: | 14 mm | Reamed Hole - mm: | 8 mm |
| Stud Length - mm: | 50 mm | Roller Width - mm: | 29 mm |
| Stud Diameter - mm: | 24 mm |
Technical Specifications
| Sealing: | Unsealed | Hex/Slot: | Hex Hole |
| Dynamic Radial Rating: | 8,732 | Limiting Speed: | 2,100 |
| Adjustment: | None | O.D. Configuration: | Crowned |
| Dynamic Track Roller Load Rating (N): | 38,840 N | Rolling Element: | Needle Roller - Full Complement |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Industry Standard: | DIN |
| Static Load Rating: | 14,703 | Static Track Roller Load Rating: | 65,400 |
| Clamping Torque - Nm: | 216 | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud | Dynamic Load Rating - N: | 46,580 |
| Roller Shape: | Crowned |
