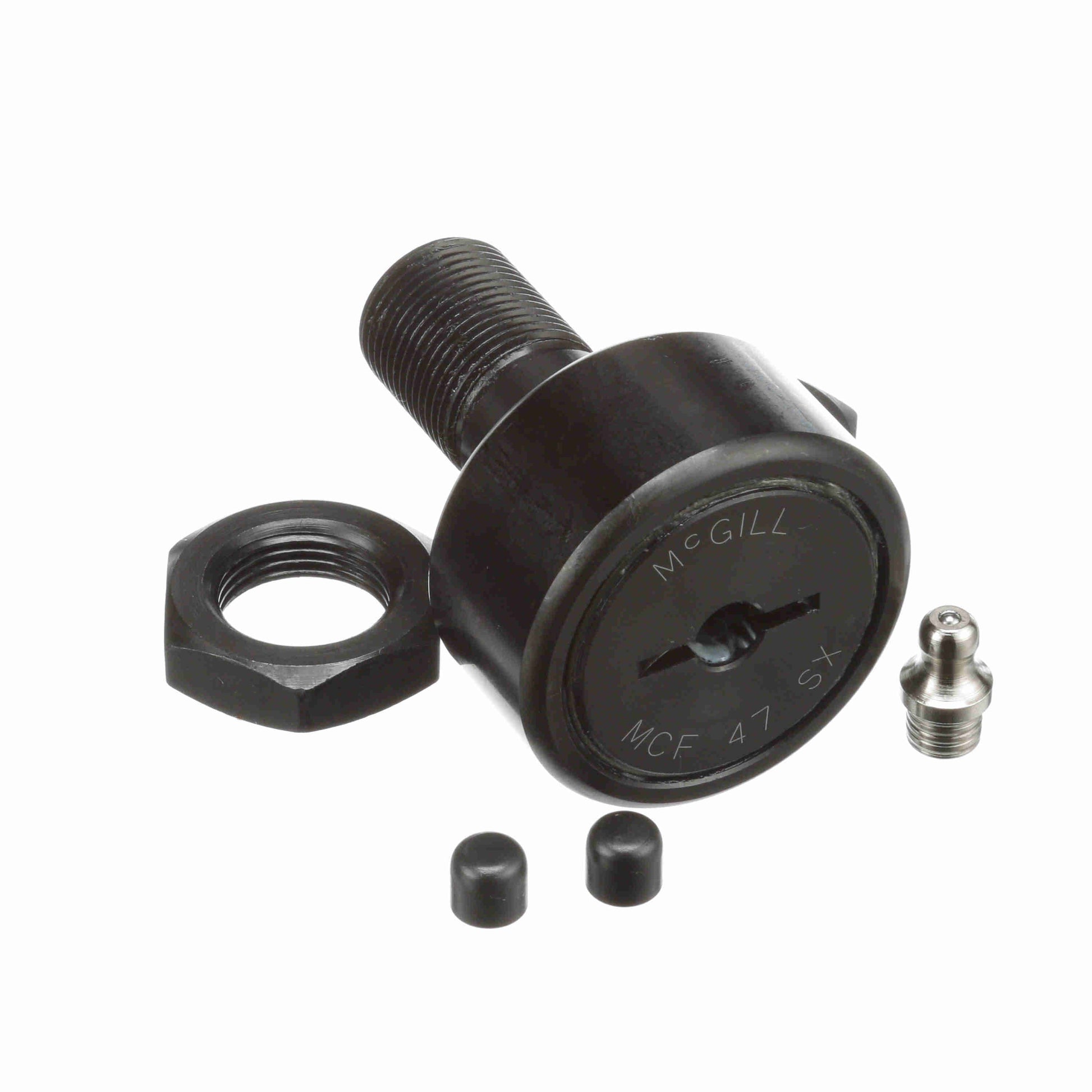

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCF 47 SX
General Specifications
| UPC: | 726166022174 | Weight: | 1.01 LB |
| Packaged Length: | 2.3 Inches | Packaged Width: | 2.2 Inches |
| Packaged Height: | 2.9 Inches | Country of Origin: | China |
Dimensions
| Threads: | M20x1.5 | Oil Hole Diameter - mm: | 4 mm |
| Roller Width - mm: | 24 mm | Stud Length - mm: | 40.5 mm |
| Roller Diameter - mm: | 47 mm | Minimum Thread Length: | 21 |
| Oil Hole Center - mm: | 9 mm | Stud Diameter - mm: | 20 mm |
| Overall Length - mm: | 66 mm | Lubrication Fitting Size - Metric: | 8 |
| Reamed Hole - mm: | 8 mm |
Technical Specifications
| Dynamic Track Roller Load Rating (N): | 25,690 N | Rolling Element: | Needle Roller - Full Complement |
| Adjustment: | None | Limiting Speed: | 2,600 |
| O.D. Configuration: | Cylindrical | Sealing: | Sealed |
| Dynamic Radial Rating: | 5,776 | Hex/Slot: | Screwdriver Slot |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud | Dynamic Load Rating - N: | 30,790 |
| Roller Shape: | Cylindrical | Clamping Torque - Nm: | 118 |
| Tolerance Class: | P0 Equivalent | Industry Standard: | DIN |
| Static Track Roller Load Rating: | 46,700 | Static Load Rating: | 46,700 |
| Platform: | CAMROL® |
