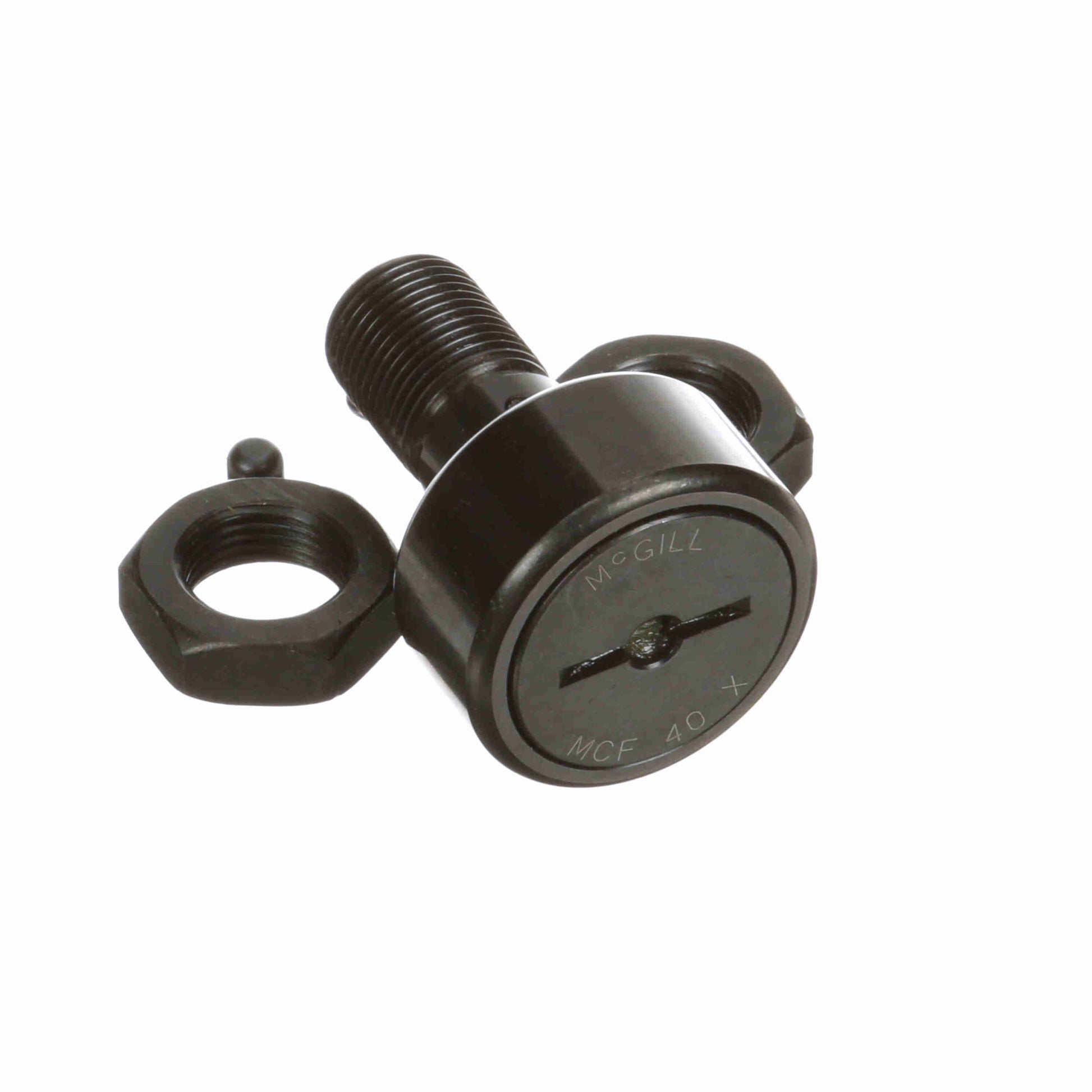

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCF 40 X
General Specifications
UPC: | 726166020828 | Weight: | 1.11 LB |
Packaged Length: | 1.8 Inches | Packaged Width: | 1.7 Inches |
Packaged Height: | 2.5 Inches | Country of Origin: | China |
Dimensions
Threads: | M18x1.5 | Minimum Thread Length: | 19 |
Lubrication Fitting Size - Metric: | 6 | Reamed Hole - mm: | 6 mm |
Stud Length - mm: | 36.5 mm | Oil Hole Diameter - mm: | 3 mm |
Oil Hole Center - mm: | 8 mm | Stud Diameter - mm: | 18 mm |
Roller Width - mm: | 20 mm | Roller Diameter - mm: | 40 mm |
Overall Length - mm: | 58 mm |
Technical Specifications
Adjustment: | None | Dynamic Radial Rating: | 4,366 |
O.D. Configuration: | Cylindrical | Dynamic Track Roller Load Rating (N): | 19,420 N |
Limiting Speed: | 3,300 | Sealing: | Unsealed |
Rolling Element: | Needle Roller - Full Complement | Hex/Slot: | Screwdriver Slot |
Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
Dynamic Load Rating - lb: | 2,460 | Tolerance Class: | P0 Equivalent |
Static Load Rating: | 32,200 | Roller Shape: | Cylindrical |
Platform: | CAMROL® | Industry Standard: | DIN |
Clamping Torque - Nm: | 85 | Dynamic Load Rating - N: | 23,240 |
Stud Type: | Standard Stud | Static Track Roller Load Rating: | 32,200 |
Lubrication Hole Location: | Stud side |
