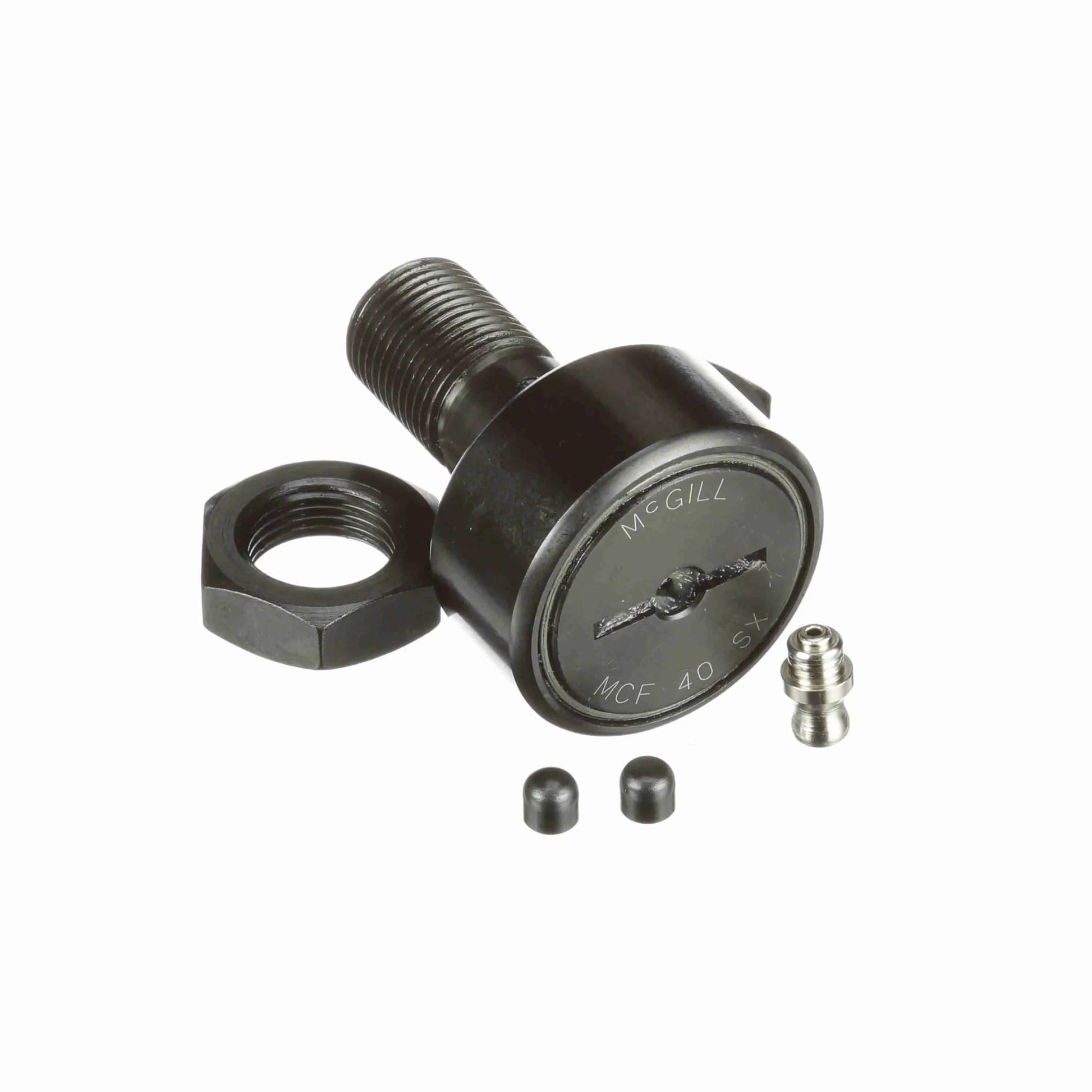

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCF 40 SX
General Specifications
| UPC: | 726166020880 | Weight: | 0.66 LB |
| Packaged Length: | 1.9 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 2.4 Inches | Country of Origin: | China |
Dimensions
| Threads: | M18x1.5 | Stud Length - mm: | 36.5 mm |
| Oil Hole Center - mm: | 8 mm | Reamed Hole - mm: | 6 mm |
| Stud Diameter - mm: | 18 mm | Overall Length - mm: | 58 mm |
| Minimum Thread Length: | 19 | Roller Width - mm: | 20 mm |
| Oil Hole Diameter - mm: | 3 mm | Roller Diameter - mm: | 40 mm |
| Lubrication Fitting Size - Metric: | 6 |
Technical Specifications
| O.D. Configuration: | Cylindrical | Adjustment: | None |
| Limiting Speed: | 3,300 | Sealing: | Sealed |
| Hex/Slot: | Screwdriver Slot | Dynamic Track Roller Load Rating (N): | 19,420 N |
| Dynamic Radial Rating: | 4,366 | Rolling Element: | Needle Roller - Full Complement |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Industry Standard: | DIN | Stud Type: | Standard Stud |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Platform: | CAMROL® | Clamping Torque - Nm: | 85 |
| Static Track Roller Load Rating: | 32,200 | Static Load Rating: | 32,200 |
| Dynamic Load Rating - N: | 23,240 |
