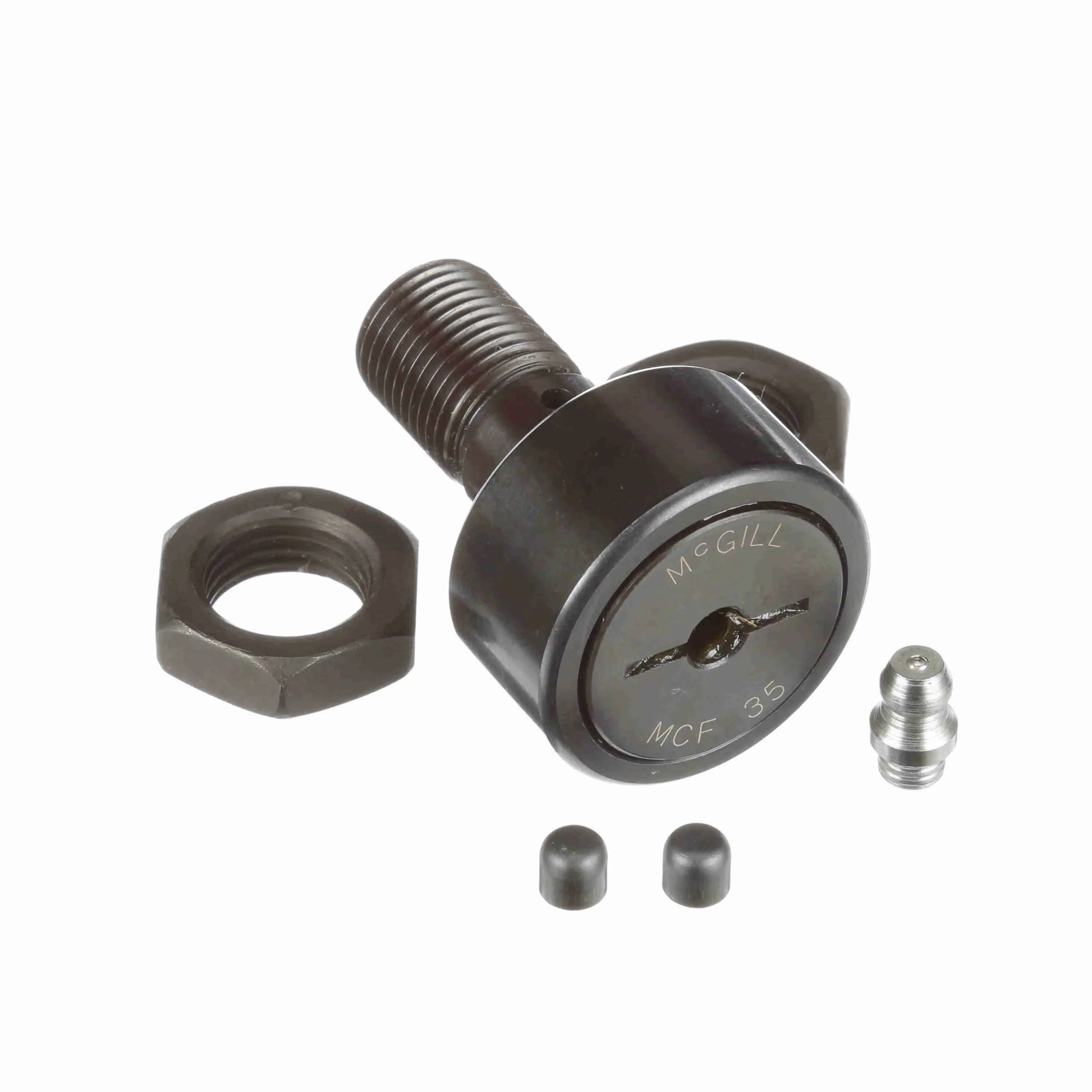

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCF 35
General Specifications
| UPC: | 726166019952 | Weight: | 0.48 LB |
| Packaged Length: | 1.9 Inches | Packaged Width: | 2.3 Inches |
| Packaged Height: | 1.8 Inches | Country of Origin: | China |
Dimensions
| Threads: | M16x1.5 | Lubrication Fitting Size - Metric: | 6 |
| Roller Width - mm: | 18 mm | Stud Diameter - mm: | 16 mm |
| Minimum Thread Length: | 18 | Stud Length - mm: | 32.5 mm |
| Oil Hole Diameter - mm: | 3 mm | Overall Length - mm: | 52 mm |
| Reamed Hole - mm: | 6 mm | Oil Hole Center - mm: | 8 mm |
| Roller Diameter - mm: | 35 mm |
Technical Specifications
| Hex/Slot: | Screwdriver Slot | Adjustment: | None |
| Dynamic Radial Rating: | 3,815 | Sealing: | Unsealed |
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Crowned |
| Limiting Speed: | 4,200 | Dynamic Track Roller Load Rating (N): | 16,970 N |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Track Roller Load Rating: | 28,500 | Industry Standard: | DIN / JIS |
| Platform: | CAMROL® | Dynamic Load Rating - N: | 20,300 |
| Roller Shape: | Crowned | Static Load Rating: | 28,500 |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - lb: | 2,360 |
| Stud Type: | Standard Stud | Clamping Torque - Nm: | 57 |
| Lubrication Hole Location: | Stud side |
