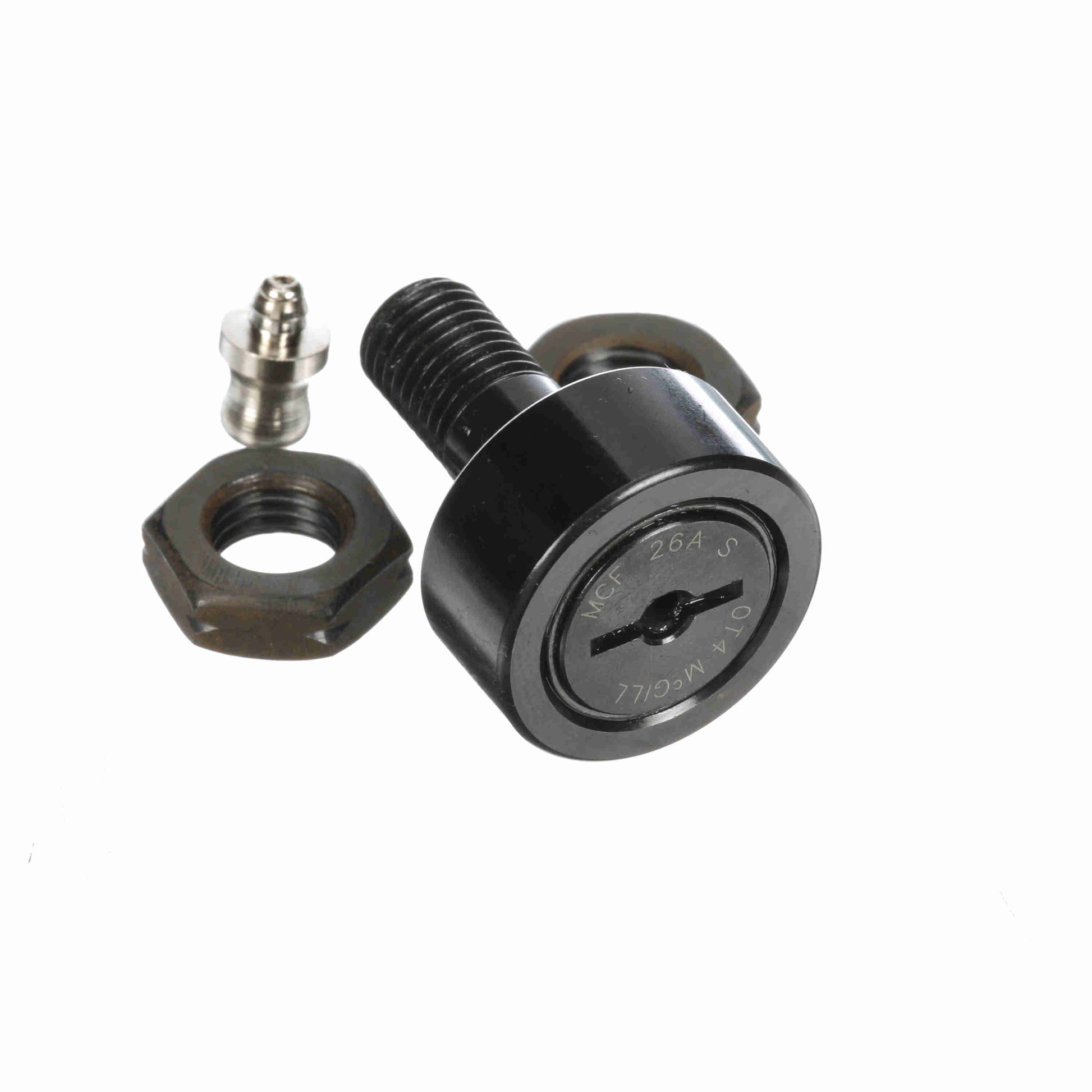

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCF 26A S
General Specifications
| UPC: | 726166017293 | Weight: | 0.18 LB |
| Packaged Length: | 1.3 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1.25 | Overall Length - mm: | 36 mm |
| Roller Width - mm: | 12 mm | Lubrication Fitting Size - Metric: | 4 |
| Stud Diameter - mm: | 10 mm | Reamed Hole - mm: | 4 mm |
| Roller Diameter - mm: | 26 mm | Minimum Thread Length: | 13 |
| Stud Length - mm: | 23 mm |
Technical Specifications
| Rolling Element: | Needle Roller - Full Complement | Dynamic Radial Rating: | 1,765 |
| Sealing: | Sealed | O.D. Configuration: | Crowned |
| Limiting Speed: | 9,000 | Dynamic Track Roller Load Rating (N): | 7,850 N |
| Hex/Slot: | Screwdriver Slot | Adjustment: | None |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 10,400 | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Static Track Roller Load Rating: | 10,400 |
| Stud Type: | Standard Stud | Clamping Torque - Nm: | 15 |
| Roller Shape: | Crowned | Industry Standard: | JIS |
| Dynamic Load Rating - N: | 9,410 |
