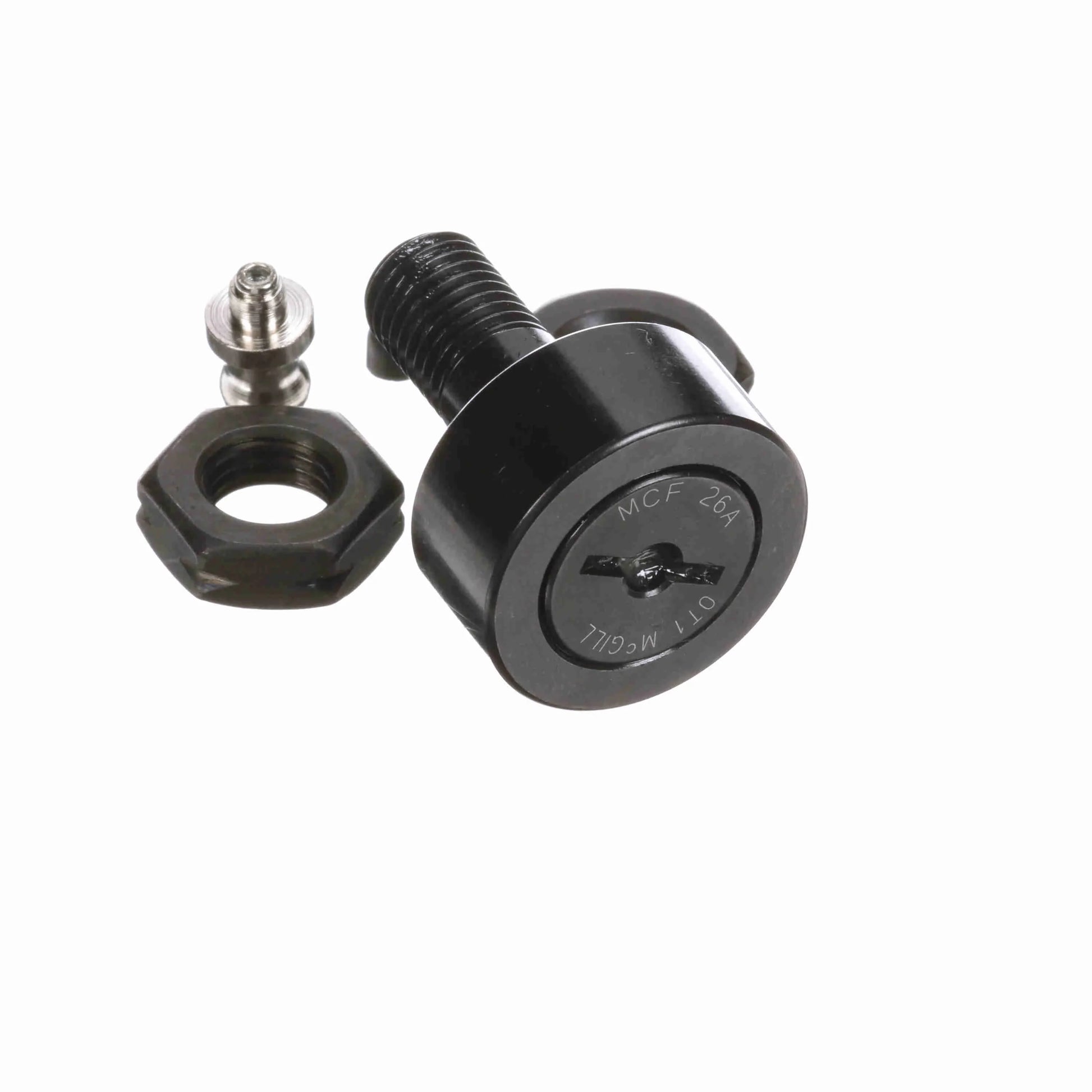

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCF 26A
General Specifications
| UPC: | 726166017194 | Weight: | 0.17 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1.25 | Stud Length - mm: | 23 mm |
| Roller Diameter - mm: | 26 mm | Lubrication Fitting Size - Metric: | 4 |
| Minimum Thread Length: | 13 | Roller Width - mm: | 12 mm |
| Reamed Hole - mm: | 4 mm | Stud Diameter - mm: | 10 mm |
| Overall Length - mm: | 36 mm |
Technical Specifications
| Sealing: | Unsealed | Dynamic Radial Rating: | 1,765 |
| Rolling Element: | Needle Roller - Full Complement | Limiting Speed: | 9,000 |
| Adjustment: | None | O.D. Configuration: | Crowned |
| Dynamic Track Roller Load Rating (N): | 7,850 N | Hex/Slot: | Screwdriver Slot |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 10,400 | Clamping Torque - Nm: | 15 |
| Static Track Roller Load Rating: | 10,400 | Dynamic Load Rating - lb: | 2,460 |
| Industry Standard: | JIS | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Crowned | Stud Type: | Standard Stud |
| Platform: | CAMROL® | Dynamic Load Rating - N: | 9,410 |
| Lubrication Hole Location: | Stud side |
