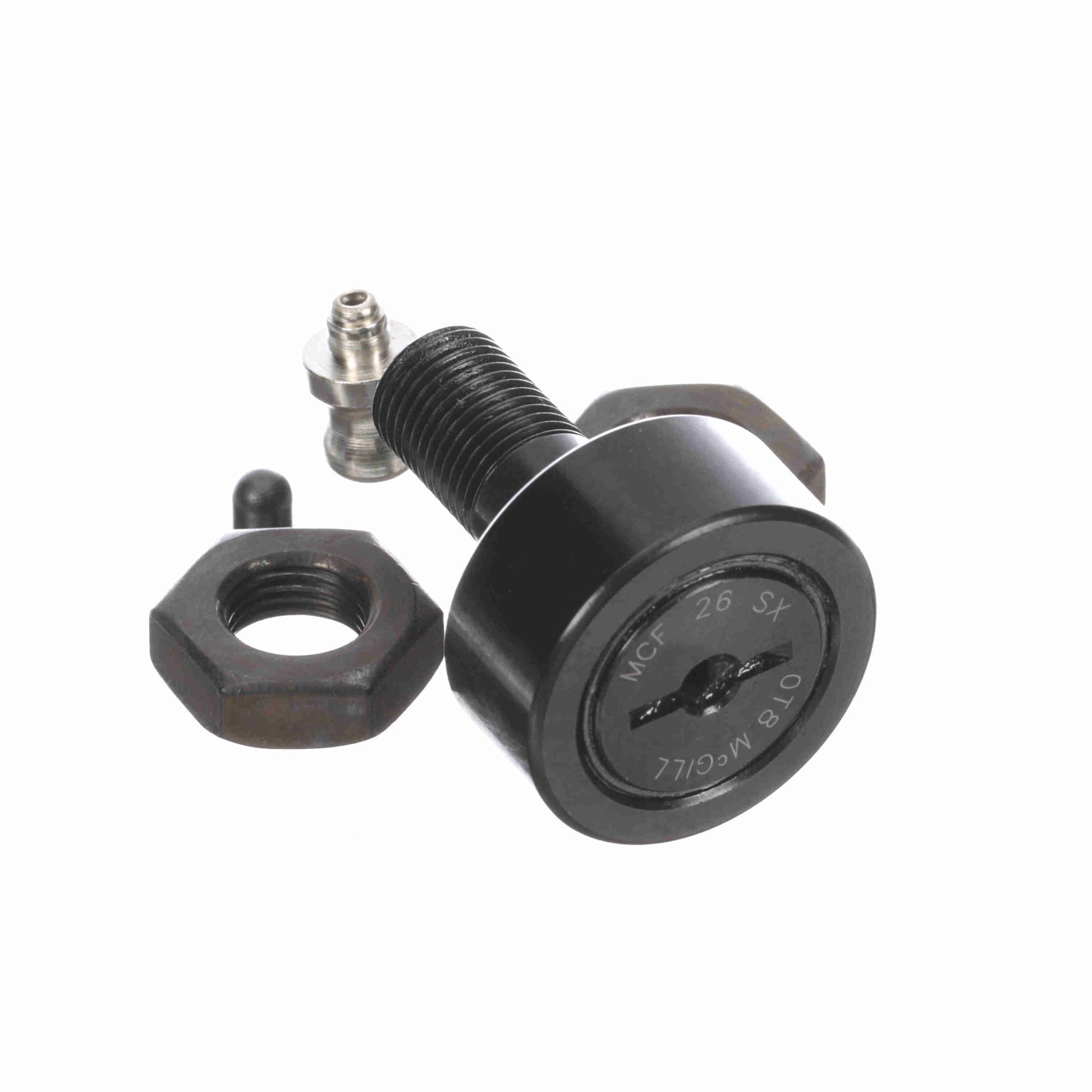

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCF 26 SX
General Specifications
| UPC: | 726166017163 | Weight: | 0.17 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1 | Minimum Thread Length: | 12 |
| Lubrication Fitting Size - Metric: | 4 | Stud Length - mm: | 23 mm |
| Reamed Hole - mm: | 4 mm | Overall Length - mm: | 36 mm |
| Stud Diameter - mm: | 10 mm | Roller Width - mm: | 12 mm |
| Roller Diameter - mm: | 26 mm |
Technical Specifications
| O.D. Configuration: | Cylindrical | Rolling Element: | Needle Roller - Full Complement |
| Dynamic Track Roller Load Rating (N): | 7,850 N | Adjustment: | None |
| Limiting Speed: | 9,000 | Hex/Slot: | Screwdriver Slot |
| Sealing: | Sealed | Dynamic Radial Rating: | 1,765 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Roller Shape: | Cylindrical | Clamping Torque - Nm: | 15 |
| Tolerance Class: | P0 Equivalent | Static Track Roller Load Rating: | 10,400 |
| Industry Standard: | DIN | Stud Type: | Standard Stud |
| Static Load Rating: | 10,400 | Dynamic Load Rating - N: | 9,410 |
| Platform: | CAMROL® |
