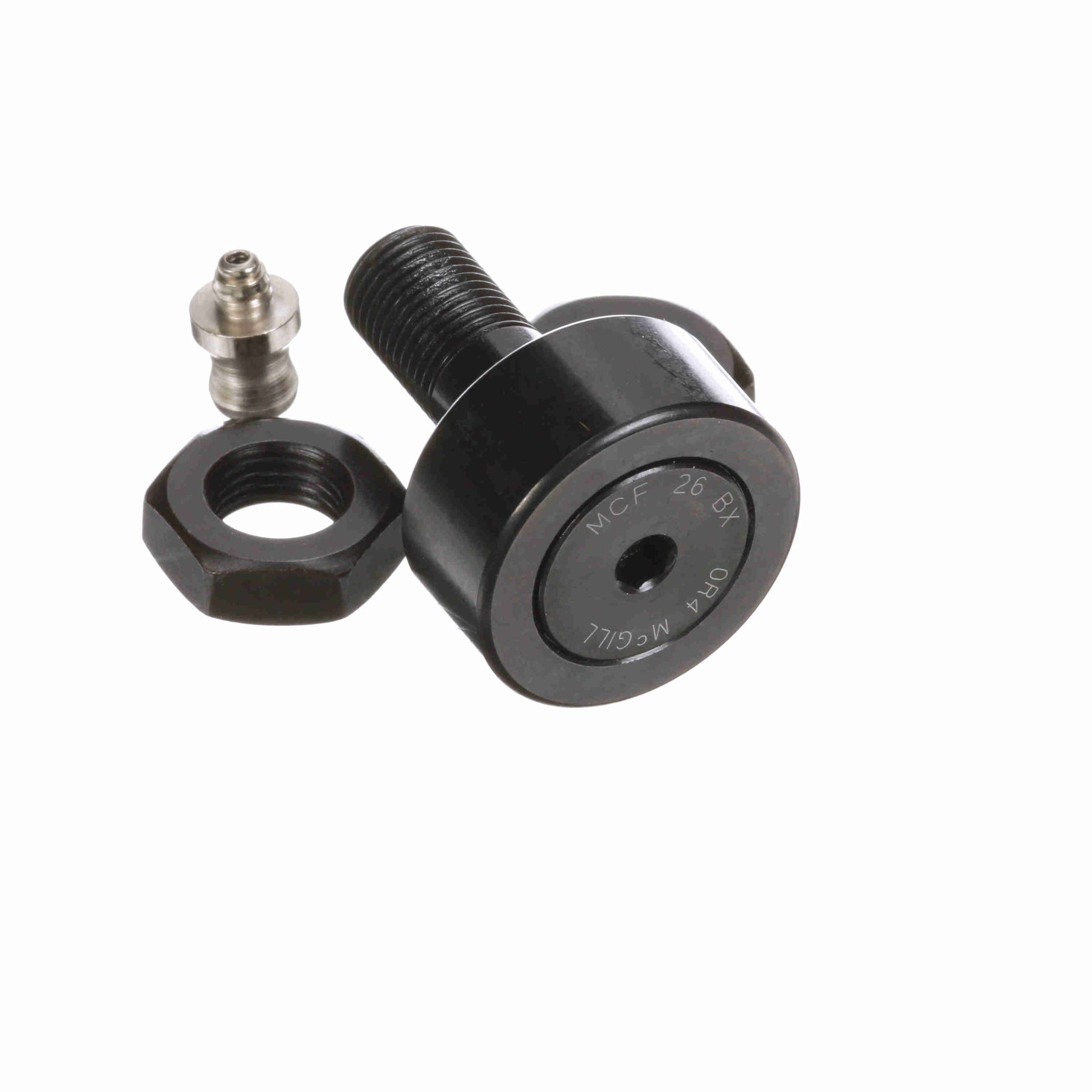

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Hex Hole - MCF 26 BX
General Specifications
| UPC: | 726166017583 | Weight: | 0.19 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.2 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1 | Lubrication Fitting Size - Metric: | 4 |
| Hex Socket - mm: | 4 mm | Minimum Thread Length: | 12 |
| Reamed Hole - mm: | 4 mm | Stud Diameter - mm: | 10 mm |
| Stud Length - mm: | 23 mm | Overall Length - mm: | 36 mm |
| Roller Width - mm: | 12 mm | Roller Diameter - mm: | 26 mm |
Technical Specifications
| Hex/Slot: | Hex Hole | Rolling Element: | Needle Roller - Full Complement |
| Dynamic Radial Rating: | 1,765 | Sealing: | Unsealed |
| Limiting Speed: | 9,000 | Adjustment: | None |
| O.D. Configuration: | Cylindrical | Dynamic Track Roller Load Rating (N): | 7,850 N |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Track Roller Load Rating: | 10,400 | Industry Standard: | DIN |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - N: | 9,410 |
| Static Load Rating: | 10,400 | Clamping Torque - Nm: | 15 |
| Roller Shape: | Cylindrical | Stud Type: | Standard Stud |
| Platform: | CAMROL® |
