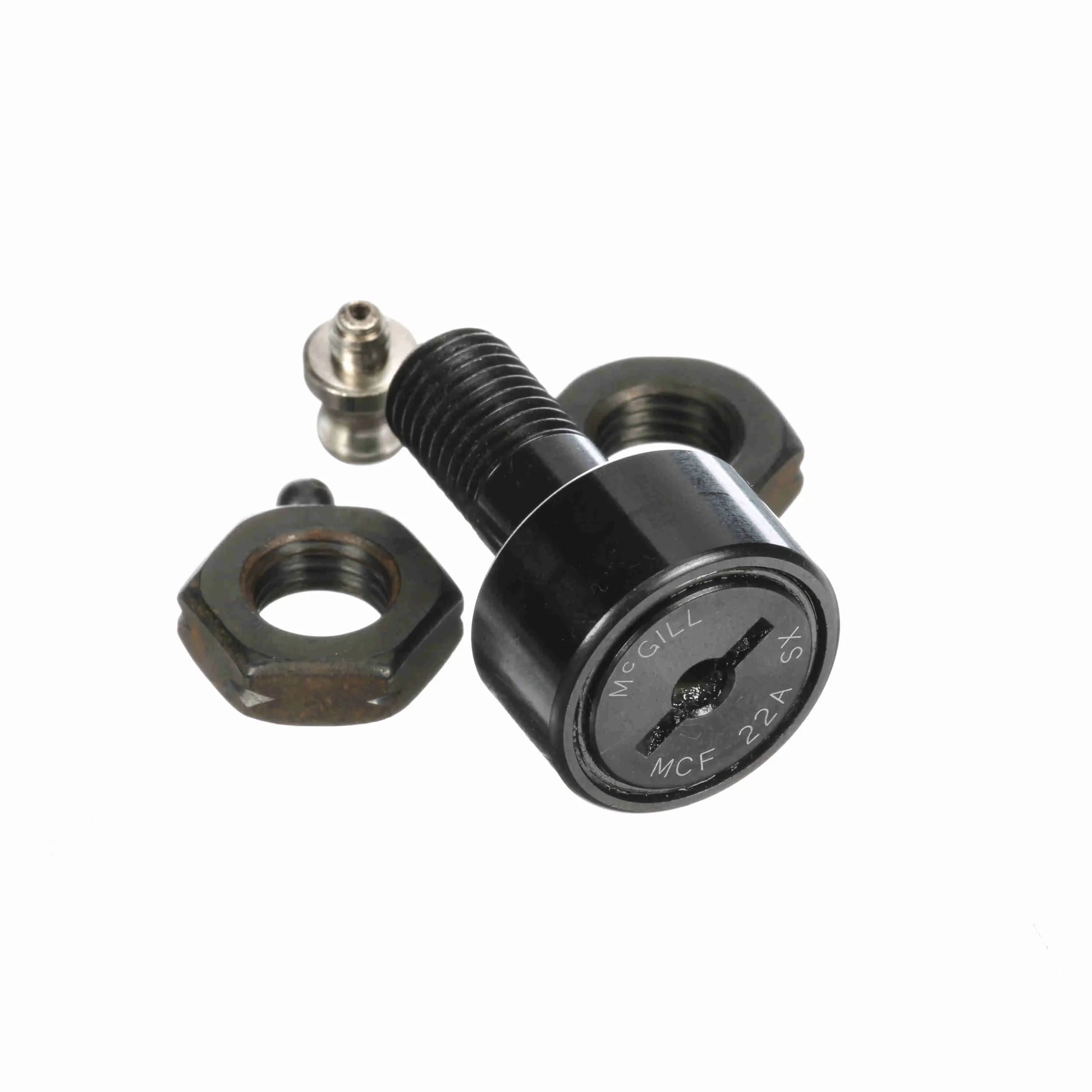

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCF 22A SX
General Specifications
| UPC: | 726166016098 | Weight: | 0.56 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1.25 | Roller Width - mm: | 12 mm |
| Roller Diameter - mm: | 22 mm | Stud Length - mm: | 23 mm |
| Minimum Thread Length: | 13 | Lubrication Fitting Size - Metric: | 4 |
| Overall Length - mm: | 36 mm | Reamed Hole - mm: | 4 mm |
| Stud Diameter - mm: | 10 mm |
Technical Specifications
| Hex/Slot: | Screwdriver Slot | Limiting Speed: | 9,000 |
| Rolling Element: | Needle Roller - Full Complement | Dynamic Track Roller Load Rating (N): | 7,850 N |
| Sealing: | Sealed | Dynamic Radial Rating: | 1,765 |
| Adjustment: | None | O.D. Configuration: | Cylindrical |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud | Platform: | CAMROL® |
| Static Track Roller Load Rating: | 10,400 | Industry Standard: | JIS |
| Clamping Torque - Nm: | 15 | Roller Shape: | Cylindrical |
| Static Load Rating: | 10,400 | Tolerance Class: | P0 Equivalent |
| Dynamic Load Rating - N: | 9,410 |
