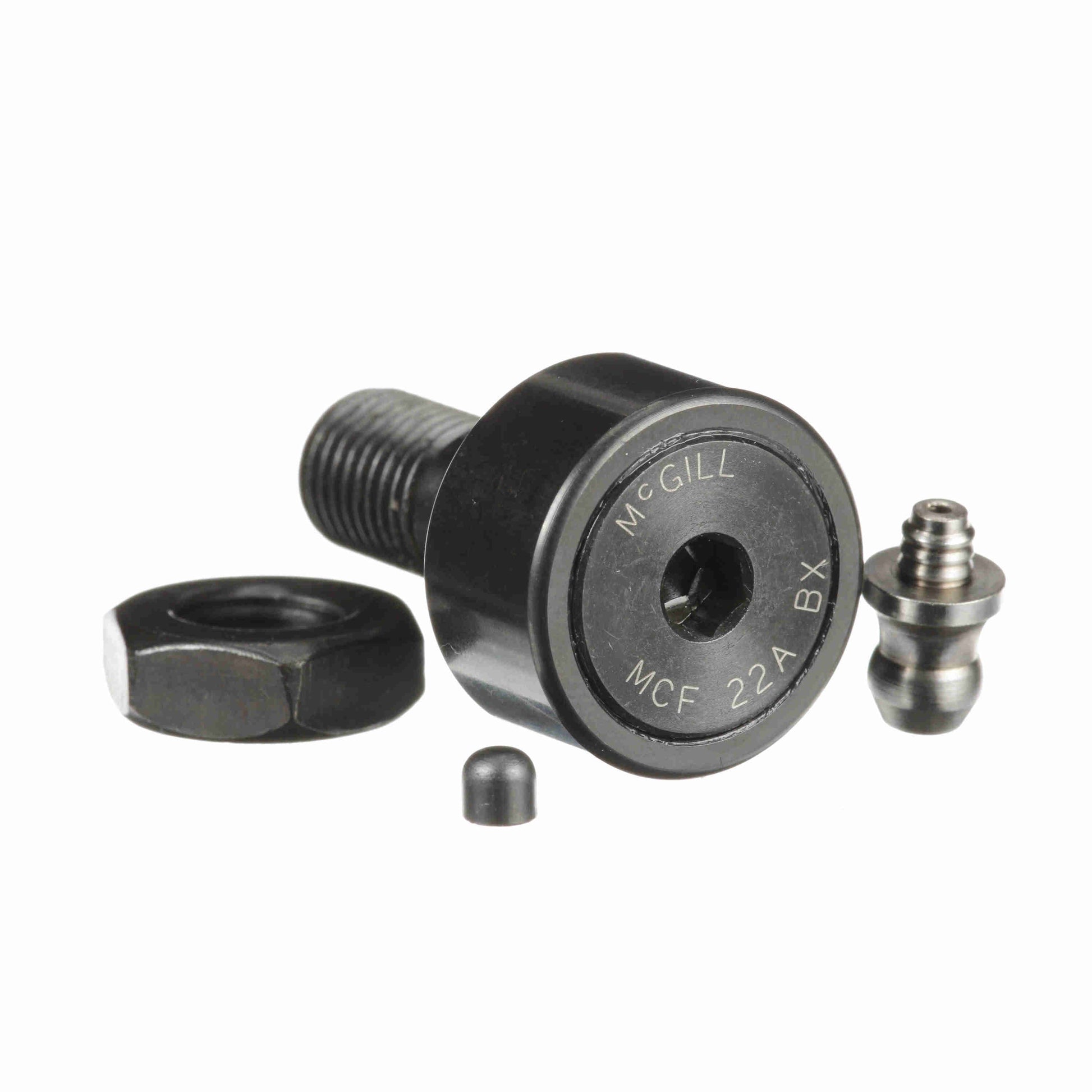

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Hex Hole - MCF 22A BX
General Specifications
| UPC: | 726166016180 | Weight: | 0.15 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.2 Inches |
| Packaged Height: | 0.6 Inches |
Dimensions
| Threads: | M10x1.25 | Roller Width - mm: | 12 mm |
| Overall Length - mm: | 36 mm | Hex Socket - mm: | 5 mm |
| Lubrication Fitting Size - Metric: | 4 | Reamed Hole - mm: | 4 mm |
| Stud Length - mm: | 23 mm | Minimum Thread Length: | 13 |
| Roller Diameter - mm: | 22 mm | Stud Diameter - mm: | 10 mm |
Technical Specifications
| Adjustment: | None | Dynamic Track Roller Load Rating (N): | 7,850 N |
| Sealing: | Unsealed | Dynamic Radial Rating: | 1,765 |
| Relubricatable: | Yes | Rolling Element: | Needle Roller - Full Complement |
| Limiting Speed: | 9,000 | Hex/Slot: | Hex Hole |
| O.D. Configuration: | Cylindrical | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Static Track Roller Load Rating: | 10,400 | Static Load Rating: | 2,338 |
| Stud Type: | Standard Stud | Clamping Torque - Nm: | 15 |
| Platform: | CAMROL® | Dynamic Load Rating - N: | 9,410 |
| Industry Standard: | JIS |
