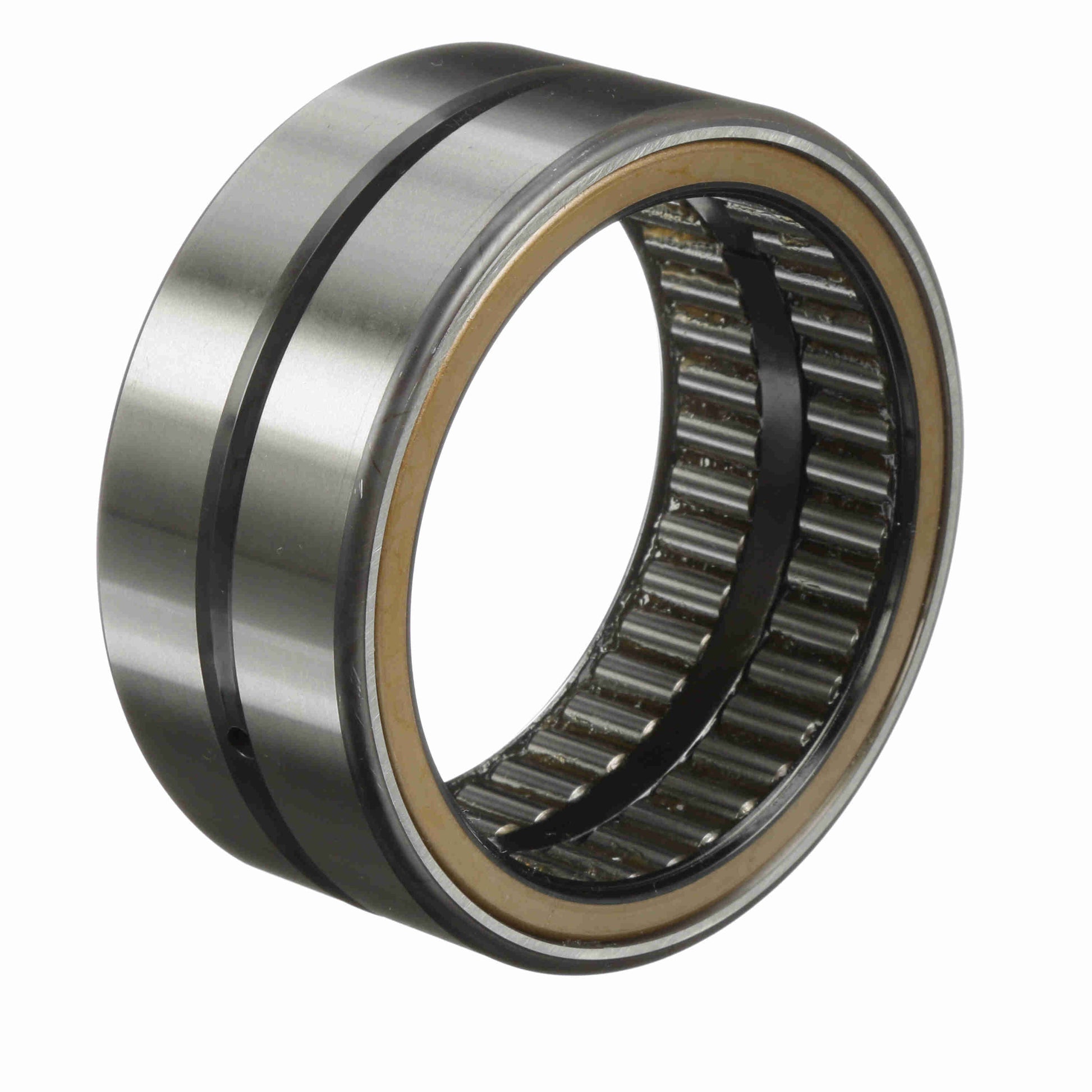

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 60 SS
General Specifications
| UPC: | 726166063276 | Weight: | 3.06 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Housing & Shaft Fillet (in): | 0.1 in |
| Hole Diameter: | 0.188 | Bore Size - Inch: | 3.7500 in |
| Outside Diameter - Inch: | 4.75 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Misalignment: | No | Seal Type: | Rubber Lip |
| Bore Type: | Straight | Number of Rows: | 1 |
| Platform: | Guiderol Bearing | Speed (Max) Grease: | 1,020 |
| Static Load Rating (lb): | 92,300 lb | Duplexing: | No |
| Full Complement/Caged: | Full Complement | Dynamic Load Rating: | 25,450 |
| Sealed: | Sealed - Both Sides | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 50 |
| Operating Temperature Range: | -20 to 250 °F | Flanges: | No Flanges |
| Lubrication Hole Type: | Lubrication Groove & Hole | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
