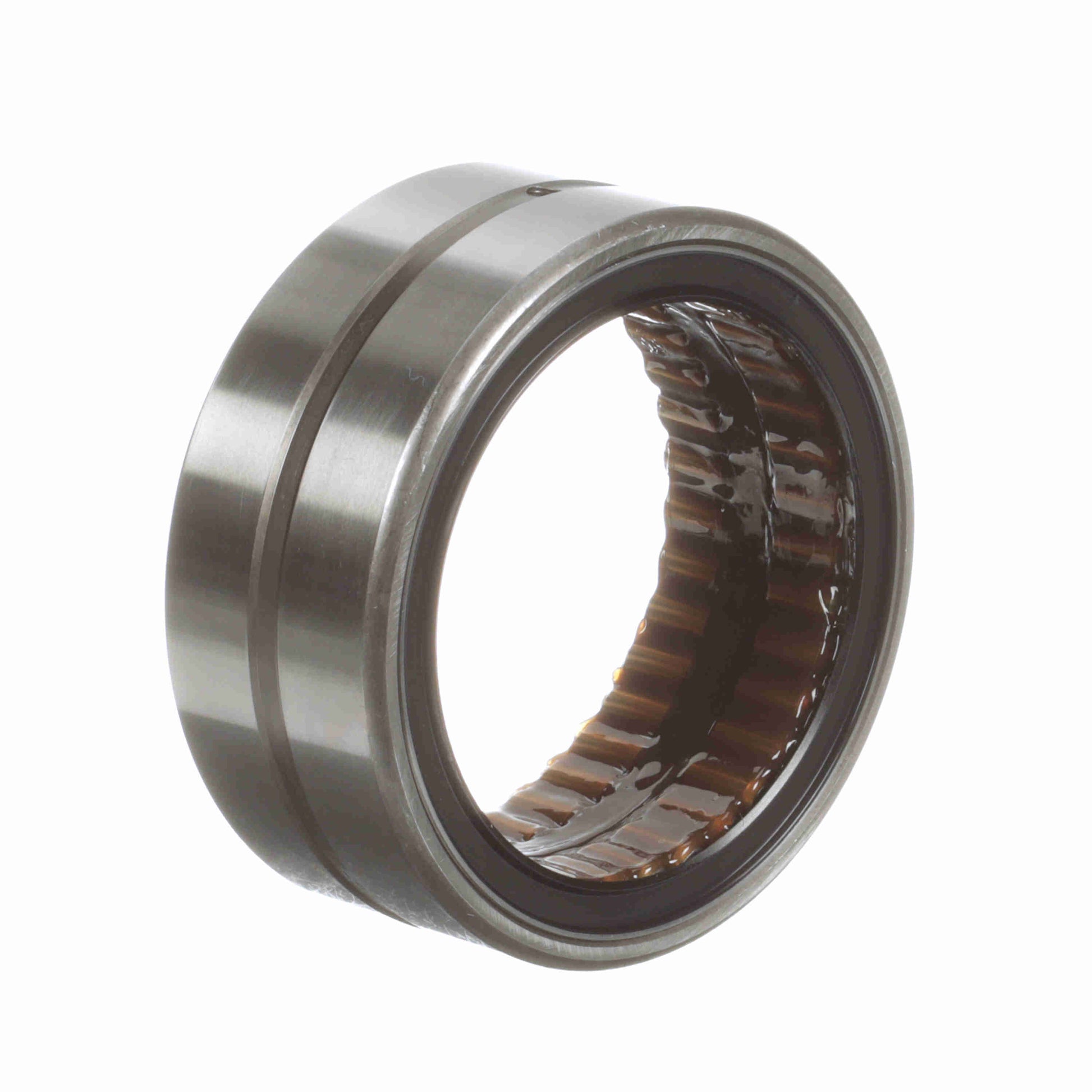

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 52 RS
General Specifications
| UPC: | 726166063115 | Weight: | 2.64 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.08 in |
| Hole Diameter: | 0.188 | Outside Diameter - Inch: | 4.25 in |
| Bore Size - Inch: | 3.2500 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Misalignment: | No | Seal Type: | Rubber Lip |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Speed (Max) Grease: | 1,180 | Static Load Rating (lb): | 63,800 lb |
| Duplexing: | No | Full Complement/Caged: | Full Complement |
| Platform: | Guiderol Bearing | Sealed: | Sealed - One Side |
| Dynamic Load Rating: | 20,050 | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 42 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Sealed One Side |
| Retainer: | No |
