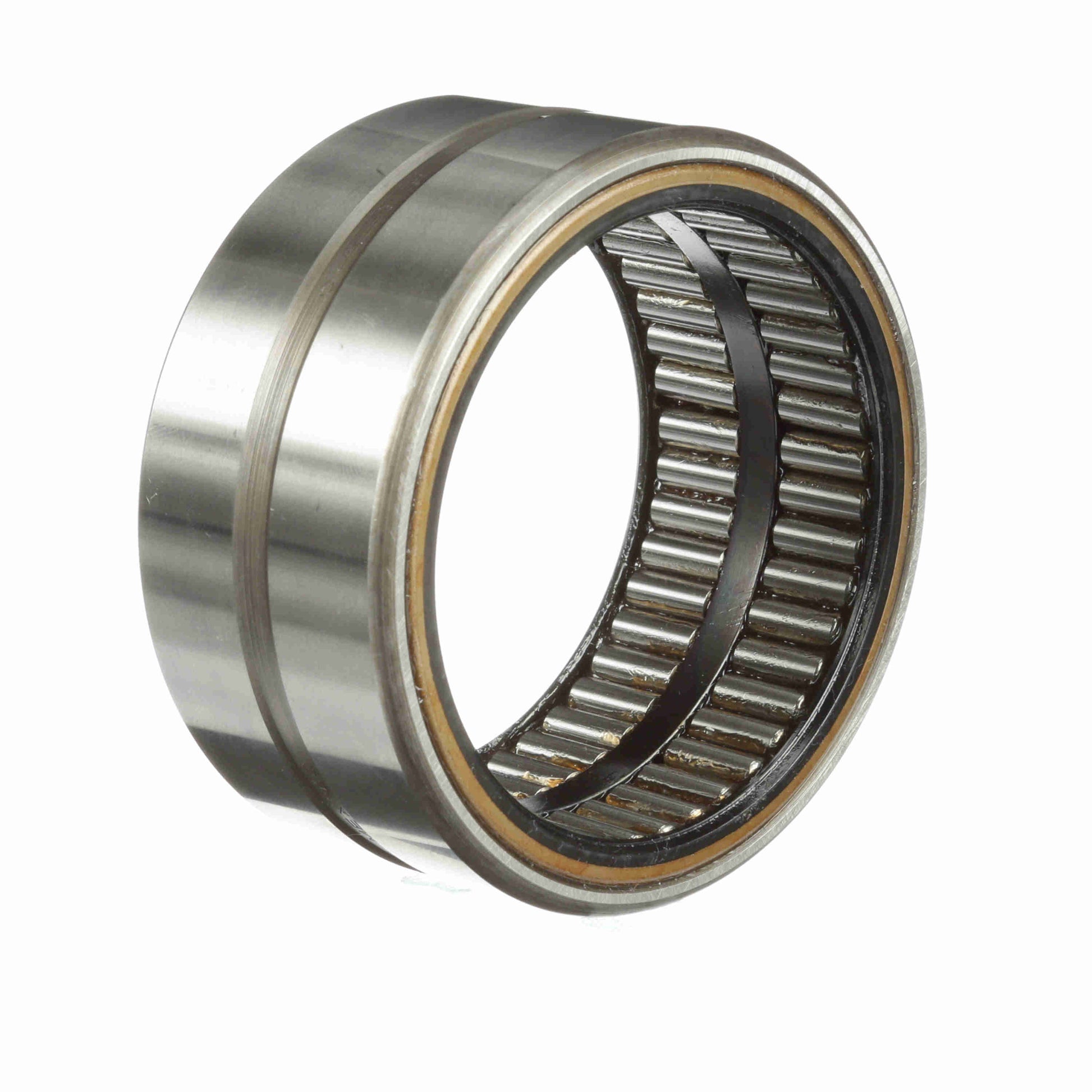

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - Sealed - GR 48 SS
General Specifications
| UPC: | 726166062972 | Weight: | 1.63 LB |
| Packaged Length: | 3.87 Inches | Packaged Width: | 1.87 Inches |
| Packaged Height: | 3.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Hole Diameter: | 0.125 |
| Housing & Shaft Fillet (in): | 0.08 in | Bore Size - Inch: | 3 in |
| Outside Diameter - Inch: | 3.75 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Misalignment: | No | Number of Rows: | 1 |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Rolling Element: | Needle Roller | Seal Type: | Rubber Lip |
| Speed (Max) Grease: | 1,270 | Full Complement/Caged: | Full Complement |
| Sealed: | Sealed - Both Sides | Static Load Rating (lb): | 65,400 lb |
| Dynamic Load Rating: | 17,350 | Duplexing: | No |
| Platform: | Guiderol Bearing | Lubrication Hole Type: | Lubrication Groove & Hole |
| Flanges: | No Flanges | Standard Met: | ABMA, ISO |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 38 | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | No |
