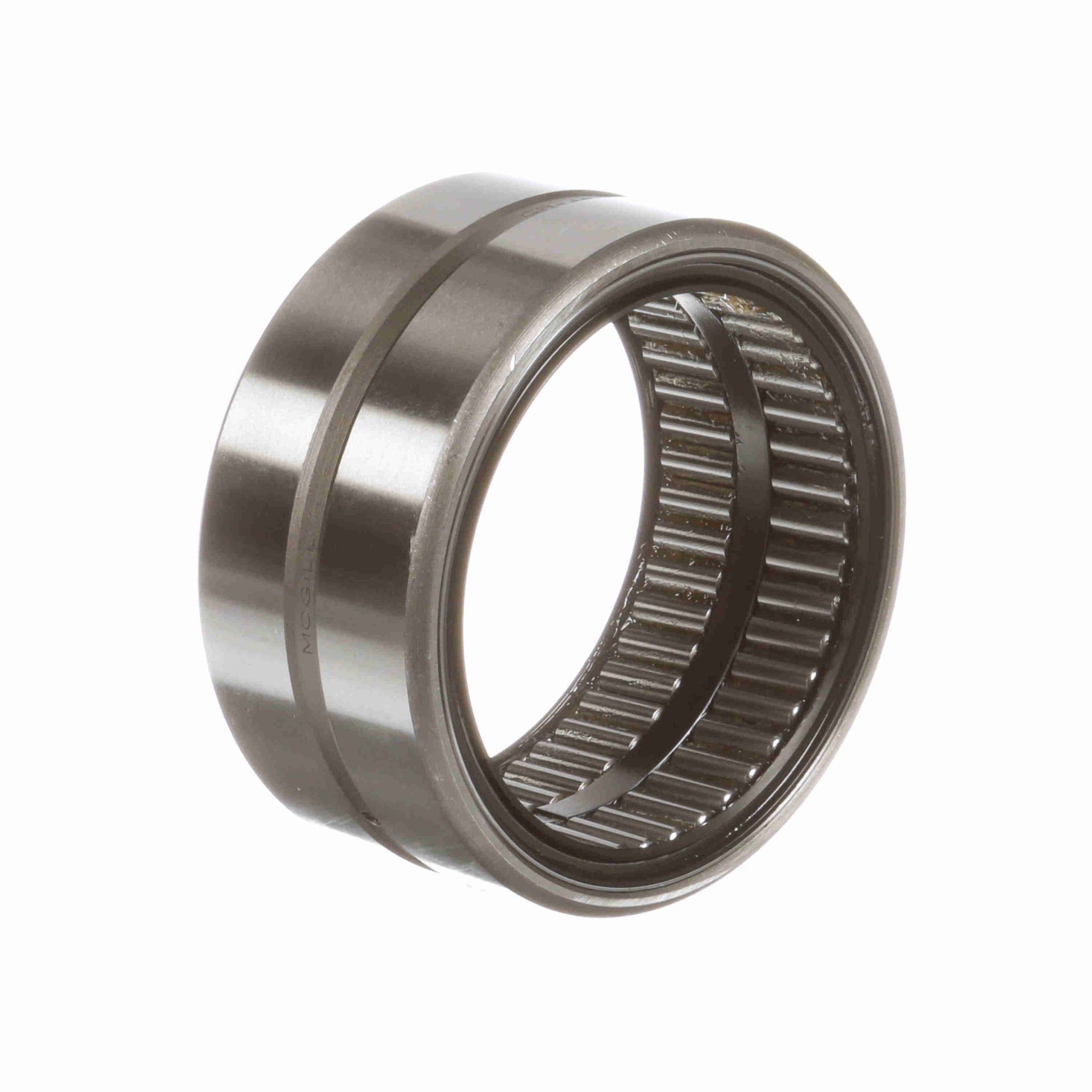

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 48 RSS
General Specifications
| UPC: | 726166062996 | Weight: | 1.53 LB |
| Packaged Length: | 3.87 Inches | Packaged Width: | 1.87 Inches |
| Packaged Height: | 3.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Outside Diameter - Inch: | 3.75 in |
| Housing & Shaft Fillet (in): | 0.08 in | Hole Diameter: | 0.125 |
| Bore Size - Inch: | 3 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Static Load Rating (lb): | 65,400 lb | Sealed: | Sealed - Both Sides |
| Platform: | Guiderol Bearing | Full Complement/Caged: | Full Complement |
| Speed (Max) Grease: | 1,270 | Duplexing: | No |
| Dynamic Load Rating: | 17,350 | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 38 |
| Precision Rating: | RBEC-1 | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | No |
