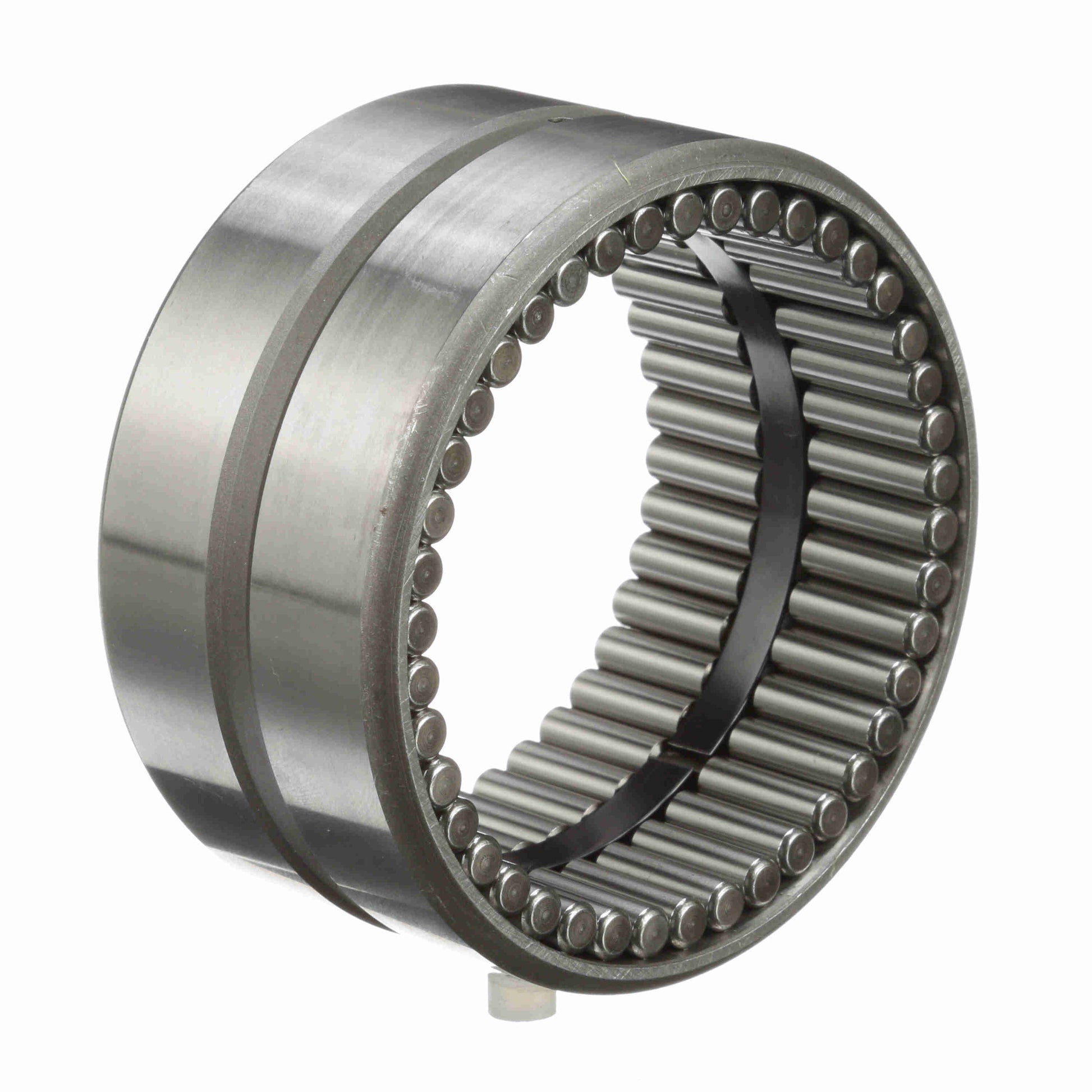

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 44
General Specifications
| UPC: | 726166062781 | Weight: | 1.52 LB |
| Packaged Length: | 3.8 Inches | Packaged Width: | 3.8 Inches |
| Packaged Height: | 2.2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Outside Diameter - Inch: | 3.5 in |
| Housing & Shaft Fillet (in): | 0.08 in | Bore Size - Inch: | 2.7500 in |
| Hole Diameter: | 0.125 |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Bore Type: | Straight | Misalignment: | No |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Duplexing: | No | Dynamic Load Rating: | 20,350 |
| Speed (Max) Grease: | 1,100 | Platform: | Guiderol Bearing |
| Speed (Max) Oil: | 2,200 | Full Complement/Caged: | Full Complement |
| Sealed: | None | Static Load Rating (lb): | 73,400 lb |
| Operating Temperature Range: | -20 to 250 °F | Flanges: | No flange |
| Related Inner Ring: | MI 36 | Lubrication Hole Type: | Lubrication groove and hole |
| Precision Rating: | RBEC-1 | Enclosure: | Open |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
