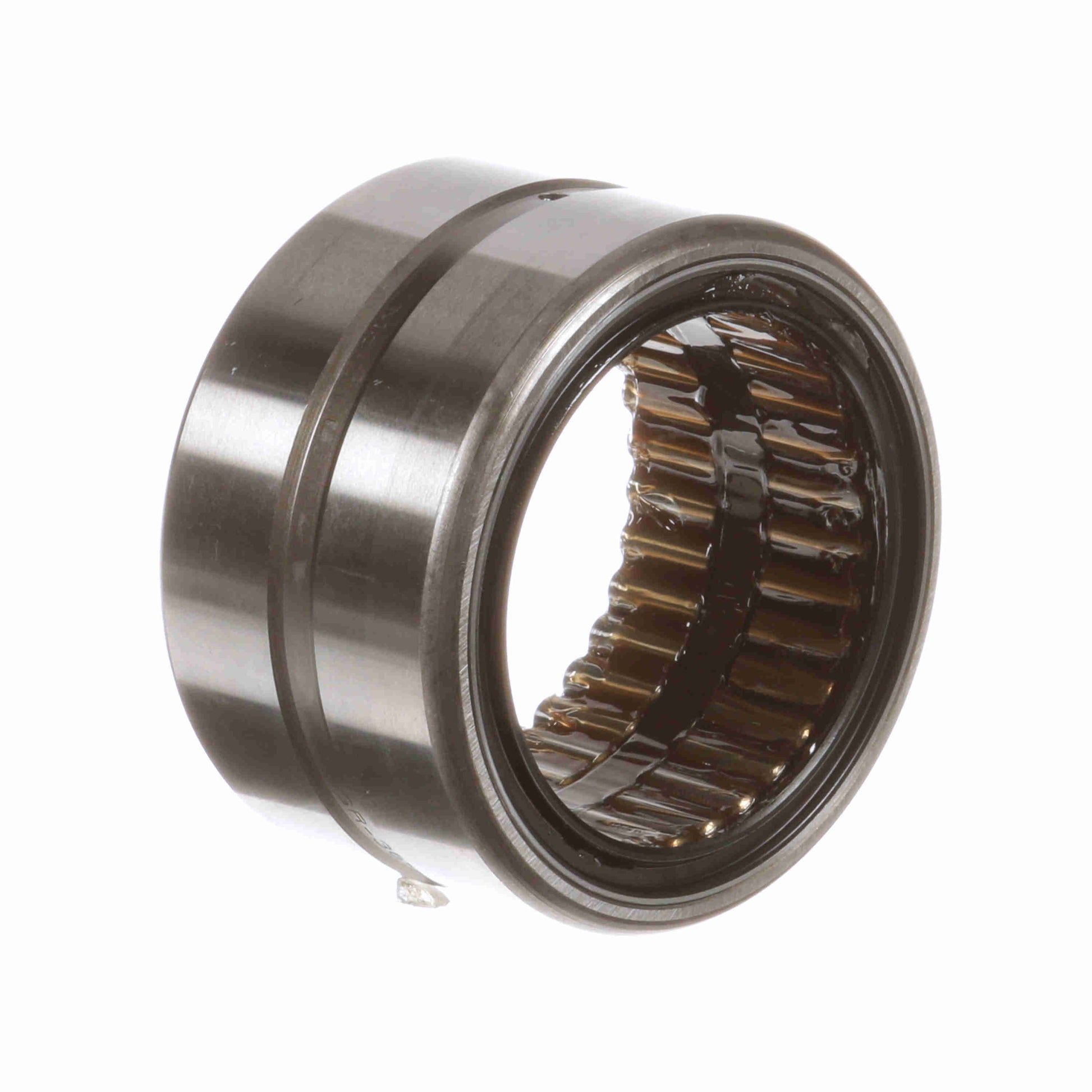

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 36 RS
General Specifications
| UPC: | 726166062613 | Weight: | 1.18 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Hole Diameter: | 0.125 |
| Housing & Shaft Fillet (in): | 0.06 in | Bore Size - Inch: | 2.2500 in |
| Outside Diameter - Inch: | 3 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Number of Rows: | 1 | Misalignment: | No |
| Sealed: | Sealed - One Side | Speed (Max) Grease: | 1,700 |
| Platform: | Guiderol Bearing | Duplexing: | No |
| Full Complement/Caged: | Full Complement | Static Load Rating (lb): | 49,100 lb |
| Dynamic Load Rating: | 15,250 | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 28 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Flanges: | No Flanges | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed One Side |
| Retainer: | No |
