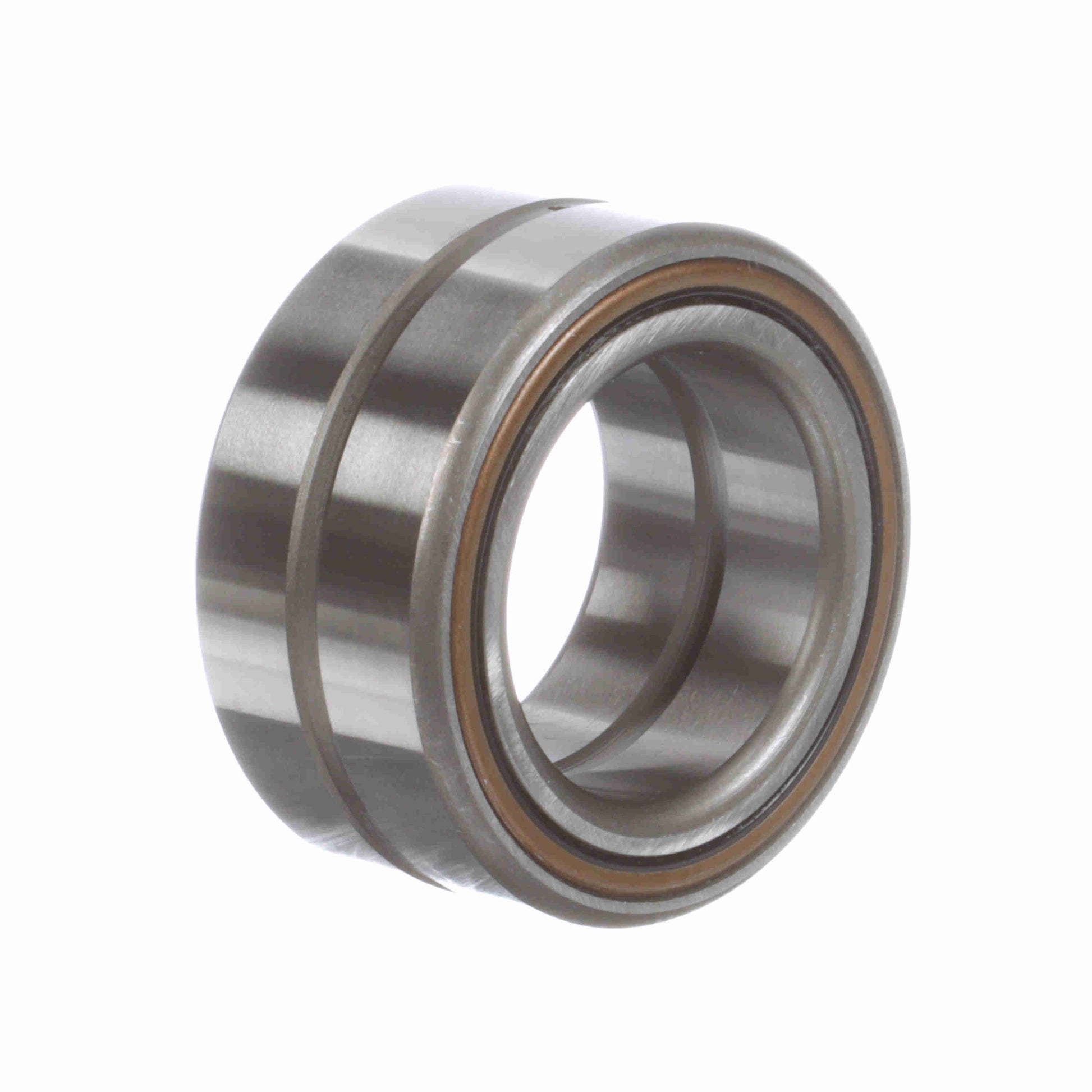

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 32 SS/MI 26
General Specifications
| UPC: | 726166062460 | Weight: | 0.91 LB |
| Packaged Length: | 2.62 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Inner Width: | 1.26 |
| Bore Size - Inch: | 1.6250 in | Outside Diameter - Inch: | 2.5625 in |
| Hole Diameter: | 0.094 | Housing & Shaft Fillet (in): | 0.06 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | Yes |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Seal Type: | Rubber Lip | Radial Clearance: | Normal |
| Misalignment: | No | Bore Type: | Straight |
| Duplexing: | No | Dynamic Load Rating: | 8,000 |
| Static Load Rating (lb): | 26,700 lb | Sealed: | Sealed - Both Sides |
| Full Complement/Caged: | Full Complement | Speed (Max) Grease: | 1,900 |
| Platform: | Guiderol Bearing | Operating Temperature Range: | -20F to 250 °F |
| Standard Met: | ABMA;ISO | Precision Rating: | Not Rated |
| Lubrication Hole Type: | Lubrication Groove & Hole | Separable: | Inner ring - both sides |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Retainer: | No |
