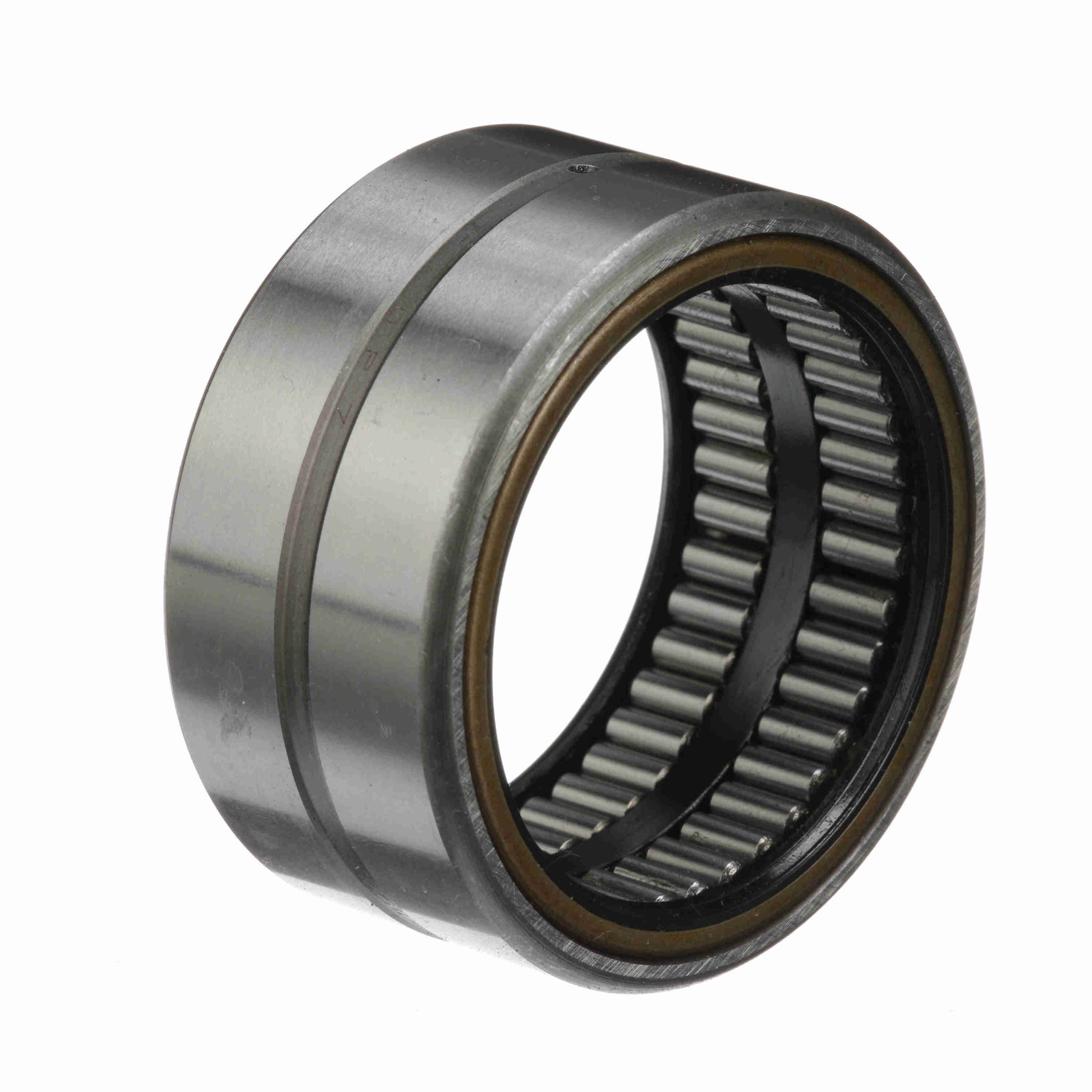

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - Sealed - GR 32 SS
General Specifications
| UPC: | 726166062453 | Weight: | 0.58 LB |
| Packaged Length: | 2.8 Inches | Packaged Width: | 2.7 Inches |
| Packaged Height: | 1.4 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 2.5625 in | Bore Size - Inch: | 2 in |
| Housing & Shaft Fillet (in): | 0.06 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Sealed: | Sealed - Both Sides | Speed (Max) Oil: | 1,900 |
| Static Load Rating (lb): | 26,700 lb | Dynamic Load Rating: | 8,000 |
| Duplexing: | No | Full Complement/Caged: | Full Complement |
| Speed (Max) Grease: | 950 | Platform: | Guiderol Bearing |
| Related Inner Ring: | MI 25 | Flanges: | No flange |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication groove and hole |
| Precision Rating: | RBEC-1 | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
