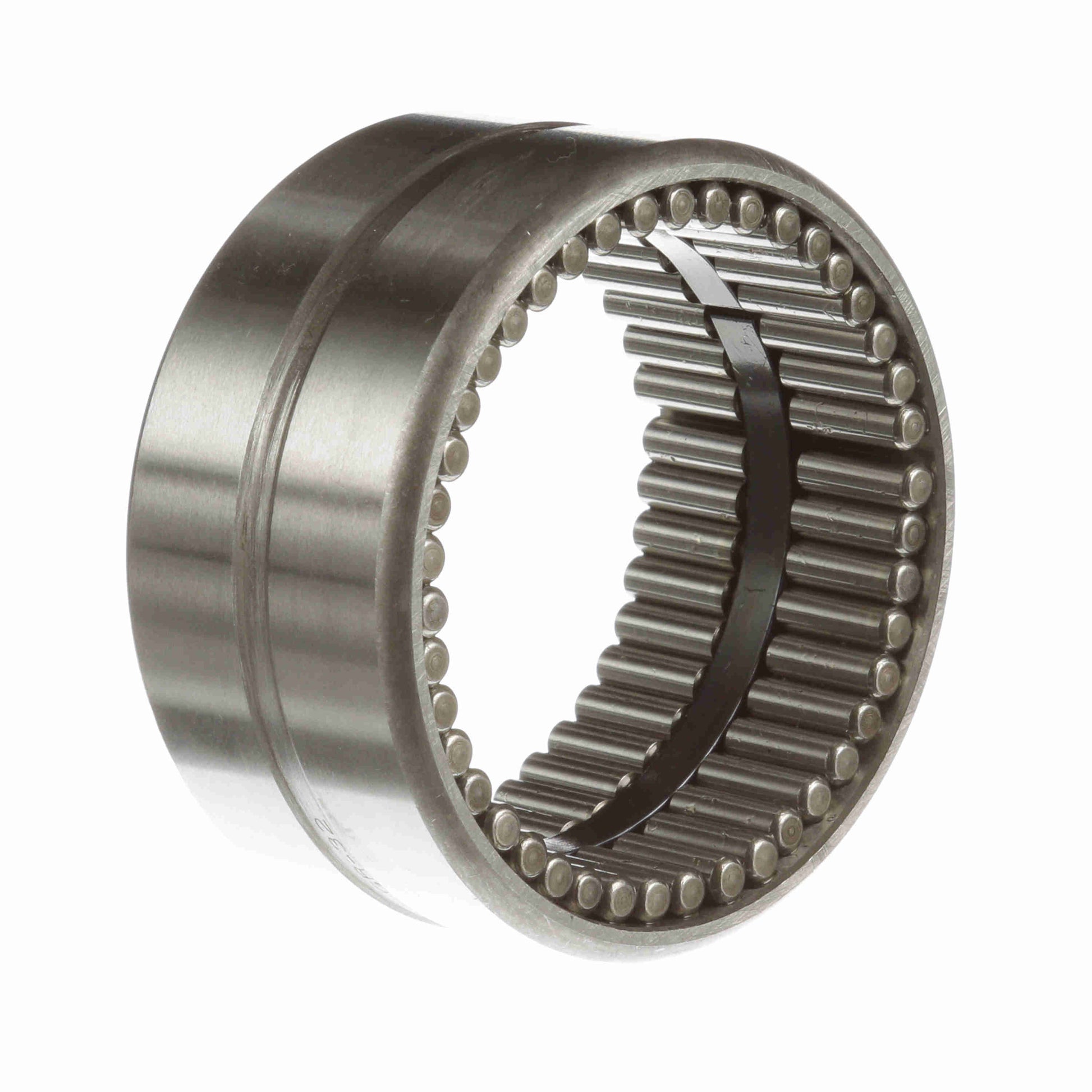

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - GR 32
General Specifications
| UPC: | 726166062408 | Weight: | 0.60 LB |
| Packaged Length: | 2.8 Inches | Packaged Width: | 2.6 Inches |
| Packaged Height: | 1.4 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 2.5625 in |
| Housing & Shaft Fillet (in): | 0.06 in | Bore Size - Inch: | 2 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | No retainer |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Seal Type: | Unsealed | Misalignment: | No |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Sealed: | None | Platform: | Guiderol Bearing |
| Full Complement/Caged: | Full Complement | Duplexing: | No |
| Speed (Max) Grease: | 1,500 | Dynamic Load Rating: | 10,250 |
| Static Load Rating (lb): | 36,700 lb | Speed (Max) Oil: | 3,000 |
| Flanges: | No flange | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Related Inner Ring: | MI 26, MI 27 | Component Type: | Outer race only |
| Enclosure: | Open | Separable: | Nonseparable |
| Retainer: | No |
