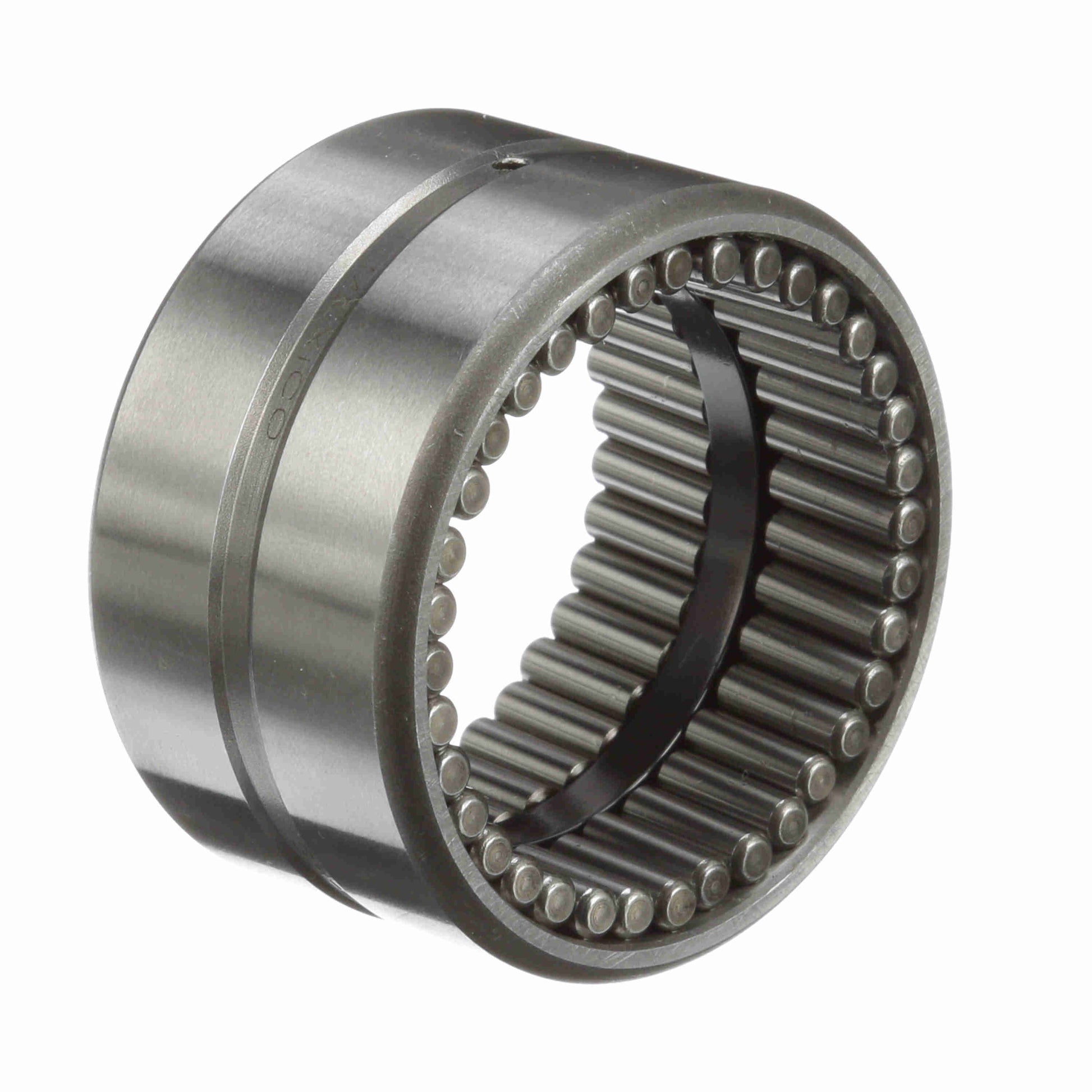

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 26
General Specifications
| UPC: | 726166062118 | Weight: | 0.51 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 2.1875 in |
| Housing & Shaft Fillet (in): | 0.06 in | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.6250 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Radial Clearance: | Normal | Misalignment: | No |
| Speed (Max) Oil: | 3,700 | Sealed: | None |
| Speed (Max) Grease: | 1,850 | Full Complement/Caged: | Full Complement |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Static Load Rating (lb): | 29,800 lb | Dynamic Load Rating: | 7,500 |
| Flanges: | No Flanges | Related Inner Ring: | MI 22 4S |
| Standard Met: | ABMA, ISO | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication Groove & Hole | Precision Rating: | RBEC-1 |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | No |
