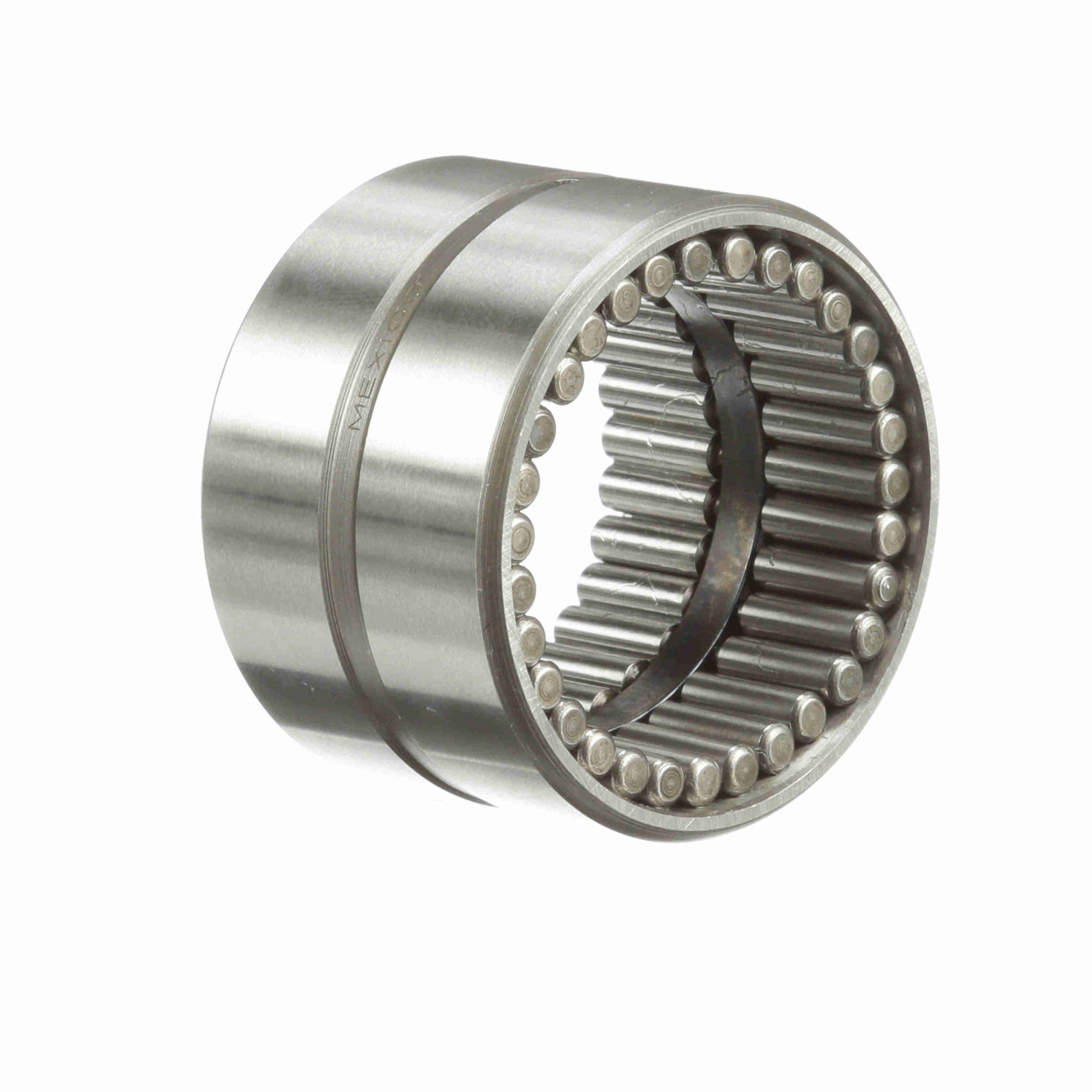

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 22
General Specifications
| UPC: | 726166061906 | Weight: | 0.37 LB |
| Packaged Length: | 2.2 Inches | Packaged Width: | 1.9 Inches |
| Packaged Height: | 1.4 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 1.875 in |
| Housing & Shaft Fillet (in): | 0.04 in | Bore Size - Inch: | 1.3750 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Seal Type: | Unsealed | Radial Clearance: | Normal |
| Bore Type: | Straight | Misalignment: | No |
| Speed (Max) Oil: | 4,400 | Platform: | Guiderol Bearing |
| Full Complement/Caged: | Full Complement | Duplexing: | No |
| Speed (Max) Grease: | 2,200 | Sealed: | None |
| Dynamic Load Rating: | 9,050 | Static Load Rating (lb): | 25,500 lb |
| Flanges: | No flange | Lubrication Hole Type: | Lubrication groove and hole |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 17 | Separable: | Nonseparable |
| Enclosure: | Open | Component Type: | Outer race only |
| Retainer: | No |
