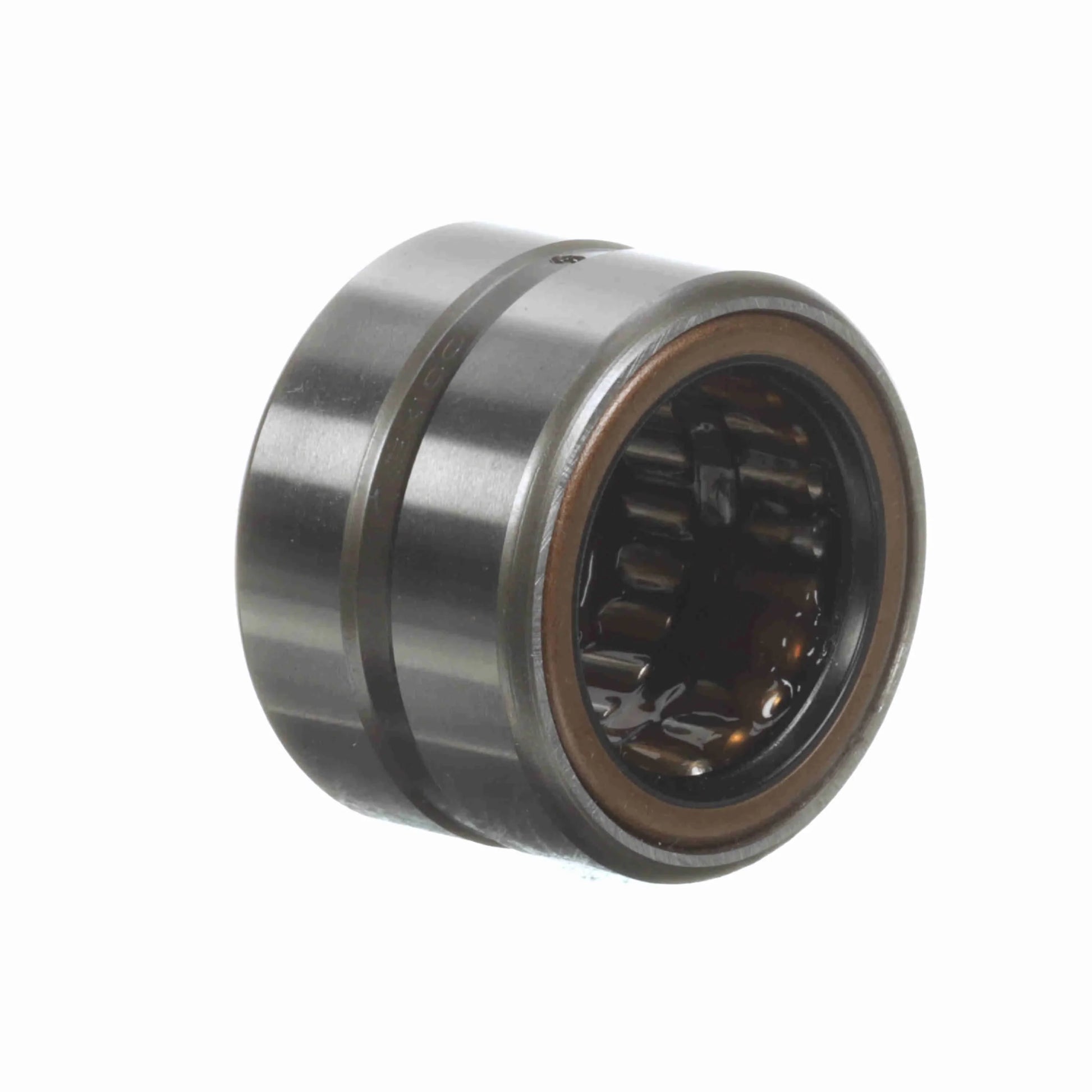

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 16 SRS
General Specifications
| UPC: | 726166061593 | Weight: | 0.25 LB |
| Packaged Length: | 2.3 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 1.5 in |
| Bore Size - Inch: | 1 in | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.079 |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Misalignment: | No | Radial Clearance: | Normal |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Platform: | Guiderol Bearing | Static Load Rating (lb): | 9,600 lb |
| Sealed: | Sealed - Both Sides | Duplexing: | No |
| Dynamic Load Rating: | 4,350 | Speed (Max) Oil: | 3,800 |
| Full Complement/Caged: | Full Complement | Speed (Max) Grease: | 1,900 |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 12 |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication groove and hole |
| Flanges: | No flange | Enclosure: | Sealed Both Sides |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | No |
