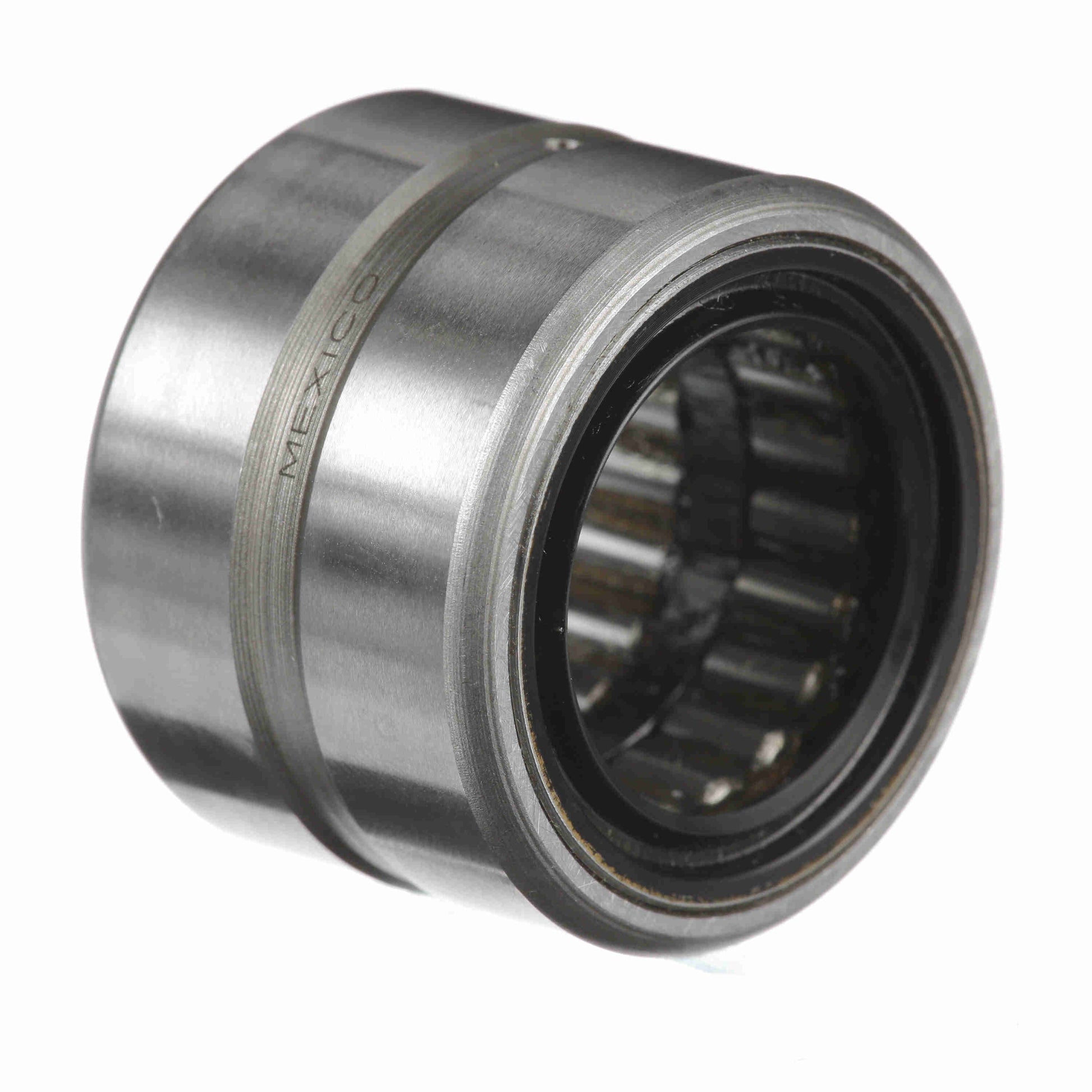

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - Sealed - GR 14 RSS
General Specifications
| UPC: | 726166061517 | Weight: | 0.19 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Hole Diameter: | 0.079 |
| Housing & Shaft Fillet (in): | 0.04 in | Bore Size - Inch: | 0.8750 in |
| Outside Diameter - Inch: | 1.375 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Bore Type: | Straight | Number of Rows: | 1 |
| Radial Clearance: | Normal | Seal Type: | Rubber Lip |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Sealed: | Sealed - Both Sides | Static Load Rating (lb): | 8,400 lb |
| Speed (Max) Grease: | 4,400 | Dynamic Load Rating: | 4,150 |
| Duplexing: | No | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 10 |
| Operating Temperature Range: | -20 to 250 °F | Flanges: | No Flanges |
| Standard Met: | ABMA, ISO | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | No |
