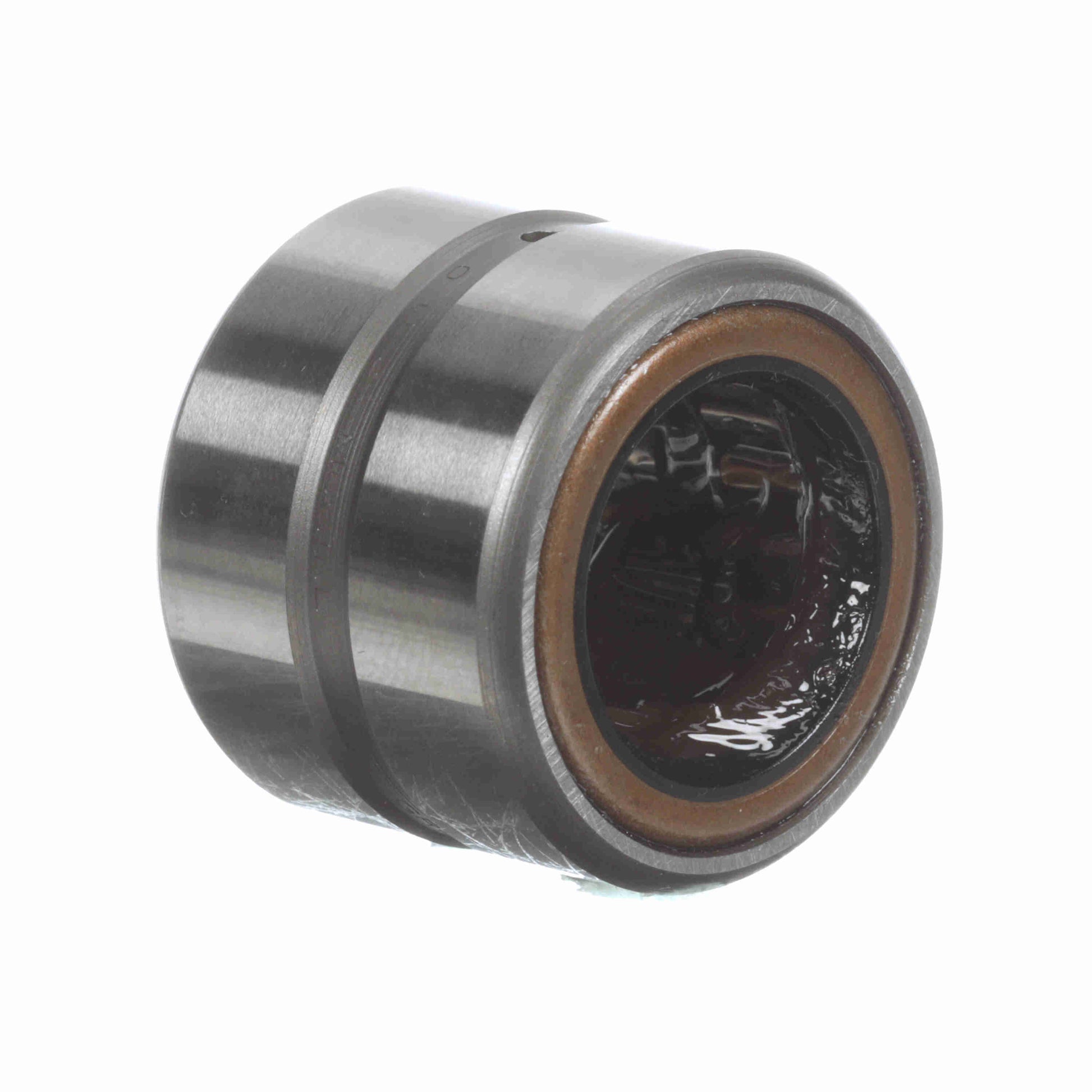

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 12 SRS
General Specifications
| UPC: | 726166061333 | Weight: | 0.19 LB |
| Packaged Length: | 1.8 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 2.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 1.25 in |
| Housing & Shaft Fillet (in): | 0.04 in | Hole Diameter: | 0.079 |
| Bore Size - Inch: | 0.7500 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Misalignment: | No | Number of Rows: | 1 |
| Radial Clearance: | Normal | Seal Type: | Rubber Lip |
| Sealed: | Sealed - Both Sides | Speed (Max) Grease: | 5,100 |
| Full Complement/Caged: | Full Complement | Dynamic Load Rating: | 3,700 |
| Platform: | Guiderol Bearing | Static Load Rating (lb): | 7,200 lb |
| Duplexing: | No | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 8 |
| Standard Met: | ABMA, ISO | Flanges: | No Flanges |
| Lubrication Hole Type: | Lubrication Groove & Hole | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Sealed Both Sides |
| Retainer: | No |
