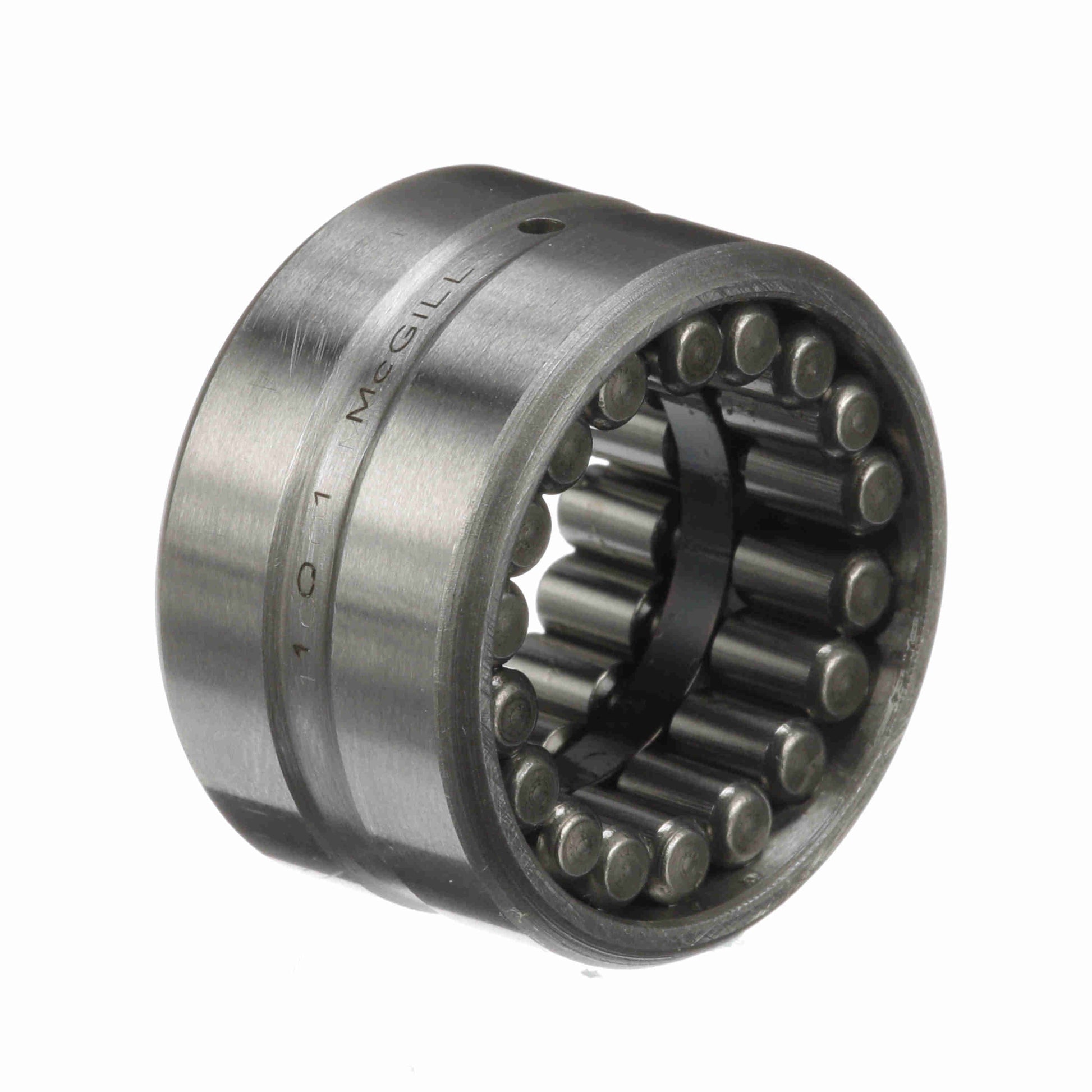

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 12 N
General Specifications
| UPC: | 726166061401 | Weight: | 0.14 LB |
| Packaged Length: | 1.9 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 1.1 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 0.75 | Outside Diameter - Inch: | 1.25 in |
| Housing & Shaft Fillet (in): | 0.04 in | Bore Size - Inch: | 0.7500 in |
| Hole Diameter: | 0.079 |
Technical Specifications
| Includes Inner Ring: | No | Series: | Narrow |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Misalignment: | No | Radial Clearance: | Normal |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Speed (Max) Oil: | 8,000 | Duplexing: | No |
| Full Complement/Caged: | Full Complement | Speed (Max) Grease: | 4,000 |
| Dynamic Load Rating: | 3,700 | Sealed: | None |
| Static Load Rating (lb): | 7,200 lb | Platform: | Guiderol Bearing |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 8 N, MI 9 N |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Open | Retainer: | No |
